Swing over bed: 360mm, 400mm, 460mm, 500mm, 560mm Spindle Bore: 80mm(D8)
Products introduction of Conventional Manual Lathe
One piece bed, floor type casting
2 Shear bed way with extra way supporting the apron
All ways are hardened and ground
Alloy steel spindle with opposed taper roller bearings
Hardened and ground gears, shafts and cross slide ways
Independent spindle design
Parameter of Conventional Manual Lathe
Item | Unit | Q1325G | Q1313G |
Swing over bed | mm | 630 | 500/400 |
Swing over carriage | mm | 350 | 330/230 |
Guideway width | mm | 550 | 360 |
Spindle bore | mm | 250 | 130 |
Max. OD of workpiece | mm | 245 | 125 |
Max. Turning length | mm | As request | As request |
Max. Working speed | mm | 15-450 | 15-450 |
Toolpost position | 4 position | 4 position | |
Guideway hardness | HRC52 | HRC52 | |
Main spindle power | kW | 7.5kW | 5.5kW |
Chuck O.D. | mm | 500 | 320 |
X/Z feeding | Manual feeding | Manual feeding | |
X travel | mm | 350 | 320/180 |
Z Travel | mm | 1000+ | 1000+ |

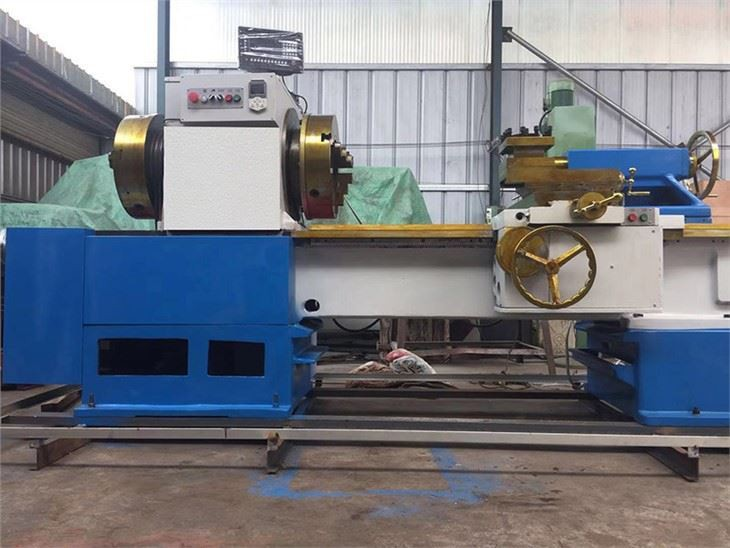

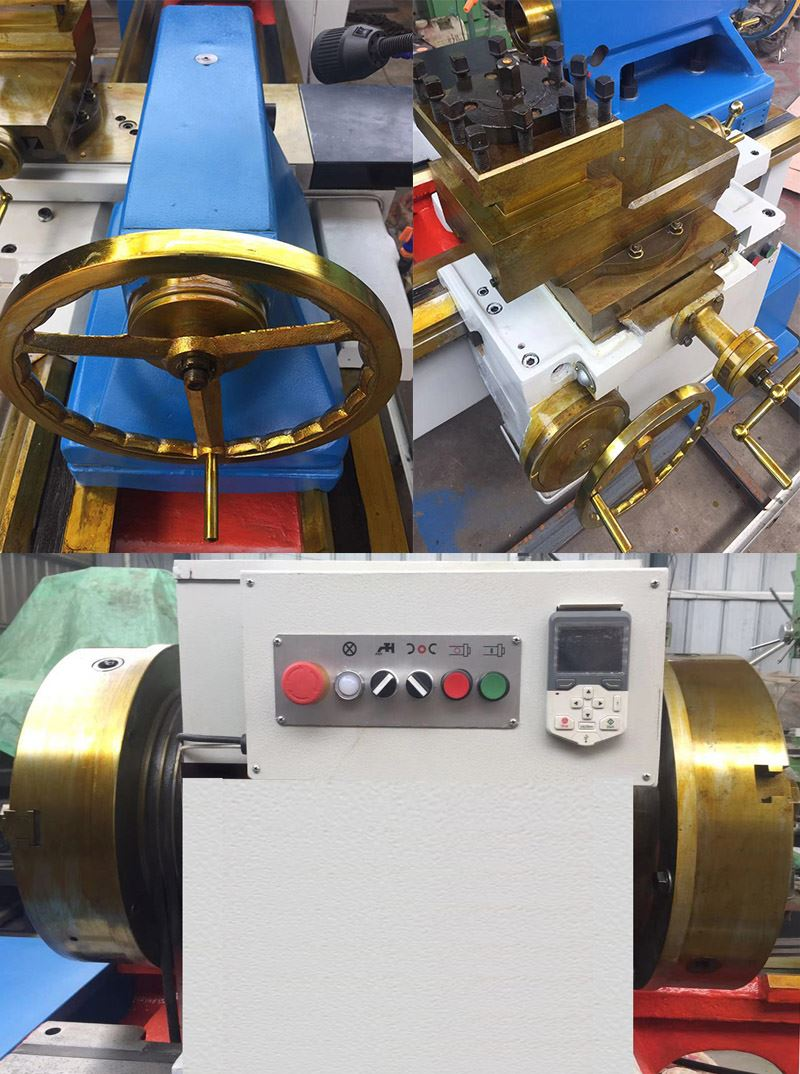

Details of Drive Shaft Lathe Machines
