Including Model CK6150V,CK6150D,CK6150 CK6140V,CK6140D,CK6140

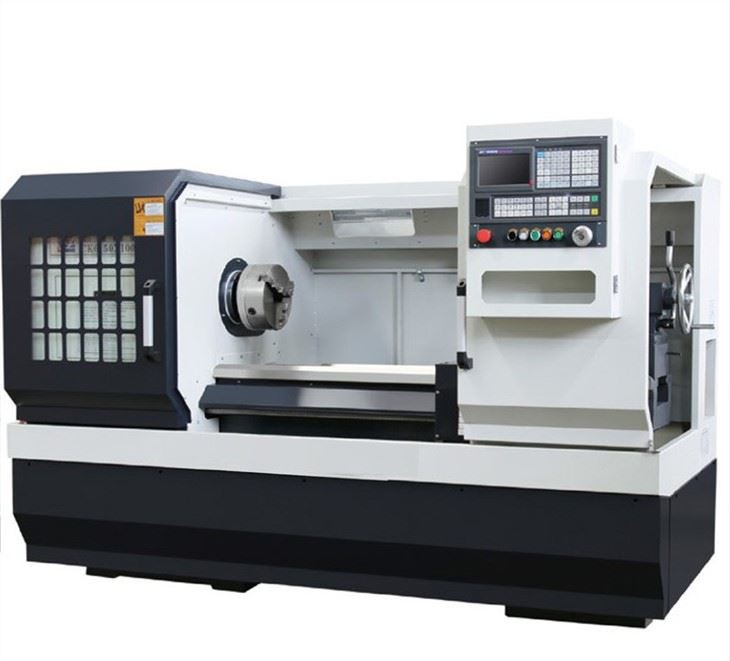

Introduction of CNC Turning Lathe
CNC Automatic Lathe Machine is the oldest turning model, which has been widely used in the industrial field. The horizontal feature makes the lathe easy to use and maintain, and its convenience and structural advantages, making it easier to adjust, are widely used in various fields. Therefore, for users, there is no better standard answer in the horizontal or vertical direction, but only the application field.
Feature of CNC Turning Lathe

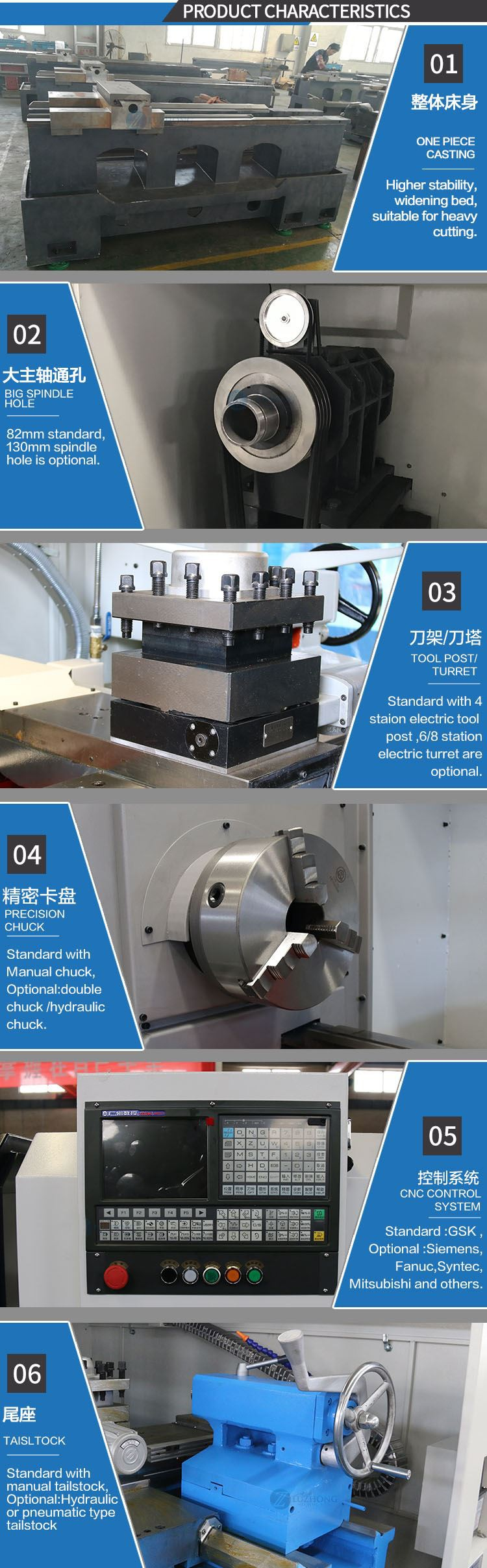

High Speed
High spindle Torque
Big Spindle Bore
Automatic Forced Lubrication
Hardened and Ground Guideways
Brand-New Design Eterior
CE Certificate of TUV Rheinland, Germany ISO9001 CQC, China
Configuration of CNC Turning Lathe
Standard Configuration | Option Configuration |
Guideway width: 400mm | Hydraulic chuck |
One piece casting | Electric turret 6/8 position |
Independent spindle | Hydraulic tailstock |
3-jaw manual chuck | Double chuck as optional |
Electric 4 position | Manual 3 steps as optional |
Specification of CNC Turning Lathe---One piece casting
SPECIFICATIONS | Units | CK6140V | CK6140D | CK6140 |
Swing over bed | mm | 400 | 400 | 400 |
Swing over cross slide | mm | 240 | 180 | 210 |
Distance between centers | mm | 500/750/1000 | 750/1000/1500/2000 | 750/1000/1500/2000 |
Spindle bore | mm | 48(Opt.: 82) | 52 | 52(Opt. 80) |
Spindle bore taper | - | MT6 | MT6 | MT6 |
Spindle nose type | - | A2-6(Opt.: A2-8) | C6 | C6 |
Spindle speed steps | - | Stepless | Manual 2 steps | Manual 2 steps(Optional: stepless) |
Spindle speed range | rpm | 150-2000(Opt.: 150-1800) | L:70-700 H:160-1600 | L:100-500 H:500-1800 (Optional 90-1800) |
Turret/tool post | - | Electric 4 position | Electric 4 position | Electric 4 position |
Tool size | mm | 20 x 20 | 20*20 | 25*25 |
X axis travel | mm | 280 | 230 | 280 |
Z axis travel | mm | 750/1000 | 750/1000/1500/2000 | 750/1000/1500/2000 |
X axis rapid traverse | mm/min | 8000 | 6000 | 6000 |
Z axis rapid traverse | mm/min | 10000 | 8000 | 8000 |
Tailstock quill diameter | mm | Φ60 | 65 | 65 |
Tailstock quill taper | - | MT4 | MT4 | MT4 |
Tailstock quill travel | mm | 100 | 140 | 130 |
Main spindle motor | kw | 5.5(Opt.: 7.5) | 4 | 5.5 |
Coolant pump motor | kw | 0.09 | 0.125 | 0.09 |
Weight for 550 | kg | 1700 | ||
Weight for 750 | kg | 1800 | 1700 | 1800 |
Weight for 1000 | kg | 2000 | 2000 | 1900 |
Dimension for 500 | mm | 2000x1300x1650 | ||
Dimension for 750 | mm | 2250x1300x1650 | 2200*1600*1700 | 2200*1650*1700 |
Dimension for 1000 | mm | 2500x1300x1650 | 2500*1600*1700 | 2500*1650*1700 |
SPECIFICATIONS | Units | CK6150V | CK6150D | CK6150 |
Swing over bed | mm | 500 | 500 | 500 |
Swing over cross slide | mm | 250 | 250 | 260 |
Distance between centers | mm | 1000/1500/2000 | 750/1000/1500/2000 | 750/1000/1500/2000 |
Spindle bore | mm | 82 (Opt. 130) | 52 | 52(Opt. 80) |
Spindle bore taper | - | Metric 90/1:20 | MT6 | MT6 |
Spindle nose type | - | A2-8(Opt.A2-11) | C6 | C6 |
Spindle speed steps | - | Stepless | Manual 2 steps | Manual 2 steps(Optional: stepless) |
Spindle speed range | rpm | 1800 (Opt. 800) | L:70-700 H:160-1600 | L:100-500 H:500-1800 (Optional 90-1800) |
Turret/tool post | - | Electric 4 position | Electric 4 position | Electric 4 position |
Tool size | mm | 25 x 25 | 20*20 | 25*25 |
X axis travel | mm | 300 | 300 | 280 |
Z axis travel | mm | 750/1000 | 750/1000/1500/2000 | 750/1000/1500/2000 |
X axis rapid traverse | mm/min | 6000 | 6000 | 6000 |
Z axis rapid traverse | mm/min | 10000 | 8000 | 8000 |
Tailstock quill diameter | mm | Φ60 | 65 | 65 |
Tailstock quill taper | - | MT5 | MT4 | MT5 |
Tailstock quill travel | mm | 200 | 140 | 130 |
Main spindle motor | kw | 7.5 | 5.5 | 5.5 |
Coolant pump motor | kw | 0125 | 0.125 | 0.09 |
Weight for 550 | kg | 1700 | ||
Weight for 750 | kg | 1700 | 1900 | |
Weight for 1000 | kg | 2000 | 2000 | 2000 |
Dimension for 500 | mm | |||
Dimension for 750 | mm | 2200*1600*1700 | 2200*1700*1750 | |
Dimension for 1000 | mm | 2950*1700*1800 | 2500*1600*1700 | 2500*1700*1750 |
