Automatic Lathe Machine

Introduction of Automatic Lathe Machine

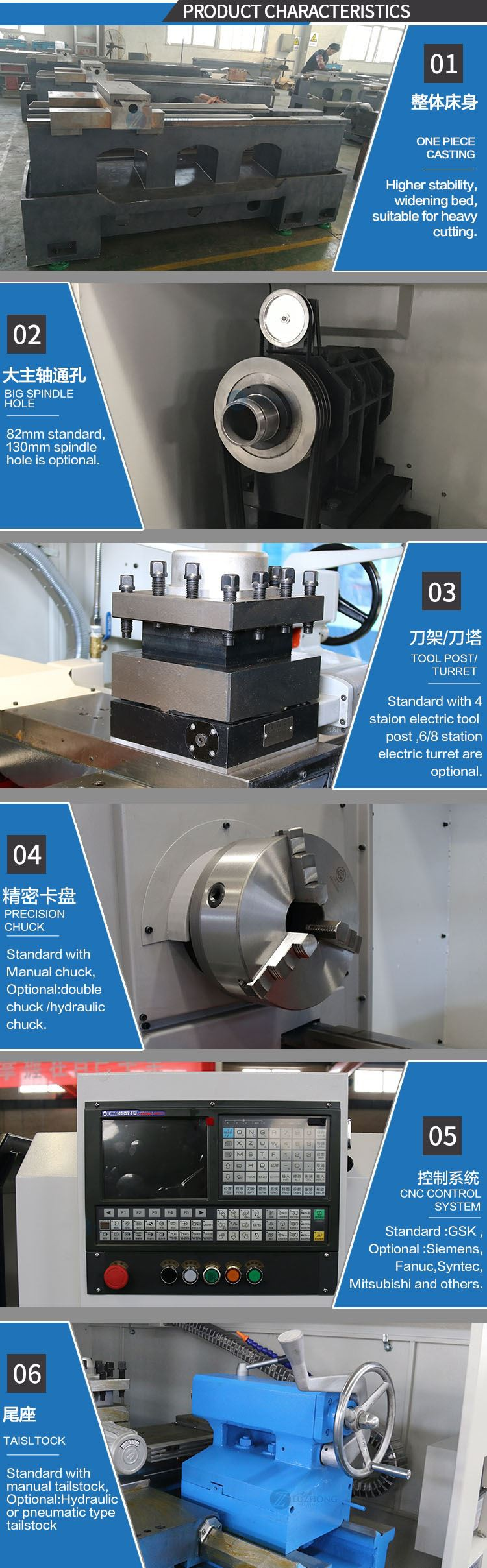

1. Big torque, high precision spindle;

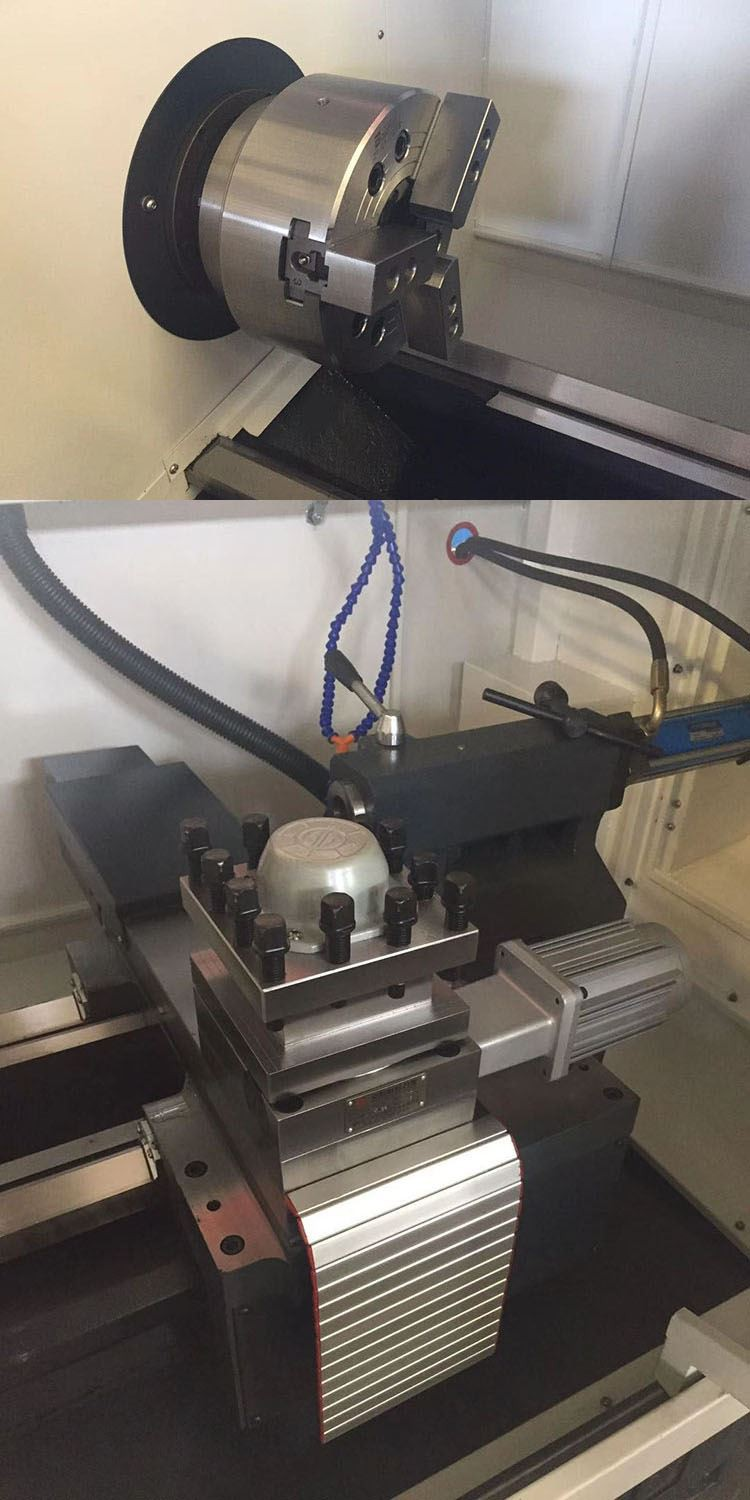

2. Hydraulic chuck, easy to operate;(Optional)
3. Z-Axis feed is directly connected which has high transmission accuracy and high positioning accuracy;
4. Vertical 4-position electric tool post with high positioning accuracy; Shank size: 25x25mm. Optional six-station electric knife
5. The machine is made of high strength cast iron with special material of copper and chrome. The width of bed guide is 400mm, the firing depth of bed guide rail is 4mm, which improves the abrasion resistance and stability of the machine.
6. X-axis and Z-axis feed movement are servo motor drive precision ball screw to achieve fast-forward and feed movement. The machine adopts the Hanjiang ball screw, Z-axis ball screw(Dia.50mm), X-axis(Dia.25mm) ball screw with tensile structure, improve the accuracy of the workpiece machining cylindrical and bore size
7. Using Chinese famous brand Wafangdian bearings, spindle hole 80MM, the machine uses belt-driven stepless transmission, reducing machine noise and vibration
8.Machine use ISO international standard CNC G code, while compatible with Japan Fanuc (FANUC) CNC system. Domestic mainstream programming, to facilitate the operator faster and easier to use the system.
9.The CNC system is GSK980TDC, FANUC, SIEMENS, With both horizontal and vertical structure. With 8.4-inch color LCD, can control five feed axises (including Cs axis), 2 analog spindle, the minimum order unit of 0.1μm. PLC ladder drawing showing, monitor, New function of soft keys, graphical interface design, the dialog box type operation, friendly man-machine interface
10. Version in Chinese, English, Spanish, Russian, Portuguese are available .With more function of system time and warning log .
11.System program with 40M, 384 program , editing function: index, modify, and delete
12.Program form: ISO CODE, support editing working including
13.Macro programming statements type, support the relative coordinates, the absolute coordinate and hybrid coordinate programming;
16.Systems support RS232 interface: parts program, two-way transmission parameters such as files, support for PLC program, the system software upgrade serial and USB interface: U disk file operations, U disk file processing, directly support the PLC program, USB system software upgrade.

Specification of Automatic Lathe Machine---One piece casting
