Feature of Automatic Generator Rotor Balancer 1.Manual loading or unloading 2.Can meet multi-angle weight-removing requirement 3.Rigid structural design longer service life 4.Belt-drive modelhigher accuracy and greater convenience 5.New iteration 900 electric measuring system with 12inch touch...
| Quantity: | |
|---|---|

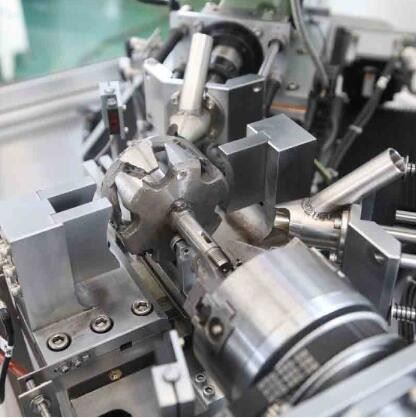

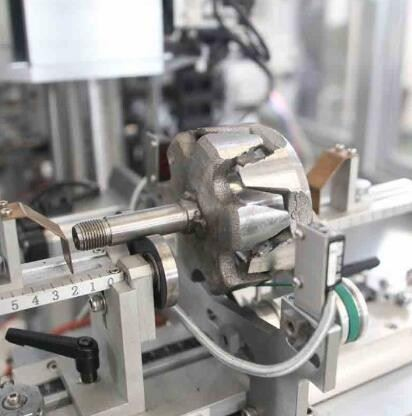

Feature of Automatic Generator Rotor Balancer
1.Manual loading or unloading
2.Can meet multi-angle weight-removing requirement
3.Rigid structural design longer service life
4.Belt-drive modelhigher accuracy and greater convenience
5.New iteration 900 electric measuring system with 12inch touch screen
6.Man-machine interface can memorize the production capacity and real-time production information
7.Special balancing machine used for generator rotorcan eliminate the unbalance caused by processing and assembly errorsreduce vibration caused by unbalance
Specifciations of Automatic Generator Rotor Balancer

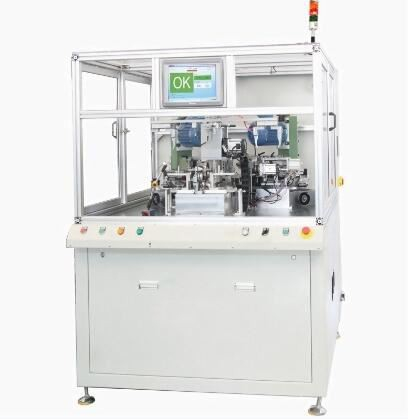

Generator Rotor Drilling Two-Station Automatic Balancing Machine
Technical data at a glance | SFWZ9 |
Max Weight of Workpiece (kg) | 5 |
Max Diameter of Workpiece (mm) | 40-120 |
Rotor Stack Thickness (mm) | 30-120 |
Journal Diameter (mm) | φ8-34 |
Balancing Speed (r/min) | ,≤2500 |
Balancing Motor Power (kw) | 0.4 KW Servo Motor |
Min Achievable Residual Unbalance Amount (g.mm/kg) | ≤0.3 |
Testing Time (second) | 8-12 |
Reduction Rate of Unbalance | ≥90% |
Working Pressure (MPa) | 0.4-0.6 |
Operating Voltage (V) | AC: 380V external |
Weight-Removing Method | Drilling |
Drilling Power (kw) | 0.75 |
Balancing Machine Type | Soft Bearing Measuring Bracket |
Machine Power (kw) | 6.75 |
Average Machine Consumption(l/min) | 60 |
Protection | Phase sequence protection, overload protection, pressure monitoring |
Strict Product Quality Control
Company Certificates:
