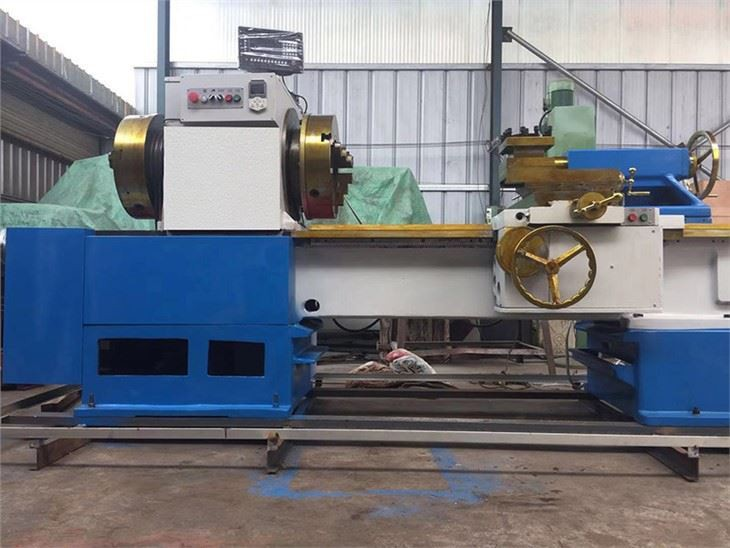

Product Introduction of CV Axle Lathes
1. Q1325G CV Axle Lathes is designed for CV axis specially in China, it has independent spindle, ON/OFF button can control the lathe start and stop.
2. Converter can set spindle speed within main motor speed.
3. Harden and strength guideway and bed make work steady.
4. DRO, Coolant system, working light are equipped.
Parameter of CV Axle Lathes
We can manufacture other size eg: swing over bed 400, 500mm.
Item | Unit | Q1325G | Q1313G |
Swing over bed | mm | 630 | 500/400 |
Swing over carriage | mm | 350 | 330/230 |
Guideway width | mm | 550 | 360 |
Spindle bore | mm | 250 | 130 |
Max. OD of workpiece | mm | 245 | 125 |
Max. Turning length | mm | As per request | As per request |
Max. Working speed | mm | 15-450 | 15-450 |
Toolpost position | 4 position | 4 position | |
Guideway hardness | HRC52 | HRC52 | |
Main spindle power | kW | 7.5kW | 5.5kW |
Chuck O.D. | mm | 500 | 320 |
X/Z feeding | Manual feeding | Manual feeding | |
X travel | mm | 350 | 320/180 |
Z Travel | mm | 1000+ | 1000+ |

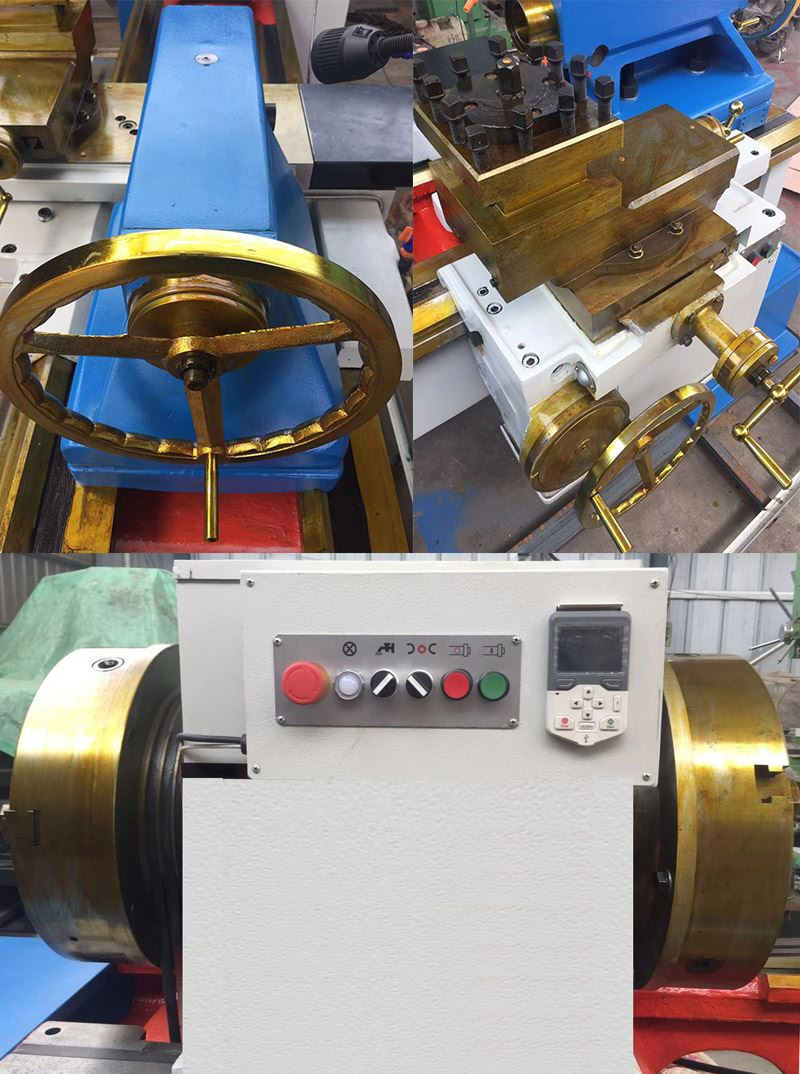

Details of CV Axle Lathes
