Production introduction of Heavy Duty Lathe:
1. The lathes can perform to turn end-faces, cylindricl surfaces and internal holes of various parts as well as metric,inch,module and pitch threads.The top slides can be operated individually by power for cutting short taper surface. Long taper surface can be turned automatically through the compound movement combining longitudinal feed of the carriage with the top slide feed,moreover,the machines may be used for drilling,boring and trepanning.
2. They are characteristics of power,high spindle speed,high rigidity.The various ferrous and non-ferrous metals parts may be turned through the heavy cutting by carbon alloy tools.
Features:
1. This series heavy duty lather adopts 970mm wide rectangular induction hardened and ground bed guide ways, so of excellent stability, high rigidity, and with max. bearing 10tons between centers.
2. The main spindle is of precision roller bearing 3-point supporting structure
3. Saddle guide ways with Teflon belt coated, rotating tailstock quill structure to minimize friction and heat generation.
4. The machine are suitable for various turning works, such as turning of external and internal cylindrical surfaces, end faces, and turning of metric or inch threads, modular threads and diametrical pitch threads, etc.
5. Motorized short taper turning could be done by the top slide independently, and long taper's motorized turning could be done by top slide combined with longitudinal feed.
6. Further more, these lathes can also carry out drilling, trepanning and boring processes, etc.
Standard Accessories:
4jaw chuck, Steady rest,Follow rest, 4 positions tool post, Dead center, Manual tailstock, Center sleeve, Coolant system, Work light, General tools, Foundation bolts and screws, Operation manual(English edition), etc.
Optional items:
**Big center rest
**Big center bracket
**Motor driven tailstock and tailstock with rotary quill
**Chuck guard, tool post shield, cable carrying chain
Products Specification of Heavy Duty Lathe
For swing over bed: 1600, 1800, 2000mm, please contact us for more info.
Item | Unit | CW61100 | CW61125 | CW61140 |
Swing over bed | mm | 1000 | 1250 | 1400 |
Swing over cross slide | mm | 615 | 860 | 1010 |
Wdith of guideway | mm | 755 | ||
Loading weight | Kg | 6000-20000 | ||
Distance between center | mm | 1000/1500/2000/3000/4000/5000-10000 | ||
Max. workpiece through spindle | mm | 128 | ||
Spindle bore | mm | 130 | ||
Taper of spindle bore | Metric 140 | |||
Range of spindle speed | r/min | Clockwise: 21kinds 3.15-315 | ||
r/min | Anti Clockwise: 12kinds 5-400 | |||
Step of feed | kinds | 56 kinds | ||
Longitudinal feed range | 0.1-12mm/r | |||
Cross to longitudinal feed rate | 0.05-6mm/r | |||
Carriage rapid moving feed rate | m/min | 0.025-3mm/r | ||
Metric threads range | mm | 43 1-120mm | ||
Inch threads range | mm | 29 28-3/8teeth/inch | ||
Module threads range | mm | 45 0.5-60mm | ||
Pitch threads range | 1/inch | 25 1-55 | ||
Distance between center line of spindle to tool post | mm | 48 | ||
Section of tools shank | mm | 45x45 | ||
Swivel anger of tool pos | ±90° | |||
Max..travel of cross slide | mm | 1450, 1950-14950 | ||
Max..travel of top slide | mm | 520/750 | ||
Rapid travel speed | mm | Longitudinal:3740mm/min | ||
Cross: 3740mm/min | ||||
Slide | ||||
Center quill diameter and travel | mm | 140, 300 | ||
Tailstock quill taper | mm | Metric 80 | ||
Main motor power | kW | 22 | ||
Motor rotation speed | r/m | 1470 | ||
Slide rapid motor pwer | kW | 1.5 | ||
Coolant motor power | kW | 0.15 | ||
Coolant pump flow | L/M | 45 | ||
Manufacturing facilities of Heavy Duty Lathe

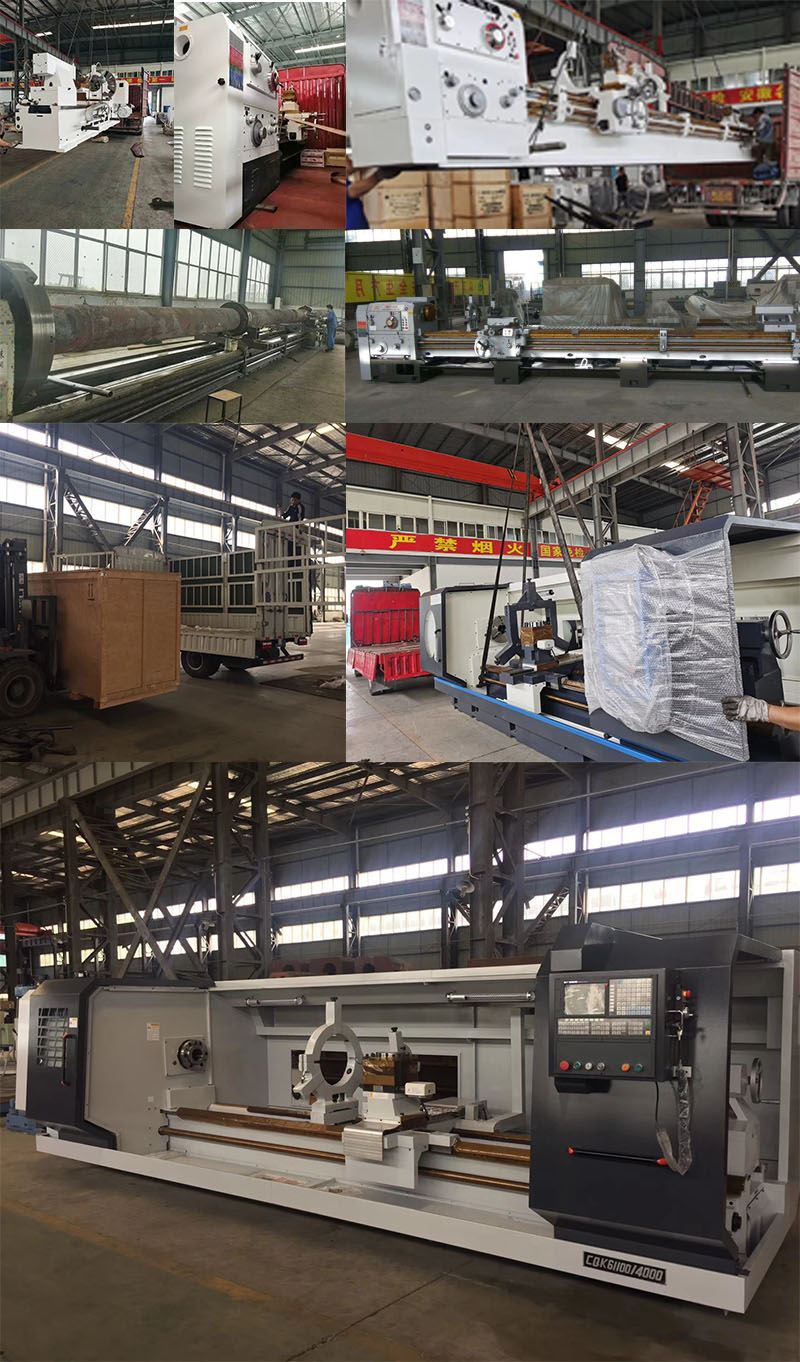

Glance of workshop of Heavy Duty Lathe
Package and Shipping of Heavy Duty Lathe
