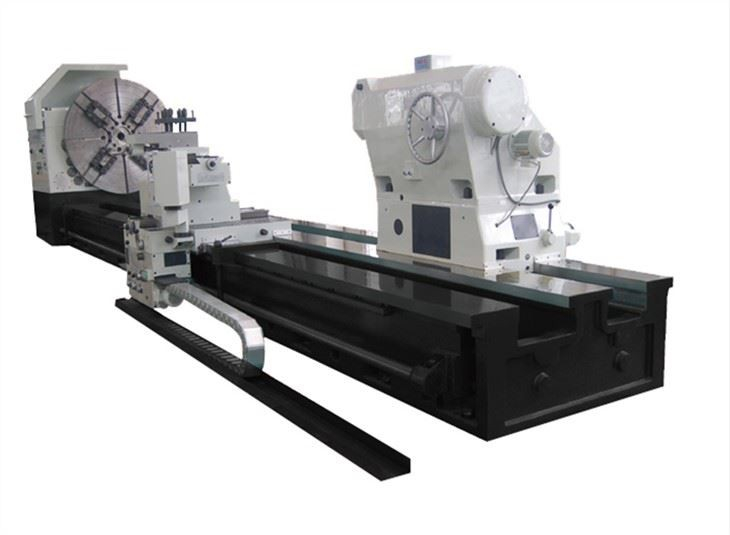

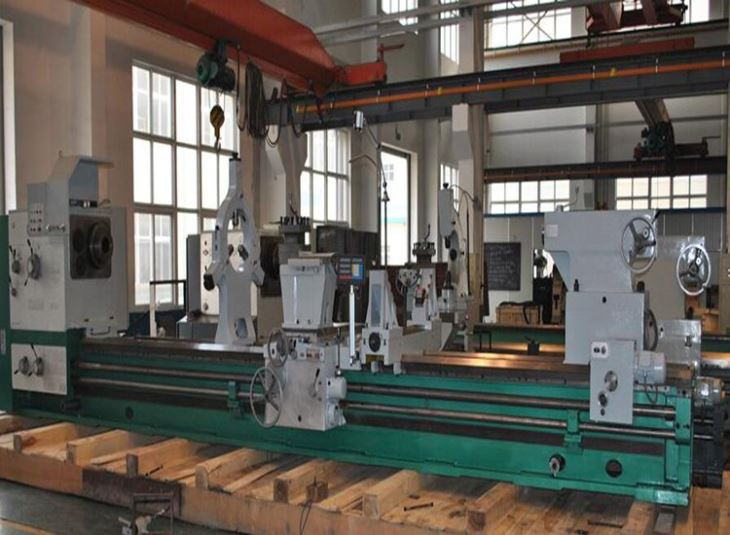

Heavy Duty Horizontal Conventional Lathe

Introduction of Heavy Duty Horizontal Conventional Lathe

1. CW Universal metal horizontal engine lathe machine is suitable for all kinds of turning work, such as turning inside and outside cylindrical surface, conical surface, other turning surface, end face, but also processing a variety of commonly used threads - such as metric, inch, modulus, diameter thread and drilling, Tapping, tipping trunking and so on.

2. The machine can be processed steel, cast iron and non-ferrous metals and other materials. When the machine is finished, the roundness error is not more than 0.01mm, the cylinder degree error is not more than 0.04mm in the measuring length of 300mm; the torsion plane bed, the high quality cast iron is carefully manufactured and the induction hardening of the guide surface is precision, Bed width of 600mm; by the Teflon rail flexible rail composed of rails wear-resistant, vibration absorption, precision retention is good; spindle with three support structure, high rigidity, high precision, can be strong cutting. Spindle through the hole for the 100mm large hole; 18 wide speed range, you can choose a more reasonable speed; can be directly turning metric and inch thread; slide box has a fast moving body.

3. This machine can undertake a variety of turning workpiece, it can turning the various parts of the outer circle, inner hole, end and metric thread, Whitworth, module thread and pitch diameter of the thread forming surface; in addition, you can also meet drilling, every hole, sets and other materials process requirements. It can also be used in hard cutting tool for powerful cutting, processing a variety of ferrous and non-ferrous metals.
4. The width of the side wall of the double bed ribs, inner ribs with box and diagonal reinforcement integral bed structure, high integral rigidity.
The machine has the advantages of high power, high speed, low noise, strong rigidity, high precision and good accuracy. It also has the advantages of easy operation, flexible operation, convenient operation, safe and reliable. In addition, the machine tool used in the production of brand-name manufacturers of AC frequency conversion speed control device, the four gear stepless speed control, in the original ordinary lathe based on the increase of the working accuracy, stable and reliable.
5. This machine tool is driven by AC variable frequency speed regulation motor. After sliding gear, I realized that I, II, III, IV four gear shift frequency conversion speed control, which has good torque characteristics and functional characteristics, and the sliding plate has the advantages of fast movement and convenient operation.

Products Specification of Heavy Duty Horizontal Conventional Lathe

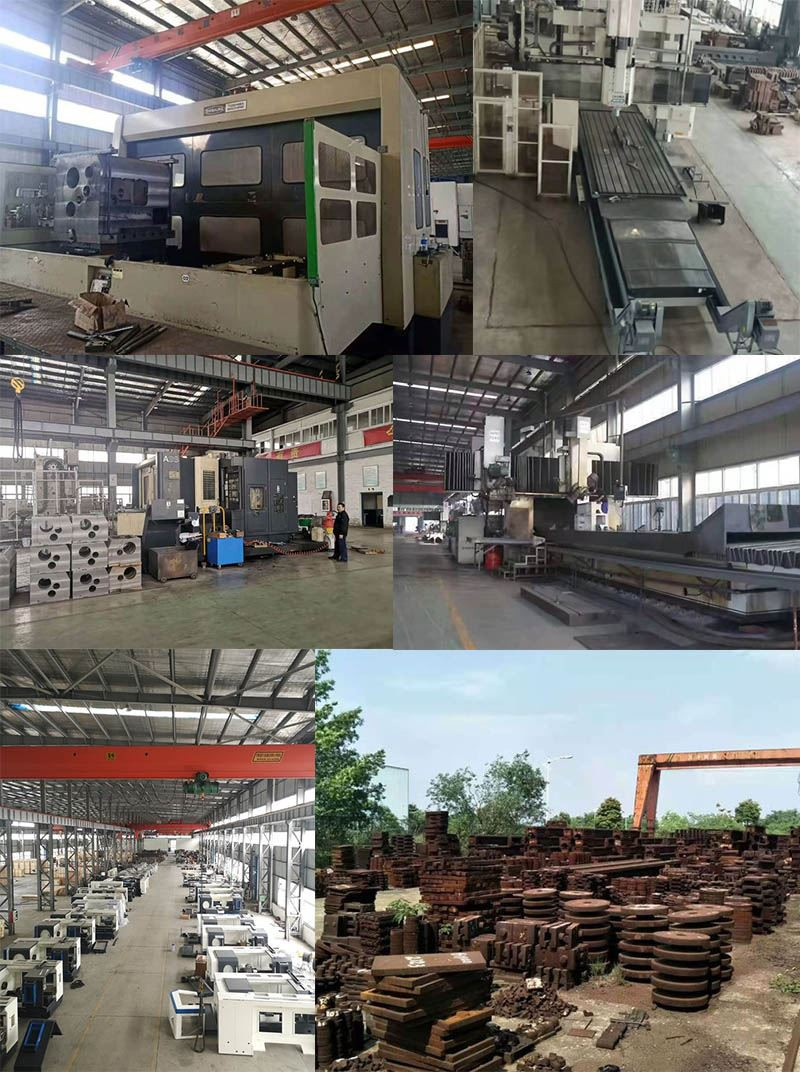

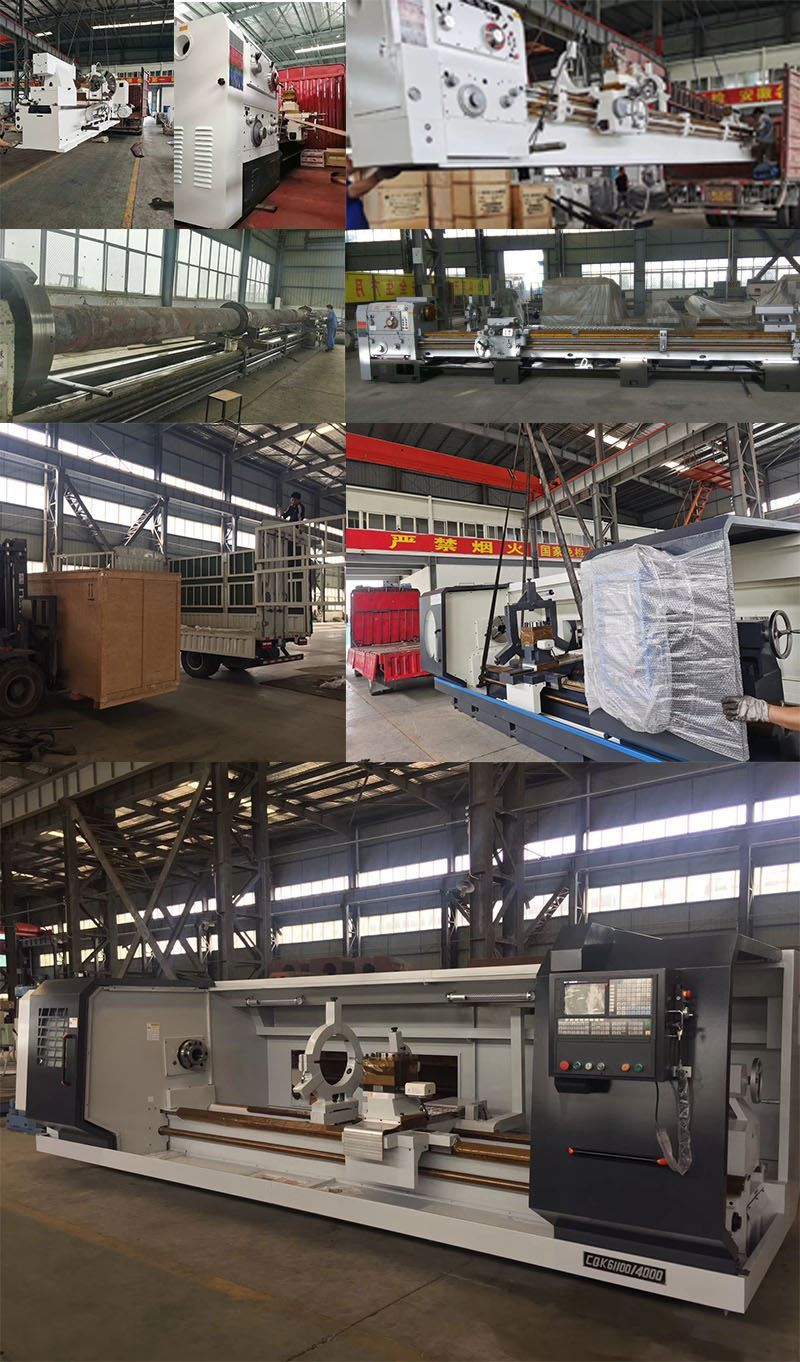

Glance of workshop of Heavy Duty Horizontal Conventional Lathe
