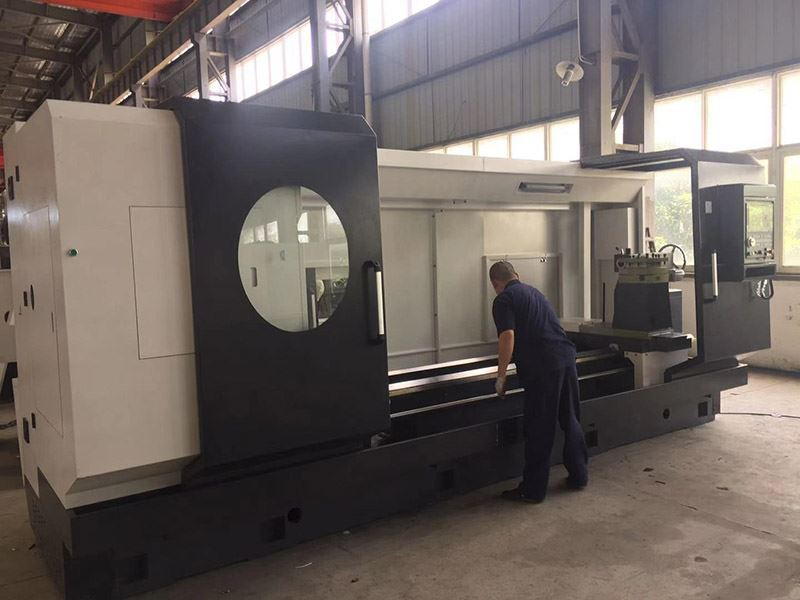

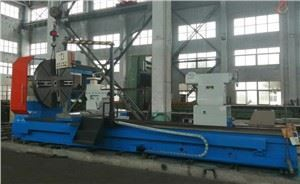

Product Introduction of CNC Heavy Duty Flat Bed Lathes
These CNC Heavy Duty Flat Bed Lathes can perform to turn endfaces ,cylindrical surfaces and internal holes of various parts as well as metric, inch ,module and pitch threads. The top slides can be operated individually by power for cutting short taper surface also. It also can be turned automatically through the compound movement combining longitudinal feed with the top slide feed. Moreover ,the machines may be used for drilling ,boring and trepanning. The are characteristics of power ,high spindle speed and high rigidity. The various ferrous and non-ferrous metal parts may be turned through the heavy cutting by carbon alloy tools.
Advantage:
Our company adopts the international advanced resin sand casting process. The castings of CNC Vertical Lathe Machine are made of HT300 and then tempered twice. The castings are tempered once before processing. The castings are subjected to secondary tempering after rough machining. The tempering is tempered to the greatest extent in the tempering kiln. Reduce the internal stress of the casting, and perform vibration aging before finishing to prevent the casting from deforming, thereby improving the accuracy of the machine tool.
Products Specification of CNC Heavy Duty Flat Bed Lathes
Item | unit | CK61100 | CK61125 | CK61140 |
Swing over bed | mm | 1000 | 1250 | 1400 |
Swing over carriage | mm | 615 | 865 | 930 |
Max. workpiece length | mm | 1000-10000 | ||
Guideway width | mm | 755 | 755 | 755 |
Spindle taper | mm | 1:120/140 | 1:120/140 | 1:120/140 |
Chuck | Four jaw 1000 | Four jaw 1000 | Four jaw 1000 | |
Spindle speed | r/min | 70-260. 25-100, 220-850 | 70-260. 25-100, 220-850 | 70-260. 25-100, 220-850 |
Spindle end structure | A2/15 | A2/15 | A2/15 | |
Spindle bore | mm | 130 | 130 | 130 |
Main motor power ( frequency conversion) | kW | 22 | 22 | 22 |
Main transmission | 4-470(FOUR STEP) | 4-470(FOUR STEP) | 4-470(FOUR STEP) | |
Center height | mm | 500 | 625 | 625 |
Min. X/Z feeding increment | mm | 0.001 | 0.001 | 0.001 |
X/Z rapid speed | mm/min | 3000/6000 | 3000/6000 | 3000/6000 |
Max. X travel | mm/min | 520 | 650 | 650 |
Toolpost postiion | V4300X300 | V4300X300 | V4300X300 | |
Toolpost position changing time | S | 4.5 | 4.5 | 4.5 |
Tool post re positioning precistion | mm | 0.005 | 0.005 | 0.005 |
Tool section | mm | 45 | 45 | 45 |
Tailstock quill diameter | mm | 160 | 160 | 160 |
Tailstock quill travel | mm | 300 | 300 | 300 |
Tailstock taper | Morse | 6# | 6# | 6# |
Machining precision | IT6-IT7 | IT6-IT7 | IT6-IT7 | |
Roughness | Ra1.6 | Ra1.6 | Ra1.6 | |
Standard configuration | Vertical four postion electric tool post | Vertical four postion electric tool post | Vertical four postion electric tool post | |
Optional congfiguration | Vertical six postion electric tool post | Vertical six postion electric tool post | Vertical six postion electric tool post | |
Re position of tool post | mm | 0.005 | 0.005 | 0.005 |
Tool section | mm | 32X32 | 32X32 | 32X32 |
CNC system | Siemens, FANUC, GSK | Siemens, FANUC, GSK | Siemens, FANUC, GSK | |

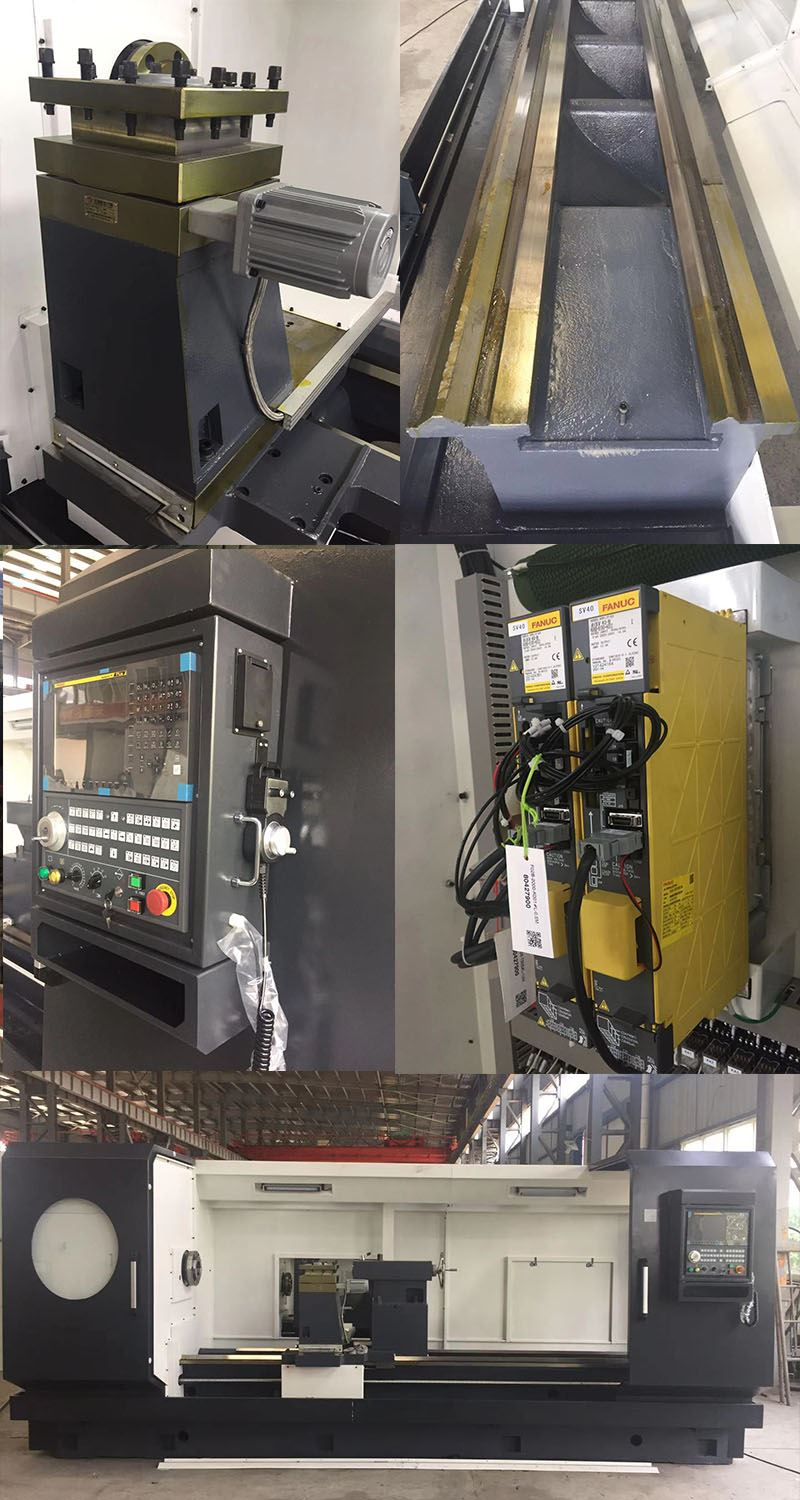

Details

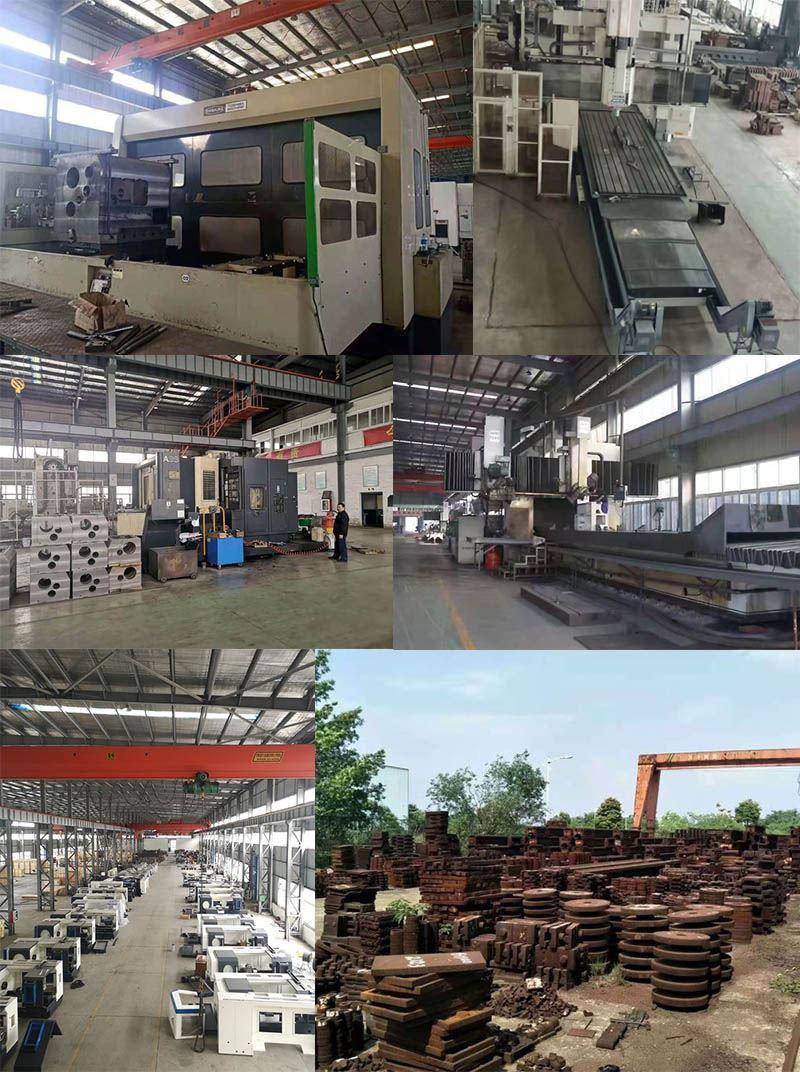

Glance of workshop
Customer View
Qiymat
Halollik: Bu sharaf tuyg'usidan kelib chiqadi va o'zini va boshqalarni hurmat qilishga asoslanadi. Odamlarni halollik bilan harakat qilishga olib boring.
Birlik: Bu insoniy qadriyatlardan biri bo'lib, odamlar o'rtasidagi o'zaro hamkorlikka qaratilgan, ayniqsa qiyinchiliklarga duch kelganda.
Mas'uliyat: Ogoh bo'lingki, biz qilayotgan yoki to'xtatgan narsa boshqalar yoki o'zimiz uchun qandaydir oqibatlarga olib kelishi mumkin.
Vaqtinchalik: shaxsiyatimizni xarakter, tartib va samaradorlik bilan berish, ishimizni yaxshiroq qilish va ishonchli bo'lishga yordam berish.
Muloqot: Bu bizga samimiy muhitda atrofimizdagi odamlar bilan fikr, fikr va his-tuyg'ularni samarali almashishga yordam beradi.
Jamoaviy ish: Biz qo'shamiz, barchamiz bir-birimizga muhtojmiz, biz bir loyiha va bir hikoyaning qahramonlarimiz, biz umumiy maqsadni ko'zlaymiz.
Halollik: boshqalarga yoki o'zingizga munosabatda bo'lishingizdan qat'i nazar, har doim adolat, halollik, haqiqat va adolat qadriyatlariga muvofiq harakat qiling.
Nima uchun bizni tanlaysiz
1. Eng yaxshi komponent
Mashina asboblarining deyarli barcha komponentlari Germaniya, Yaponiya, Amerika va taniqli Xitoy ishlab chiqaruvchisidan keladi.
2. Mijozlar
Siemens, ITT, Hanwha, CRRC, Bombardier kabi 40 dan ortiq mamlakatlarda bizning mijozlarimiz bor.
3. Barqaror texnologiya
Biz ega bo'lgan narsa - bu barqaror va uzoqroq ishlash muddatini kafolatlaydigan dastgoh asboblarini ishlab chiqarishning barqaror texnologiyasi.
4.Stricly Sifatni aniqlash
Mashina asboblarimiz sifati va aniqligi CMM, Dial indikatori va boshqalar va tajribali ishchilarimiz tomonidan qat'iy kafolatlanadi.
5. Bizning xalqimiz
Xalqimiz professional, mijozlarimizga mehribon va mehnatsevar.
