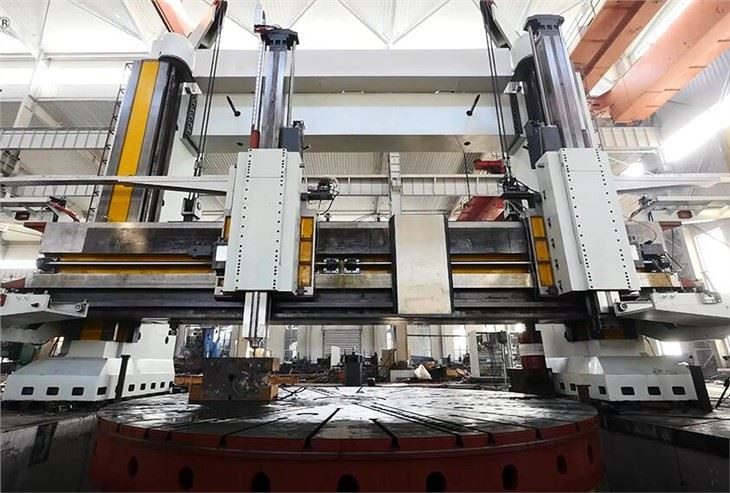

VTL Lathe

Professional VTL Lathe Manufacturer

Quantity:




Inquire Add to Basket

Product Description

Introduction of VTL Lathe

VTL Lathe is a high-tech mechanics products with high Dynamic and static rigidity, safe and reliable movement, long service life and high processing efficiency, which has adopted the advanced design and manufacturing technology both at home and abroad, implement the latest national accuracy standards, equipped advanced function units. A strong cutting of Structure Performance has been achieved.

The basic parts of this machine tool (left and right columns, beams, worktable and worktable base, etc.) are made of high-strength cast iron, resin sand technology, braised after casting, and secondary aging treatment (artificial secondary aging or vibration secondary aging) after rough machining to ensure The accuracy of the machine tool. The casting quality is reliable without cracks, pores, shrinkage holes and white mouth structure. The casting has a stable structure after simmering and secondary aging treatment to ensure that the size remains unchanged during use.

Parameter of VTL Lathe

Item	Unit	CK5225	CK5235	CK5240	CK5250	CK5263	CK5280	CK52100	CK52125
Max. Turning diameter	mm	2500	3500	4000	5000	6300	8000	10000	12500
Max. Workpiece height	mm	1600/2000 /2200	1600/2000/ 2200	1600/2000/ 2200	4000	4000	4000	4000	5500
Worktable diameter	mm	2250	2850	3150	4500	5700	7100	7500	7500
Max. Worktable weight	t	10/16	10/16/20/32	10/16/32 /40/50/63	32/40/50 /63150	63/80 /100/150	100/125/150	150/250	250
Worktable rotation step		stepless	stepless	stepless	stepless	stepless	stepless	stepless	stepless
Worktable rotation speed	r/min	2~63	2~63	2~63	0.32~32	0.32~32	0.32~32	0.2~20	0.16～16
Max. Worktable torque	KN·m	63	63	63	150	150	150	640	640
Max. Turning Torque of Tool post	KN	53	53	53	63	63	63	125
Right tool feeding range	mm/min	0.25~90	0.25~90	0.25~90	0.10~500	0.10~500	0.10~500	-	0.10~500
Right tool post rapid movement	mm/min	1550	1550	1550	4000	4000	4000	4000	4000
Left tool post rapid movement	mm/min	5000	5000	5000	4000	4000	4000	4000	4000
Left tool post feeding range	mm/min	1-2000	1-2000	1-2000	0.10~500	0.10~500	0.10~500	-	0.10~1000
Swing angle of tool post		±30º	±30º	±30º	-	-	-	-	-
Tool section	mm	40×50	40×50	40×50	280x280	280x280	280x280	80x80	100x100（Max）
Ram section	mm	-	-	-	-	-	-	320x320	400x400
Beam travel	mm	1250/1650/ 1850	1250/1650/1850/2150/2800	1250/1650/1850/2150/2800/3500	2150/2800/3000/4500	3000/3500/4500	3000/3500/4500/5000	3250/3750/4500/5000	4000/4500/ 5000
Beam lifting speed	mm/min	350	350	350	410	410	410	300	300
Main motor power	kW	55	55	55	75/90	90	90/132	132	132
Weight	t	41	45	47	200	215	-	-	465
