Swing over bed: 800mm, 1000mm, 1250mm
Introduction of Horizontal CNC Lathe Machine:
The series CNC lathe is suitable for performing internal and external turning, facing, slotting and machining of metric, module and diameter threads as well as automatic change of tool post. It can realize continuously turning and preserving machining process of many workpiece for choice. It is suitable for turning shaft, disc and sleeve workpieces, as well as small batch production and various similar workpiece with different spec. and kinds.
The series lathes have strong power with good rigidity, and of pleasing appearance with easy operation.
Feature of Horizontal CNC Lathe Machine:
1.Semi-enclosed sheet metal
Adavantage:
Our company adopts the international advanced resin sand casting process. The castings are made of HT300, and then tempered twice. The castings are tempered once before processing. The castings are subjected to secondary tempering after rough machining. The tempering is tempered to the greatest extent in the tempering kiln. Reduce the internal stress of the casting, and perform vibration aging before finishing to prevent the casting from deforming, thereby improving the accuracy of the machine tool.
Parameter of CNC Lathe Machines
Item | unit | CK6180 | CK61100 | CK61125 |
Swing over bed | mm | 800 | 1000 | 1250 |
Swing over carriage | mm | 400 | 650 | 850 |
Max. workpiece length | mm | 1000/1500/2000/3000/4000/5000/6000/7000/8000/9000/10000 | ||
Guideway width | mm | 600 | 600 | 600, 755 |
Spindle taper | mm | 120 1:120 | 120 1:120 | 120 1:120 |
Spindle speed | r/min | 70-260. 25-100, 220-850 | 70-260. 25-100, 220-850 | 70-260. 25-100, 220-850 |
Spindle end structure | C11 | C11 | C11 | |
Spindle bore | mm | 100 | 100 | 100 |
Main motor power ( frequency conversion) | kW | 11 | 11 | 11 |
Main transmission | Frequency conversion Steplss speed | Frequency conversion Steplss speed | ||
Tool post travel | mm | X: 500, Z: 1000-5000 | X: 500, Z: 1000-5000 | X: 500, Z: 1000-5000 |
Ballscrew diameter x pitch | mm | X: 3206, Z:5010-8312 | X: 3206, Z:5010-8312 | X: 3206, Z:5010-8312 |
Rapid feeding speed | mm/min | X:4000. Z:6000mm | X:4000. Z:6000mm | X:4000. Z:6000mm |
Position precision | mm | X:0.012, Z0.032 | X:0.012, Z0.032 | X:0.012, Z0.032 |
Re positioning precision | mm | X:0.006, Z:0.010 | X:0.006, Z:0.010 | X:0.006, Z:0.010 |
Machining preicision | IT6-IT7 | IT6-IT7 | IT6-IT7 | |
Roughness | Ra 1.6 | Ra 1.6 | Ra 1.6 | |
Re position of tool post | mm | 0.005 | 0.005 | 0.005 |
Tool section | mm | 32X32 | 32X32 | 32X32 |
Tailstock quill diameter | mm | 100 | 100 | 100 |
Tailstock quill travel | mm | 250 | 250 | 250 |
Tailstock taper | Morse | 6# | 6# | 6# |
CNC system | Siemens, FANUC, GSK | Siemens, FANUC, GSK | Siemens, FANUC, GSK | |
More feature:
1.1 The CNC lathe is the export of mature products, the whole structure is compact, beautiful appearance, spindle high torque, high rigidity, stable and reliable performance, with excellent precision retention.
1.2 The CNC lathe headboard optimization design, suitable for discs, shaft parts of the turning, can be straight, circular arc, metric thread, long thread processing, can be applied to the complex shape of the complex and high precision disk type, Parts Processing.
1.3 The CNC lathe machine guide rails and saddle rails are used special materials, hard rail, high frequency quenching, super hard wear and tear, durable, good processing accuracy to maintain good.
1.4 The CNC lathe use of high-precision spindle bearing group and precision assembly and dynamic balance test of the spindle, to ensure high precision spindle, low noise, strong rigidity.
1.5 The CNC lathe lubrication point of the use of forced automatic lubrication device for quantitative quantitative lubrication of the screw and guide rail, when there is an abnormal state or lack of fuel, the automatic warning signal.
1.6 The CNC lathe is used domestic well-known brand manual chuck.
Details
Glance of workshop
Customer View
Introduction of Horizontal CNC Lathe Machine:
The series CNC lathe is suitable for performing internal and external turning, facing, slotting and machining of metric, module and diameter threads as well as automatic change of tool post. It can realize continuously turning and preserving machining process of many workpiece for choice. It is suitable for turning shaft, disc and sleeve workpieces, as well as small batch production and various similar workpiece with different spec. and kinds.
The series lathes have strong power with good rigidity, and of pleasing appearance with easy operation.
Feature of Horizontal CNC Lathe Machine:
1.Semi-enclosed sheet metal
Adavantage:
Our company adopts the international advanced resin sand casting process. The castings are made of HT300, and then tempered twice. The castings are tempered once before processing. The castings are subjected to secondary tempering after rough machining. The tempering is tempered to the greatest extent in the tempering kiln. Reduce the internal stress of the casting, and perform vibration aging before finishing to prevent the casting from deforming, thereby improving the accuracy of the machine tool.
Parameter of CNC Lathe Machines
Item | unit | CK6180 | CK61100 | CK61125 |
Swing over bed | mm | 800 | 1000 | 1250 |
Swing over carriage | mm | 400 | 650 | 850 |
Max. workpiece length | mm | 1000/1500/2000/3000/4000/5000/6000/7000/8000/9000/10000 | ||
Guideway width | mm | 600 | 600 | 600, 755 |
Spindle taper | mm | 120 1:120 | 120 1:120 | 120 1:120 |
Spindle speed | r/min | 70-260. 25-100, 220-850 | 70-260. 25-100, 220-850 | 70-260. 25-100, 220-850 |
Spindle end structure | C11 | C11 | C11 | |
Spindle bore | mm | 100 | 100 | 100 |
Main motor power ( frequency conversion) | kW | 11 | 11 | 11 |
Main transmission | Frequency conversion Steplss speed | Frequency conversion Steplss speed | ||
Tool post travel | mm | X: 500, Z: 1000-5000 | X: 500, Z: 1000-5000 | X: 500, Z: 1000-5000 |
Ballscrew diameter x pitch | mm | X: 3206, Z:5010-8312 | X: 3206, Z:5010-8312 | X: 3206, Z:5010-8312 |
Rapid feeding speed | mm/min | X:4000. Z:6000mm | X:4000. Z:6000mm | X:4000. Z:6000mm |
Position precision | mm | X:0.012, Z0.032 | X:0.012, Z0.032 | X:0.012, Z0.032 |
Re positioning precision | mm | X:0.006, Z:0.010 | X:0.006, Z:0.010 | X:0.006, Z:0.010 |
Machining preicision | IT6-IT7 | IT6-IT7 | IT6-IT7 | |
Roughness | Ra 1.6 | Ra 1.6 | Ra 1.6 | |
Re position of tool post | mm | 0.005 | 0.005 | 0.005 |
Tool section | mm | 32X32 | 32X32 | 32X32 |
Tailstock quill diameter | mm | 100 | 100 | 100 |
Tailstock quill travel | mm | 250 | 250 | 250 |
Tailstock taper | Morse | 6# | 6# | 6# |
CNC system | Siemens, FANUC, GSK | Siemens, FANUC, GSK | Siemens, FANUC, GSK | |
More feature:
1.1 The CNC lathe is the export of mature products, the whole structure is compact, beautiful appearance, spindle high torque, high rigidity, stable and reliable performance, with excellent precision retention.
1.2 The CNC lathe headboard optimization design, suitable for discs, shaft parts of the turning, can be straight, circular arc, metric thread, long thread processing, can be applied to the complex shape of the complex and high precision disk type, Parts Processing.
1.3 The CNC lathe machine guide rails and saddle rails are used special materials, hard rail, high frequency quenching, super hard wear and tear, durable, good processing accuracy to maintain good.
1.4 The CNC lathe use of high-precision spindle bearing group and precision assembly and dynamic balance test of the spindle, to ensure high precision spindle, low noise, strong rigidity.
1.5 The CNC lathe lubrication point of the use of forced automatic lubrication device for quantitative quantitative lubrication of the screw and guide rail, when there is an abnormal state or lack of fuel, the automatic warning signal.
1.6 The CNC lathe is used domestic well-known brand manual chuck.

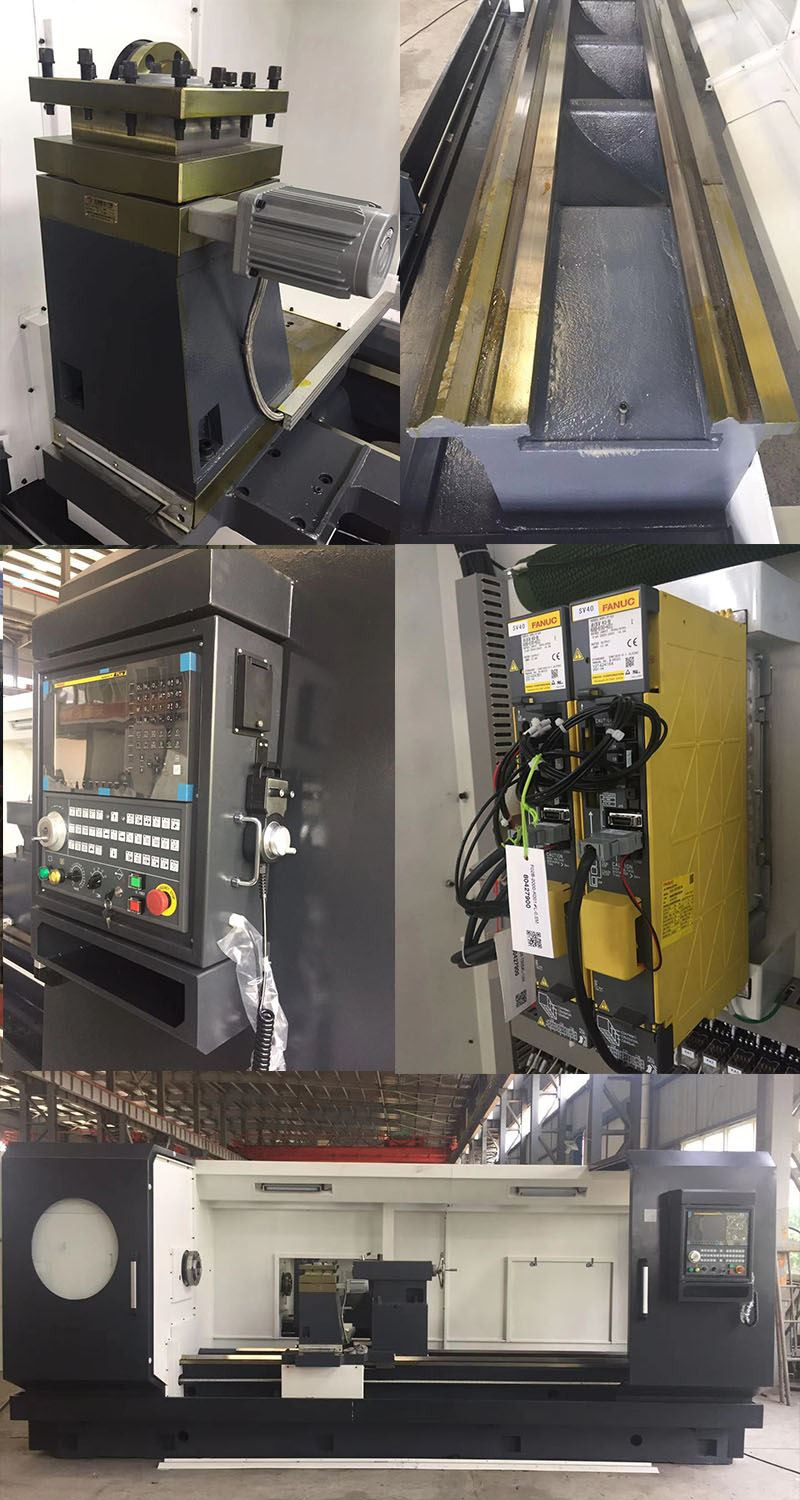

Details

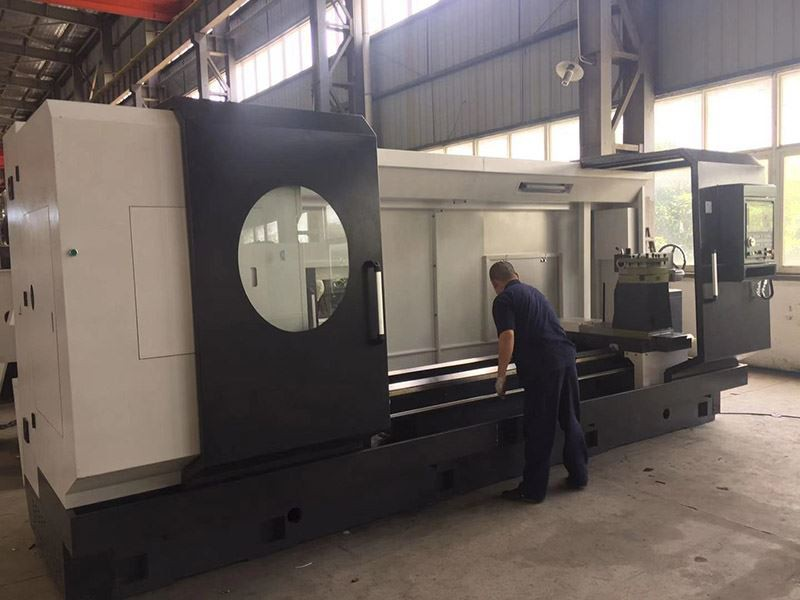

Glance of workshop
