DRO Heavy Duty Lathe Model:CW61400,CW61160,CW61180,CW61200,CW61220
| Quantity: | |
|---|---|
Product Introduction of DRO Heavy Duty Lathe
This DRO Heavy Duty Lathe adopts frequency conversion stepless speed regulation, and the spindle box adopts high and bottom gear manual transmission. High power, high speed, reasonable structure, machining accuracy up to level 6, roundness error no more than 0.01mm, surface roughness no more than Ra1.6um; It is suitable for finishing in medium and small batch machining workshops.
The maximum turning diameter of the bed of this machine tool is 1250mm, which is suitable for turning various rotating surfaces and end surfaces such as cylindrical, conical, and arc surfaces, as well as various metric and inch straight and tapered threads. With appropriate accessories and tools, it can also perform various processing such as drilling, reaming, reaming and tapping.
The bed is an integral box-shaped structure, which is made of high-standard cast iron (HT300) for one-time molding and has been subjected to secondary aging treatment, and has good stability; the guideway span (755mm), with good rigidity and strong vibration resistance; the guideway surface is medium-frequency quenched , And precision grinding by the guide rail grinder, to ensure long life, high precision and good retention.
Products Specification of DRO Heavy Duty Lathe
Item | Unit | CW61400 | CW61160 | CW61180 | CW61200 | CW61220 |
Swing over bed | mm | 1400 | 1600 | 1800 | 2000 | 2200 |
Swing over cross slide | mm | 1000 | 1200 | 1400 | 1600 | 1800 |
Wdith of guideway | mm | 1100 | ||||
Distance between center | mm | 3000-20000 | ||||
Max. workpiece through spindle | mm | 128 | ||||
Spindle bore | mm | 130 | ||||
Taper of spindle bore | A2-15 | |||||
Spindle front bearing diameter | mm | 220/280 | ||||
Spindle taper bore | 140; 1:7,120；1:7 | |||||
Spindle rotation step | Manual 6 gear, Manual 4 gear | |||||
Spindle rotation range | r/min | 3-300, 2-200 | ||||
Main motor power | kW | AC30, AC47/AC45 | ||||
Rapid speed motor power | kW | 2.2 | ||||
Tool section | mm | 45x45 | ||||
Tool Turning Angle | ° | ±90 | ||||
Cross Tool Post Travel | mm | 200 | ||||
Longitudinal Too Post Travel | mm | 400 | ||||
Slide travel | mm | 850/920 | ||||
Longitudinal tool post rapid speed | mm/min | 935 | ||||
Cross rapid speed | mm/min | 1870 | ||||
Longitudinal rapid speed | mm/min | 3740 | ||||
Metric thread kinds/range | mm | 43, 1-120 | ||||
Inch thread kinds/range | T.P.I | 29, 28-3/8 | ||||
Module thread kinds/range | mm | 45, 0.5-60 | ||||
Pitch threads range | D.P. | 25, 1-55 | ||||
Longitudinal feeding kinds/range | m/rev | 56, 0.1-12 | ||||
Cross feeding kinds/range | m/rev | 56, 0.5-6 | ||||
Upper tool post | m/rev | 56, 0.025-3 | ||||
Tailstock quill diameter | mm | 260, 280 | ||||
Tailstock quill taper | 80; 1:7 | |||||
Tailstock quill travel | mm | 300 | ||||
Weight | Kg | 23000T(3000mm) | ||||

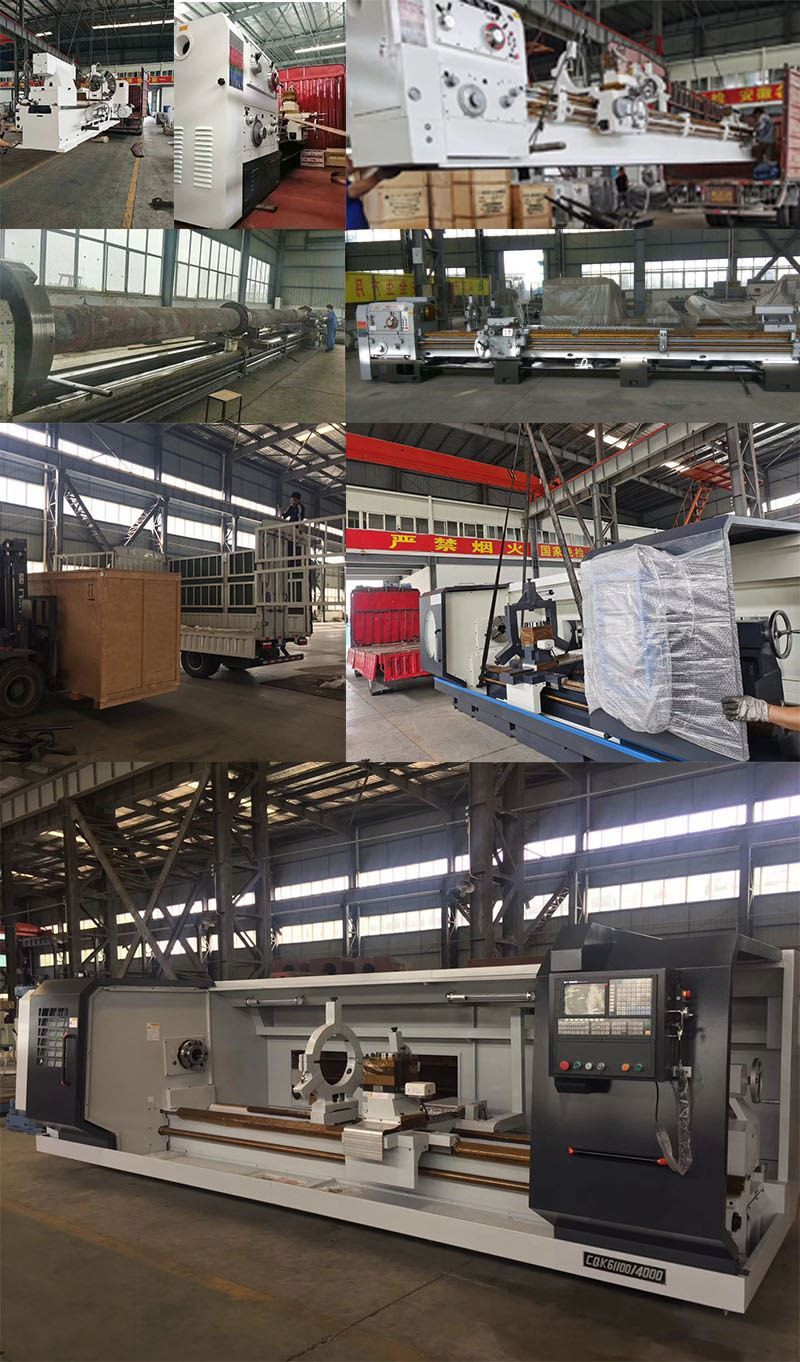

Glance of workshop of metalworking lathe
