Product Introduction of CNC Heavy Duty Lathe Machine
1. CNC Heavy Duty Lathe Machine is especially suitable for multi-variety, medium and small batch rotation processing, with strong process adaptability, high processing efficiency, low scrap rate, and good consistency of finished products, which can reduce the requirements for the technical proficiency of workers. Easy to program and simple to operate, it is an ideal large-scale machining equipment.
2. This CNC Heavy Duty Lathe Machine adopts frequency conversion stepless speed regulation, and the spindle box adopts high and bottom gear manual transmission. High power, high speed, reasonable structure, machining accuracy up to level 6, roundness error no more than 0.01mm, surface roughness no more than Ra2.5um; It is suitable for finishing in medium and small batch machining workshops.
3. The cnc system adopts the well-known CNC system, which can control 2 axes (X, Z) at the same time, and has the functions of linear, arc, thread interpolation and other fixed cycles, and the minimum resolution is 0.001mm.
4. The bed is an integral box-shaped structure, which is made of high-standard cast iron (HT300) for one-time molding and has been subjected to secondary aging treatment, and has good stability; the guideway span (600mm), with good rigidity and strong vibration resistance; the guideway surface is medium-frequency quenched , And precision grinding by the guide rail grinder, to ensure long life, high precision and good retention.
5. The bed is an integral box-shaped structure, which is made of high-standard cast iron (HT300) for one-time molding and has been subjected to secondary aging treatment, and has good stability; the guideway span (600mm), with good rigidity and strong vibration resistance; the guideway surface is medium-frequency quenched , And precision grinding by the guide rail grinder, to ensure long life, high precision and good retention.
6. Each movement pair is automatically lubricated by a centralized intermittent lubrication system.For swing over bed: 1400mm, 1600mm, 1800mm, 2000mm, please contact us for more info.
Advantage:
Our company adopts the international advanced resin sand casting process. The castings of CNC Vertical Lathe Machine are made of HT300 and then tempered twice. The castings are tempered once before processing. The castings are subjected to secondary tempering after rough machining. The tempering is tempered to the greatest extent in the tempering kiln. Reduce the internal stress of the casting, and perform vibration aging before finishing to prevent the casting from deforming, thereby improving the accuracy of the machine tool.
Parameter
Item | unit | CK61100 | CK61125 | CK61140 |
Swing over bed | mm | 1000 | 1250 | 1400 |
Swing over carriage | mm | 615 | 865 | 930 |
Max. workpiece length | mm | 1000-10000 | ||
Guideway width | mm | 755 | 755 | 755 |
Spindle taper | mm | 1:120/140 | 1:120/140 | 1:120/140 |
Chuck | Four jaw 1000 | Four jaw 1000 | Four jaw 1000 | |
Spindle speed | r/min | 70-260. 25-100, 220-850 | 70-260. 25-100, 220-850 | 70-260. 25-100, 220-850 |
Spindle end structure | A2/15 | A2/15 | A2/15 | |
Spindle bore | mm | 130 | 130 | 130 |
Main motor power ( frequency conversion) | kW | 22 | 22 | 22 |
Main transmission | 4-470(FOUR STEP) | 4-470(FOUR STEP) | 4-470(FOUR STEP) | |
Center height | mm | 500 | 625 | 625 |
Min. X/Z feeding increment | mm | 0.001 | 0.001 | 0.001 |
X/Z rapid speed | mm/min | 3000/6000 | 3000/6000 | 3000/6000 |
Max. X travel | mm/min | 520 | 650 | 650 |
Toolpost postiion | V4300X300 | V4300X300 | V4300X300 | |
Toolpost position changing time | S | 4.5 | 4.5 | 4.5 |
Tool post re positioning precistion | mm | 0.005 | 0.005 | 0.005 |
Tool section | mm | 45 | 45 | 45 |
Tailstock quill diameter | mm | 160 | 160 | 160 |
Tailstock quill travel | mm | 300 | 300 | 300 |
Tailstock taper | Morse | 6# | 6# | 6# |
Machining precision | IT6-IT7 | IT6-IT7 | IT6-IT7 | |
Roughness | Ra1.6 | Ra1.6 | Ra1.6 | |
Standard configuration | Vertical four postion electric tool post | Vertical four postion electric tool post | Vertical four postion electric tool post | |
Optional congfiguration | Vertical six postion electric tool post | Vertical six postion electric tool post | Vertical six postion electric tool post | |
Re position of tool post | mm | 0.005 | 0.005 | 0.005 |
Tool section | mm | 32X32 | 32X32 | 32X32 |
CNC system | Siemens, FANUC, GSK | Siemens, FANUC, GSK | Siemens, FANUC, GSK | |

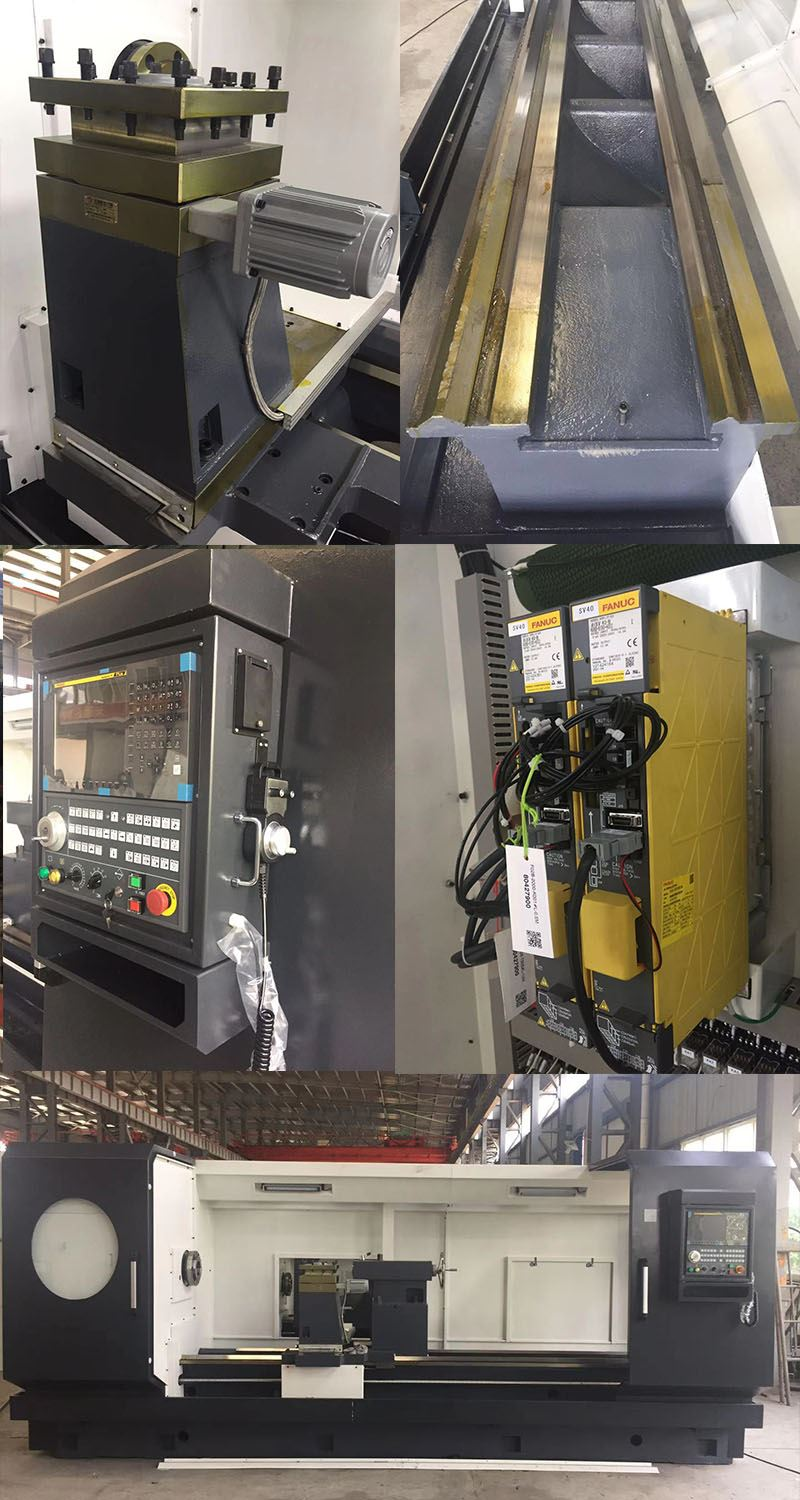

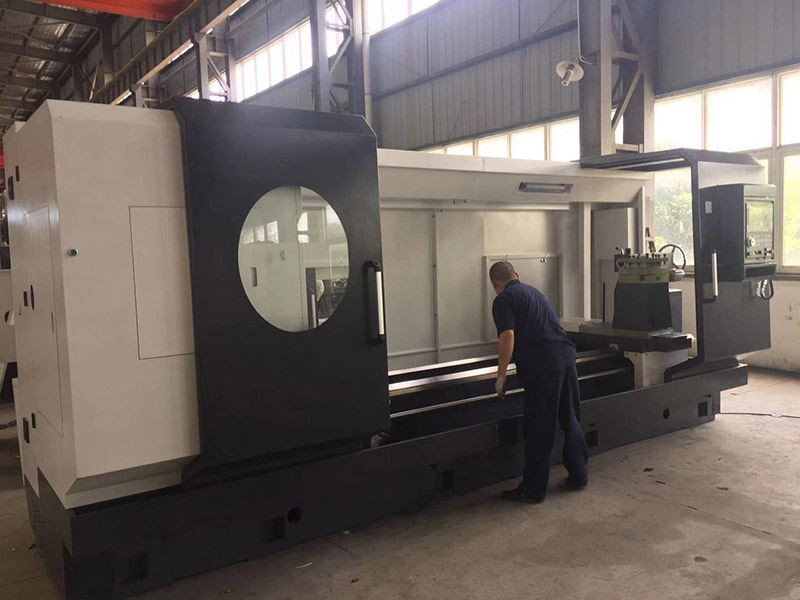

Details
