TBGT060102L TBGT060104L Turning Iinsert

EDGEV Carbide Lathe Inserts TBGT060102/04L-S MX2020 Boring CNC Lathe Turning Tools For Substitue TBGT060102/04L-S TN60

Quantity:
facebook sharing button
wechat sharing button
linkedin sharing button
sharethis sharing button

EDGEV Cermet Carbide Inserts, Carbide Lathe Inserts TBGT060102/04L-S MX2020 Boring CNC Lathe Turning Tools For Substitue TBGT060102/04L-S TN60

Products Details:

01.Brand Name: EDGEV
02.Description:Indexable Cermet Inserts, Carbide Lathe Inserts
03.ISO Specification:

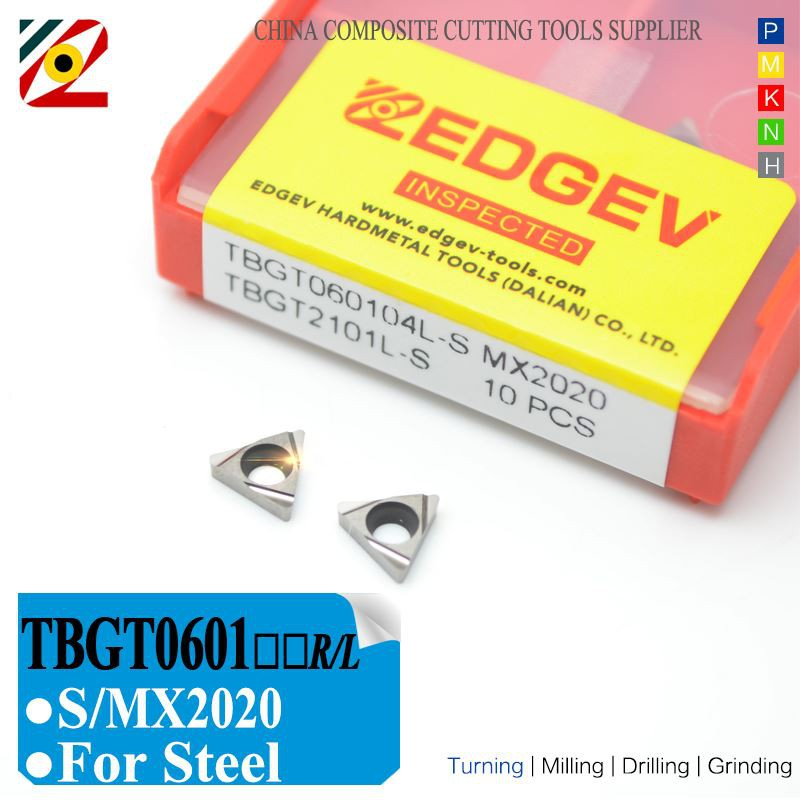

TBGT060102L-S MX2020(To substitue TBGT060102L-S TN60)
TBGT060104L-S MX2020(To substitue TBGT060104L-S TN60)
04.ANSI Specification:TBGT12105/1
05.Tools Material: Cermet Inserts
06.Chip Breaker:S
07.Grade:MX2020
08.Color: White
09.Application Range:From Finishing to Semi-finishing
10.Suitable Workpiece:Using for machining bearing steel, carbon steel, alloyed steel, tool steel with hardness up to HRC45,stainless steel.
11.Place of Origin: China
12.Mini Order: 10 Pieces/Box
13.Net Weight: 30g/Box
14.Package Weight: 60g

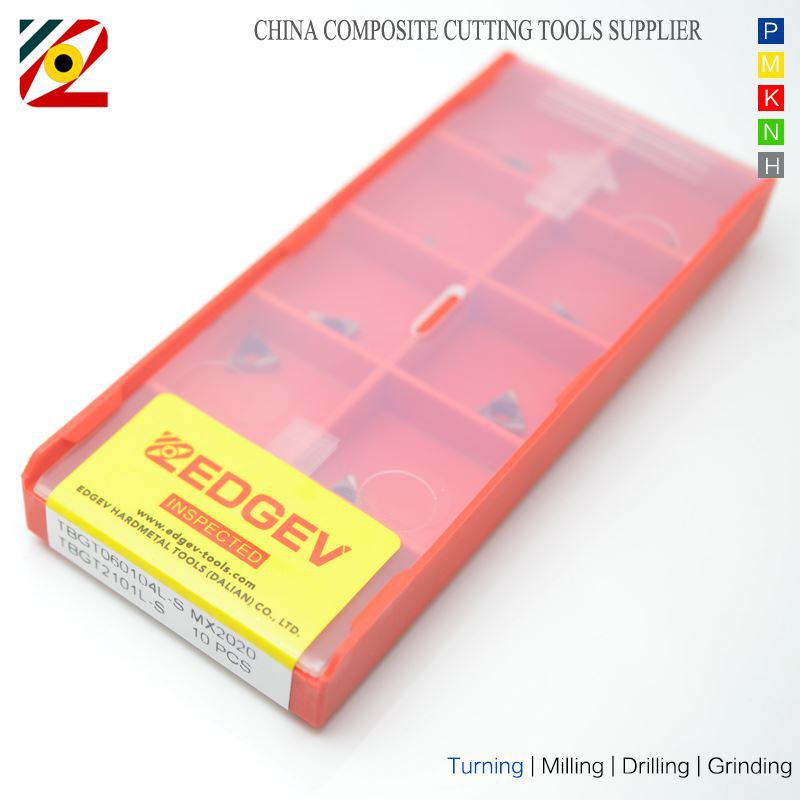

15.Packing: 10 Pieces Packed In One Plastic Box /lot
16.Delivery Time:20 days
17.Available Tool Holders:
***Please Attention: Unit price is 10 pieces of price, Please kindly notice;***

*Cermet Grade Introduction

EDGEV Ti(C,N) cermet is a new and potential material which not only has toughness, high thermal conductivity and good heat stability of materials, but also has high hardness, high red hardness and corrosion resistance of ceramics. The unique physical and chemical properties of cermet make if promising in special cutting tools, wear parts and corrosion-resistance parts.

*Advantages Introduction

●High quality surface on the workpiece for finishing and semi-finishing.
●High oxidation resistance, high red hardness and high cutting speed in dry cutting.
●High chemical stability, No built-up edge.
●Low density, low cost, lightweight operation.

HTB1JiXqVgHqK1RjSZFkq6x.WFXaRHTB10SFcVbPpK1RjSZFFq6y5PpXa6HTB15dxhVbvpK1RjSZFqq6AXUVXaC

As an excellent composite tools supplier in China, EDGEV has devoted greatly to continuous development of the national industry as well as the global prosperity.

Edgev Hardmetal Tools(Dalian) Co., Ltd. is a composite cutting tools supplier who works on the design, development, production, marketing and technical service of the products.

Meanwhile, it covers a great range of cutting tools and grinding tools, high-speed steel products, cemented carbide tools, ceramic, PCBN, PCD and diamond; in addition, it is also in charge of import and export, after-sale service, technical transportation as well as advisory service, all of which involves many different high-end fields such as aerospace, automobile manufacturing and ship building, wind power generation and mechanical parts processing. Edgev at present is making great endeavor to continuously develop and improve its self-system and network.

The reform and open in China has attracted the world's attention and gained remarkable achievements since the beginning of the 21st century. However, the development of one country's industrialization and information can't be separated from mechanical manufacture.

Edgev Hardmetal Tools is in supply excellent products for the first-class manufacturers of machine cutting tools, providing the users with one-stop and all-around solutions of domestic tools and convenient and efficient distribution service. The products cover a broad range of the mechanical processing industries such as turning, milling, drilling and grinding machining.

In the future, Edgev Hardmetal Tools will be dedicated to create more values and services for the users; meanwhile, it will make great endeavor to furnish more practical, low-cost and reliable products for the global customers; Edgev will produce world-famous cutting tool products and finally have its products incorporated into the global cutting tools supply chain.

Edgev would like to make progress with you together and seek common development.
