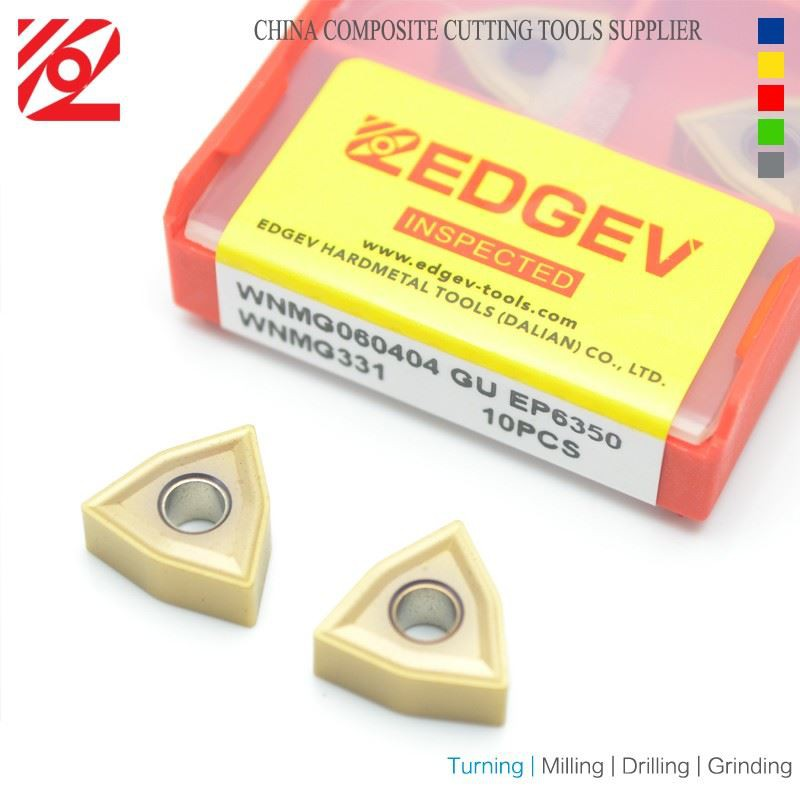

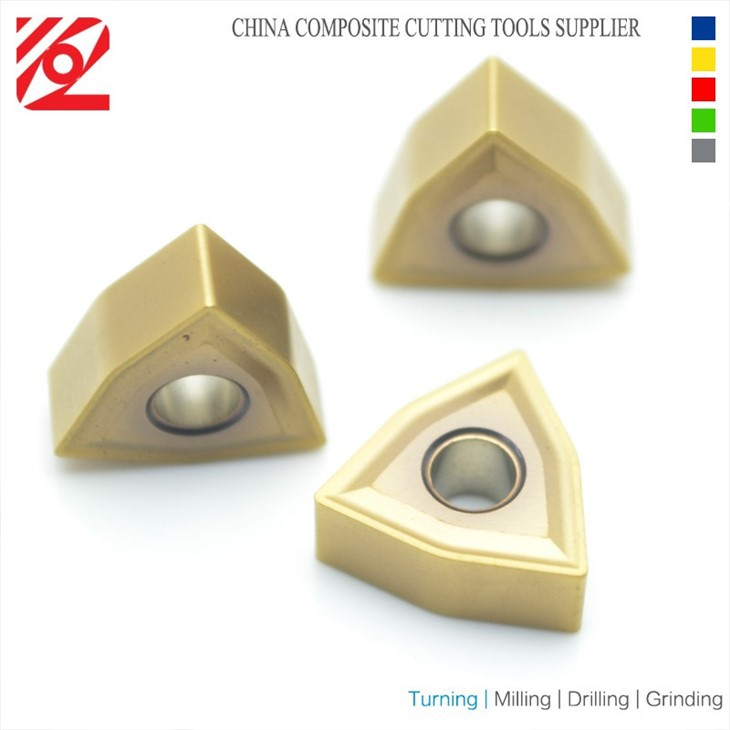

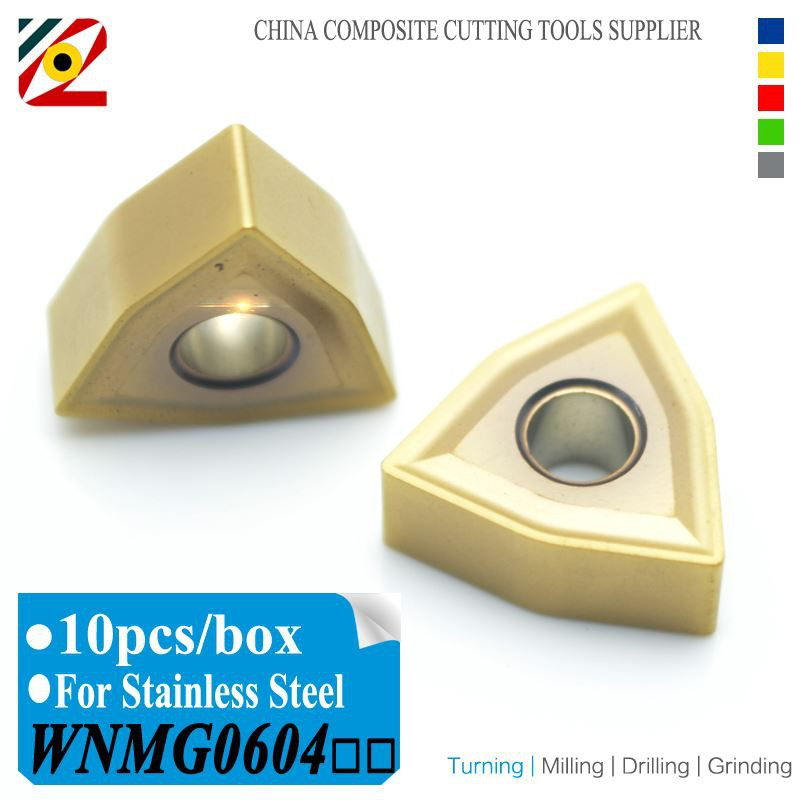

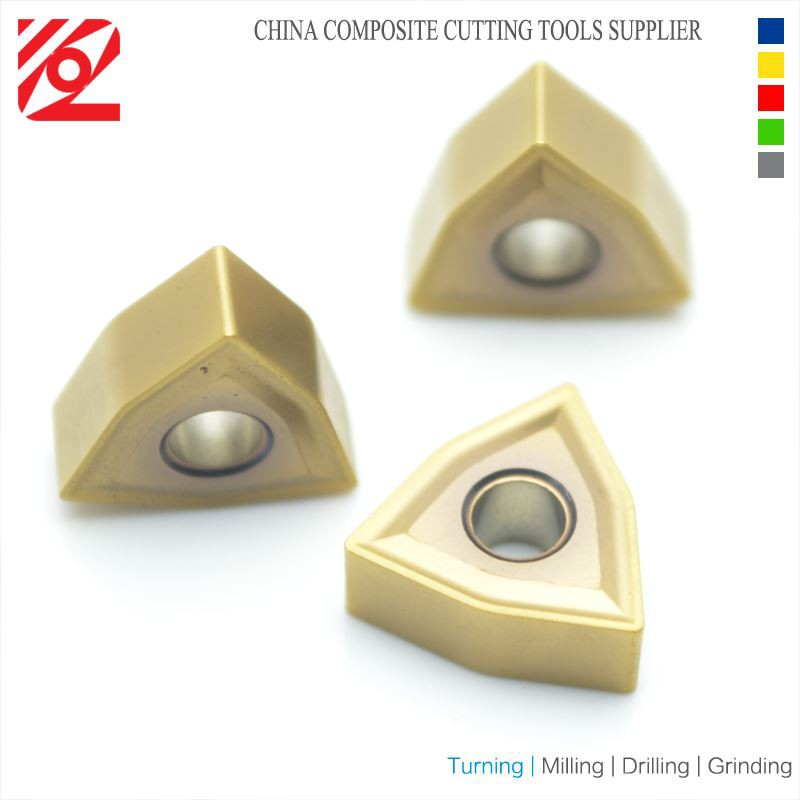

EDGEV WNMG060404 WNMG060408 WNMG CNC Indexable Carbide Inserts Lathe Cutter Turning Tools Tungsten Machining Stainless Steel Products Details: 01. Brand Name: EDGEV 02. Description: 80 Degree Trigon Negative CNC Coated Carbide Inserts For Turning Stainless Steel 03. ISO Symbol: WNMG060404 and...
| Quantity: | |
|---|---|
Products Details:
01. Brand Name: EDGEV
02. Description: 80 Degree Trigon Negative CNC Coated Carbide Inserts, CNC Indexable Carbide Inserts,Diamond Round Tool for Turning Stainless Steel
03. ISO Symbol: WNMG060404 and WNMG060408
04. ANSI Symbol: WNMG331 and WNMG332
Size：(I.C.=9.525mm,Thickness=4.76mm,Corner Radius/Nose=0.4/0.8)
05.Material: carbide inserts
06. Coating: AlCrN+AlCrSiN
07. Coating Type: Liechtenstein Balzers PVD Coating
08. Chip Breaker: GU
09. Grade: EC6350 (P20~P35)
10. Features: Improved toughness and excellent wear resistance.
11.Hardness: 95HRA
12. Color: Yellow
13. Application Range: For Semi-finishing/Roughing
14. Work Piece: For Stainless Steel
15. Work Piece Hardness:<=HRC45
16. Available Tool Holder: MWLNR/L PWLNR/L WWLNR/L DWLNR/L
17. Place of Origin: China
18. Unit Type: Lot (10 Pieces/Lot)
19. Net Weight:0.07kg/Box
20. Gross Weight: 0.15kg/ Lot (10 Pieces)

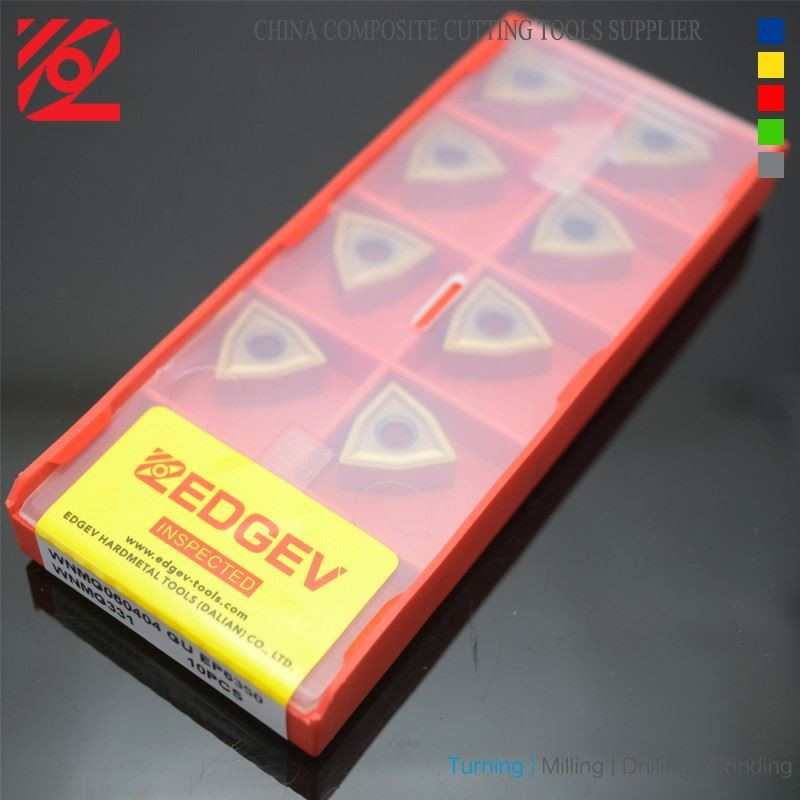

21. Packing: 10 Pieces Packed In One Plastic Box /lot
22. Machining Types: Continuous Cutting/Interrupted Cutting
23. Min Order:1box/10pcs
