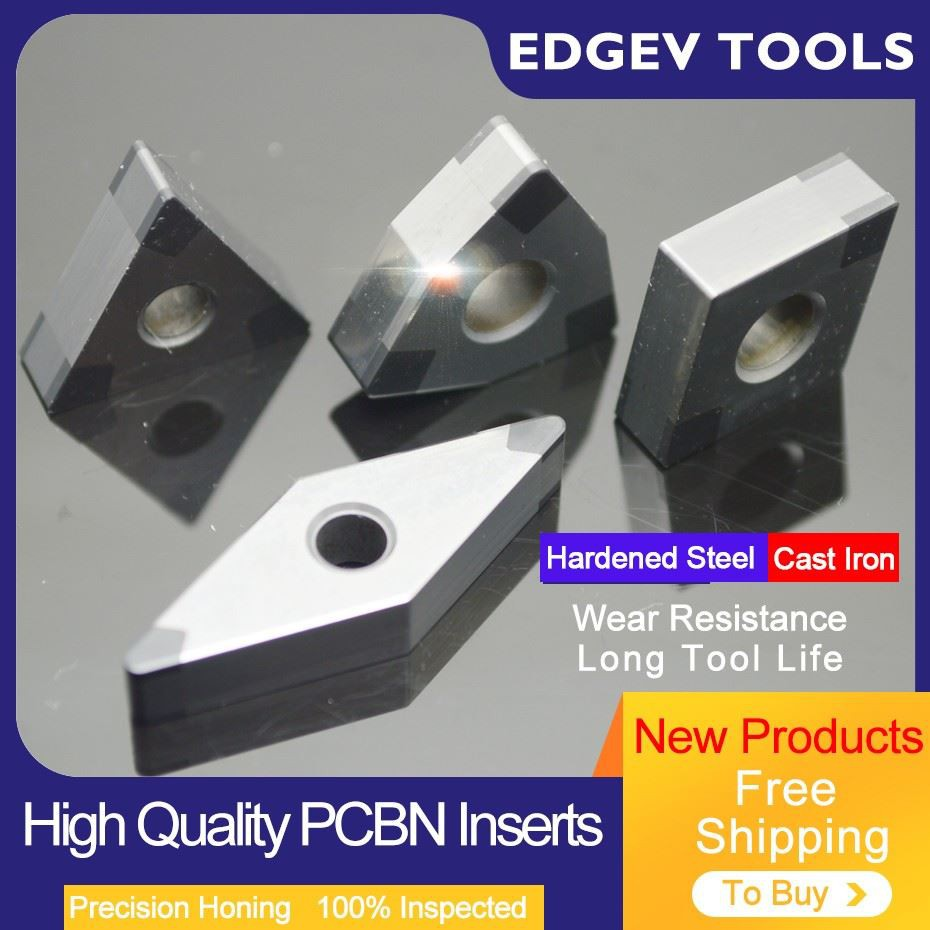

CBN Insert WNGA080404/08 TNGA160404/08 CNGA120404/08 VNGA160404/08 TNMG WNMG PCBN Tipped Inserts Lathe Turning Tools Supper Hard
| Quantity: | |
|---|---|
Products Parameters:
01. Brand Name: EDGEV
02. Description:80Degree Trigon Negative CNC CBN Tipped Inserts
03. ISO Specification:

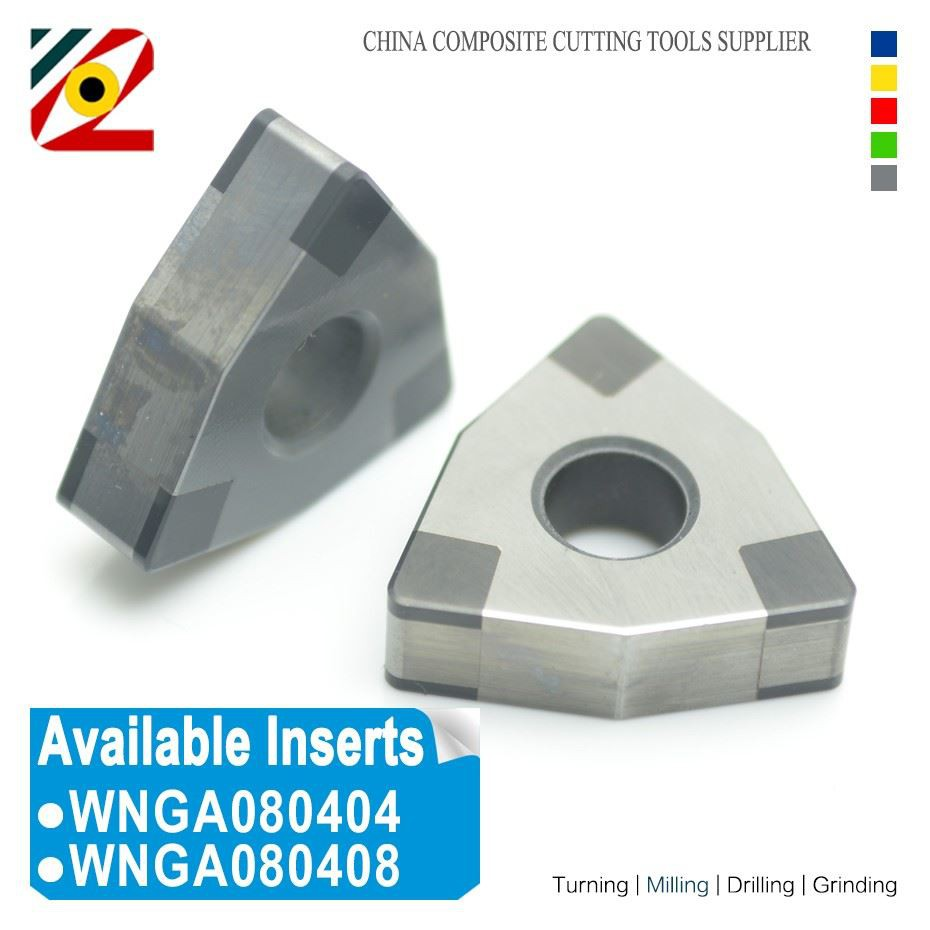

WNGA080404/08

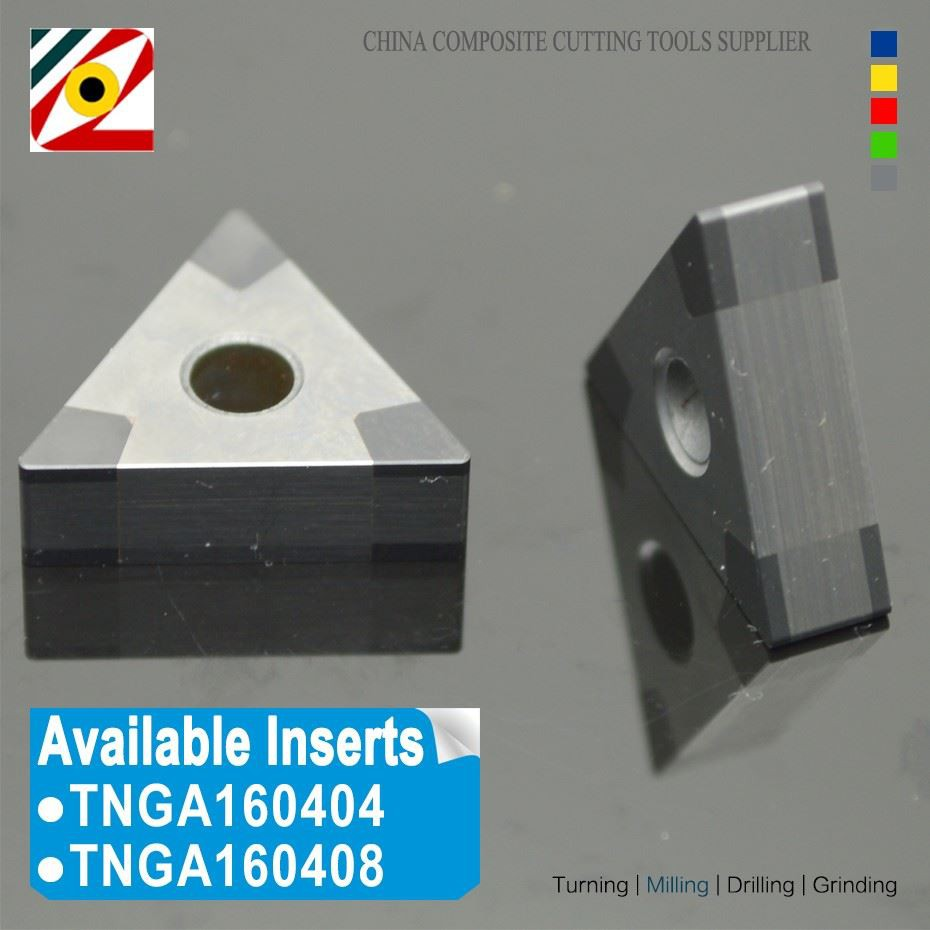

TNGA160404/08

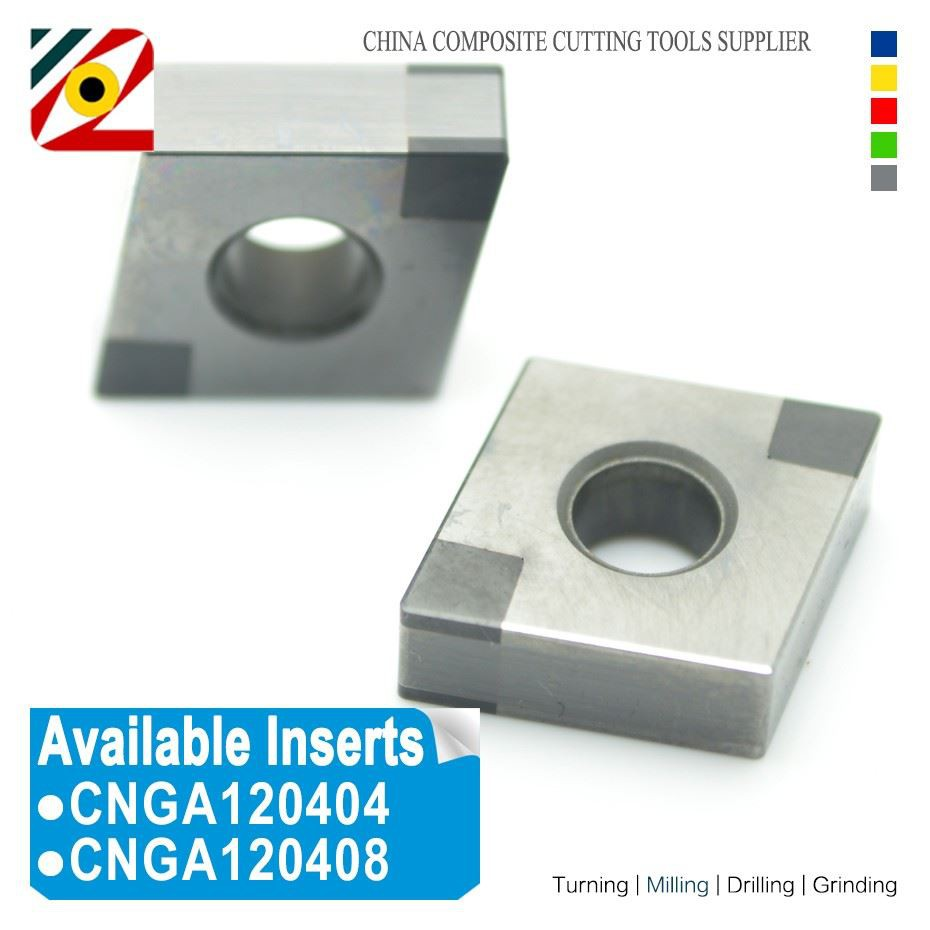

CNGA120404/08

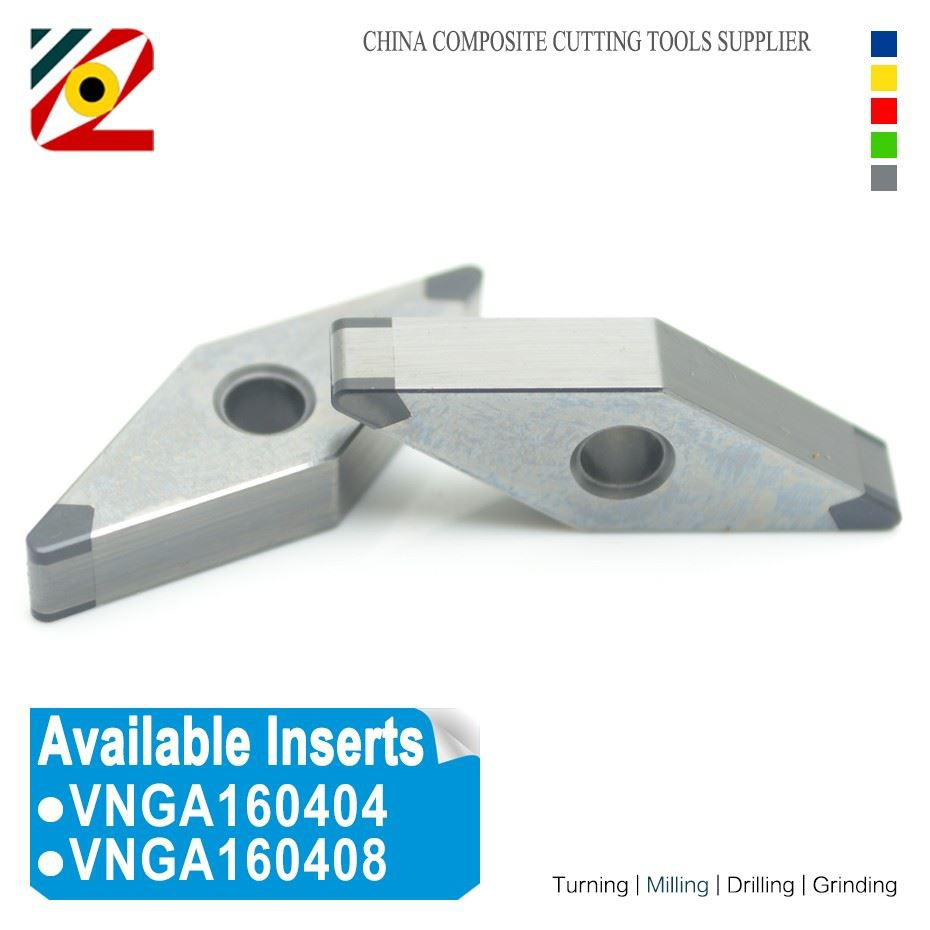

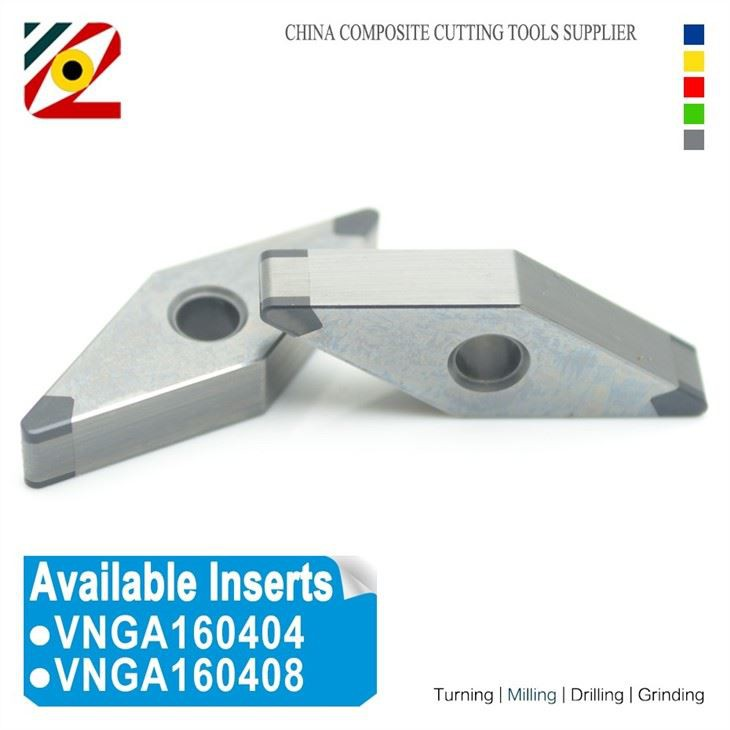

VNGA160404/08
04. ANSI Specification:
05. Material:Cubic Boron Nitride

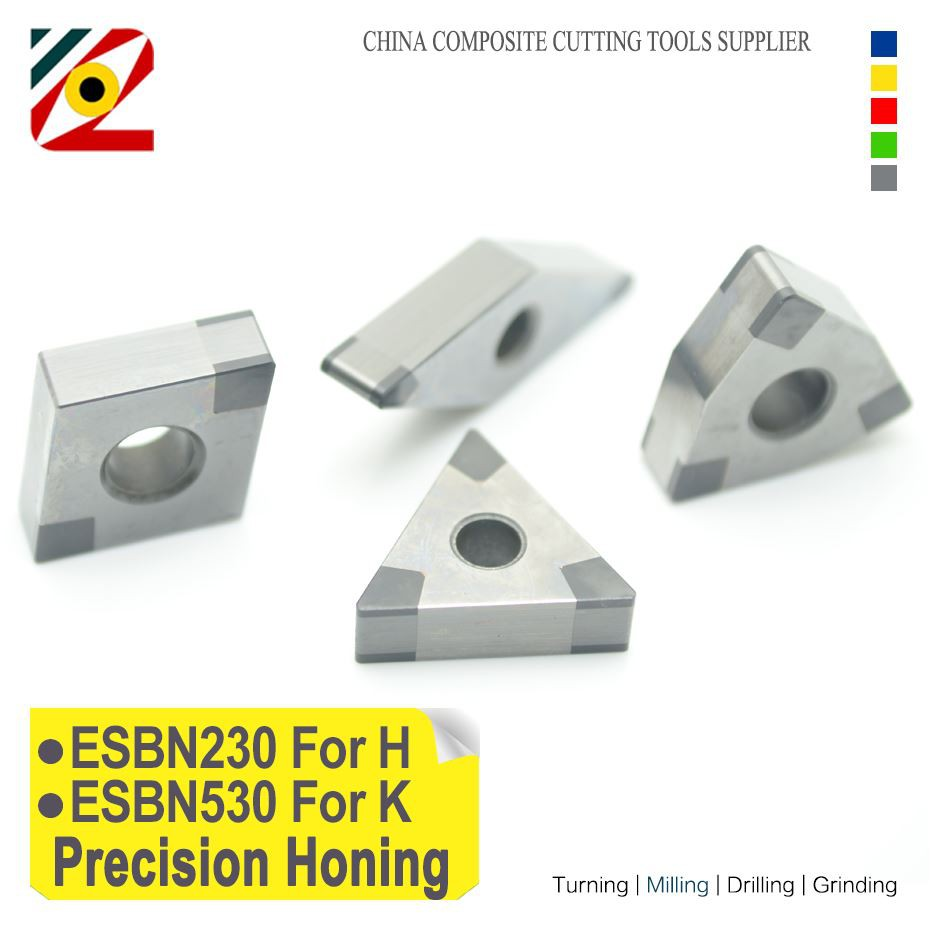

06. Grade:
ESBN230 for machining Hardended Steel/H
ESBN530 for machining Cast Iron/k
07. Features: Excellentwear resistanceand excellent impact andshock resistance

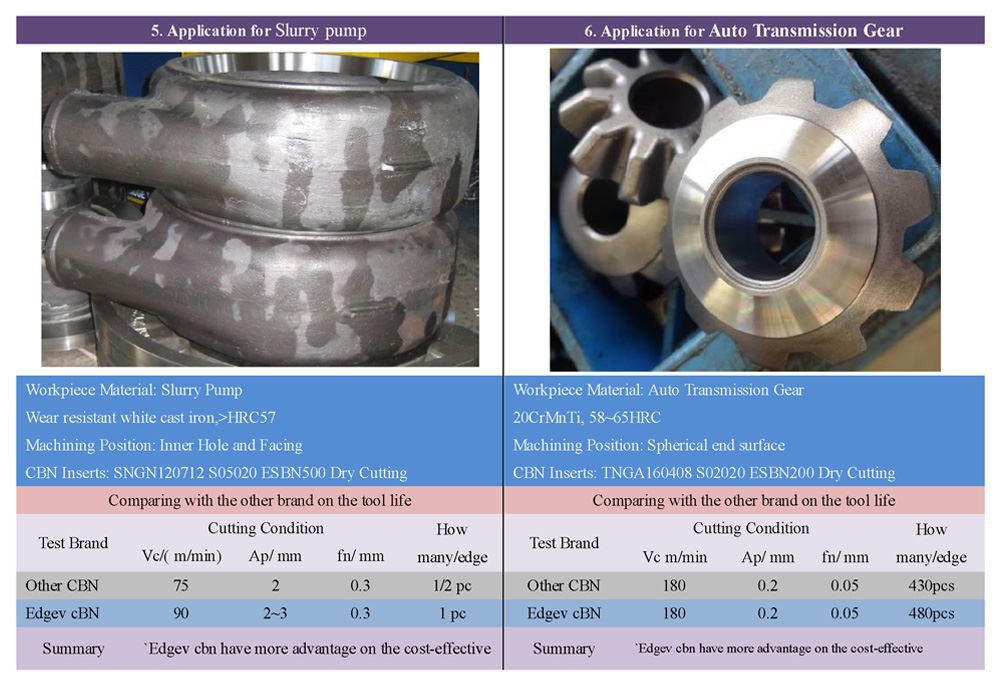

08. Application: Suitable for continuous and interrupted turning and milling with high cutting speed of alloy steel,hardened steeland bearing steel andcast iron.
09. Work Piece Hardness:HRC45~65

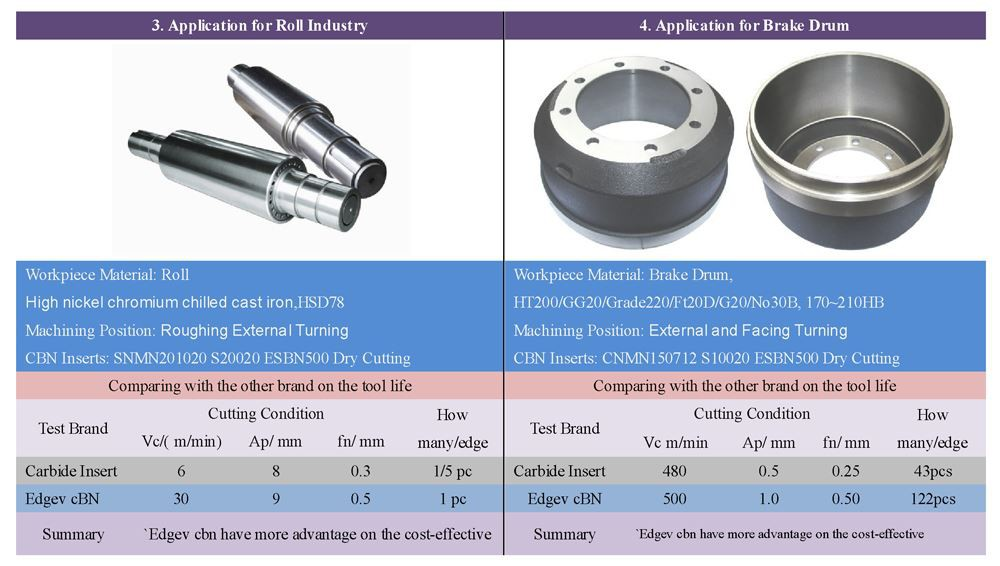

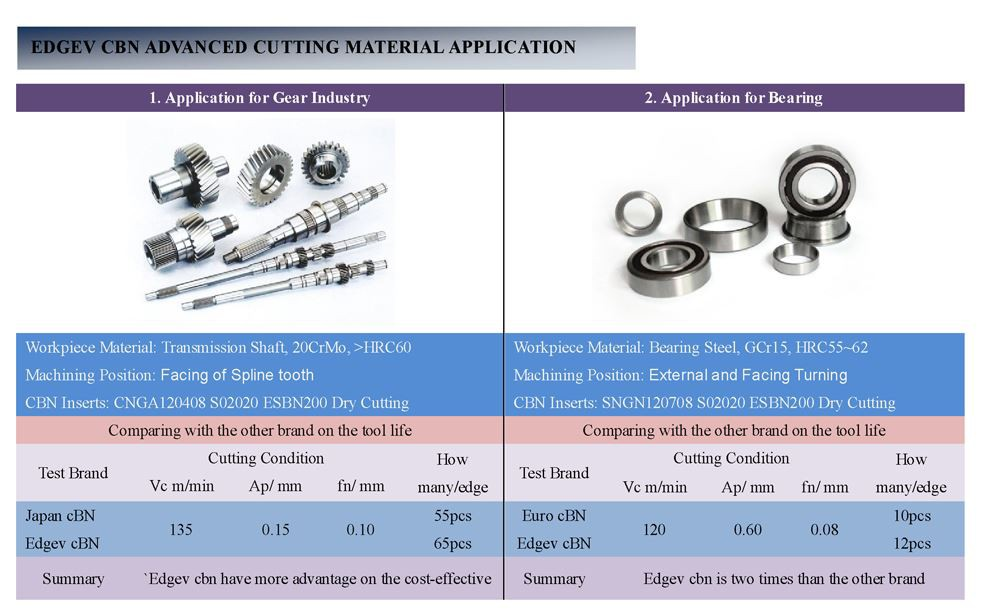

10. Suitable Work Piece:Break disc, Belt pulley, Gear,Bear,Metallurgical roll, Pump, Mining machinery, Brake drum, Brake disc, Metallurgicalroll, Big gear, Slewing bearing industry, Gearing industry,bearing industry
11. Color: Black
12. Usage: External Turning Tools
13. Application Range: FromFinishing to Semi-finishing
14. Suitable Tool Holder:
15. Place of Origin: China
16. Mini Order:1 Piece
17. Net Weight: 12g/Piece
18. Packing: Plastic Box
How to Identify Edge Preparation?
1. Symbol: F, That means is Sharper Edge, applied for finishing
2. Symbol: T, That means is Chamfered Edge, applied for finishing to semi-finishing, for example:T00520(0.05mm*20 degree)
3. Symbol: S,That means is Chamfered and honed Edge, applied for roughing to semi-finishing, for example:S01020(0.1mm*20 degree)
