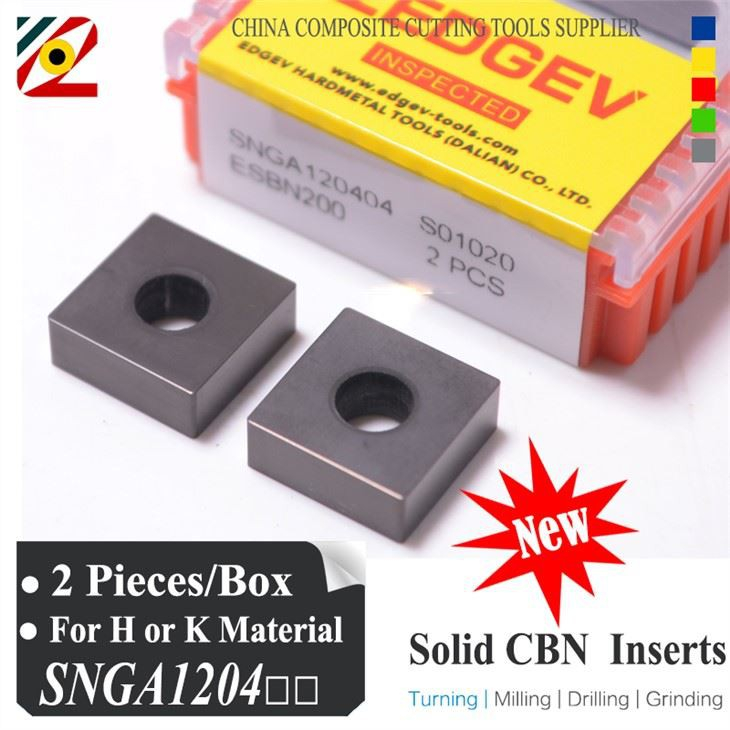

EDGEV 2PCS Boron Nitride CBN Solid Inserts SNGA120404 SNGA120408 SNMG120404 SNMG120408 SNGA SNMG Supper Hard Tool Lathe Cutter
| Quantity: | |
|---|---|
EDGEV 2PCS Boron Nitride CBN Solid Inserts SNGA120404 SNGA120408 SNMG120404 SNMG120408 SNGA SNMG Supper Hard Tool Lathe Cutter
Products Parameters:
01. Brand Name: EDGEV
02. Description: 60 Degree Negative CNC CBN Solid Inserts
03. ISO Specification:
SNGA120404 S01020 ESBN200 For (H) Hardened Steel
SNGA120408 S02020 ESBN200 For (H) Hardened Steel
SNGA120404 S01020 ESBN500 For (K) Cast Iron
SNGA120408 S02020 ESBN500 For (K) Cast Iron
04. ANSI Specification: SNGA431/SNGA432
05. Material: Cubic Boron Nitride
06. Grade: ESBN200 and ESBN500
07. Features: Excellent wear resistance and excellent impact and shock resistance
08. Application: Suitable for continuous and interrupted turning and milling with high cutting speed of alloy steel, hardened steel and bearing steel and cast iron.
09. Work Piece Hardness: HRC45~65
10. Suitable Work Piece: Break disc, Belt pulley, Gear, Bear, Metallurgical roll, Pump, Mining machinery, Brake drum, Brake disc, Metallurgical roll, Big gear, Slewing bearing industry, Gearing industry, bearing industry
11. Color: Black
12. Usage: External Turning Tools
13. Application Range: From Finishing to Semi-finishing
14. Suitable Tool Holder:
15. Place of Origin: China

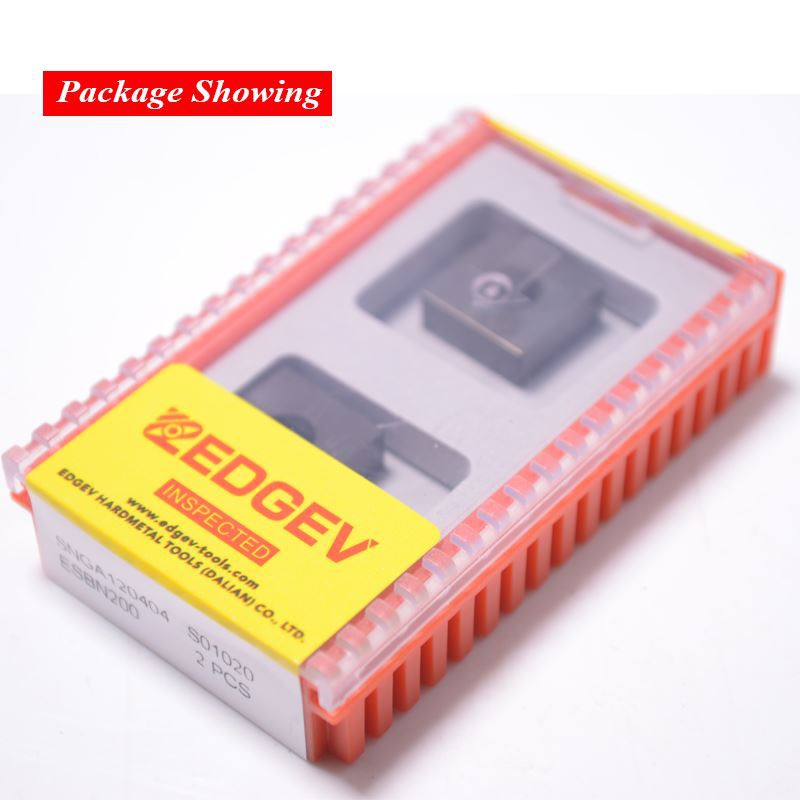

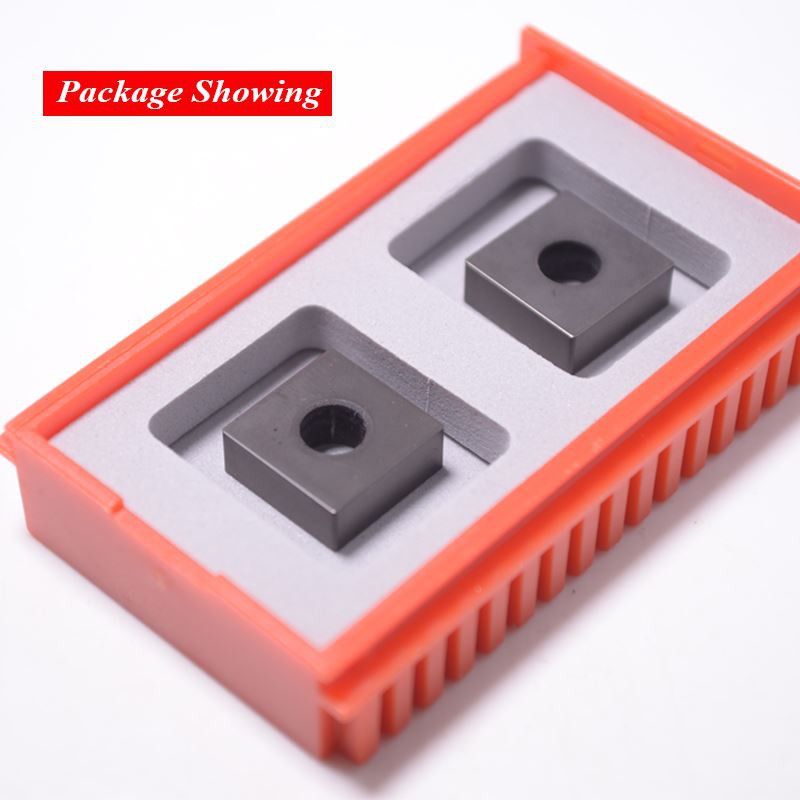

16. Package: 2Pieces packed in 1 Box
17. Net Weight: 8g/Piece
18. Packing: Plastic Box
Advantages
1. Good wear resistance for high speed cutting of Hardened steel and grey cast iron.
2. Achieves superior economic efficiency in the machining of hardened materials.
Our CBN Grades:

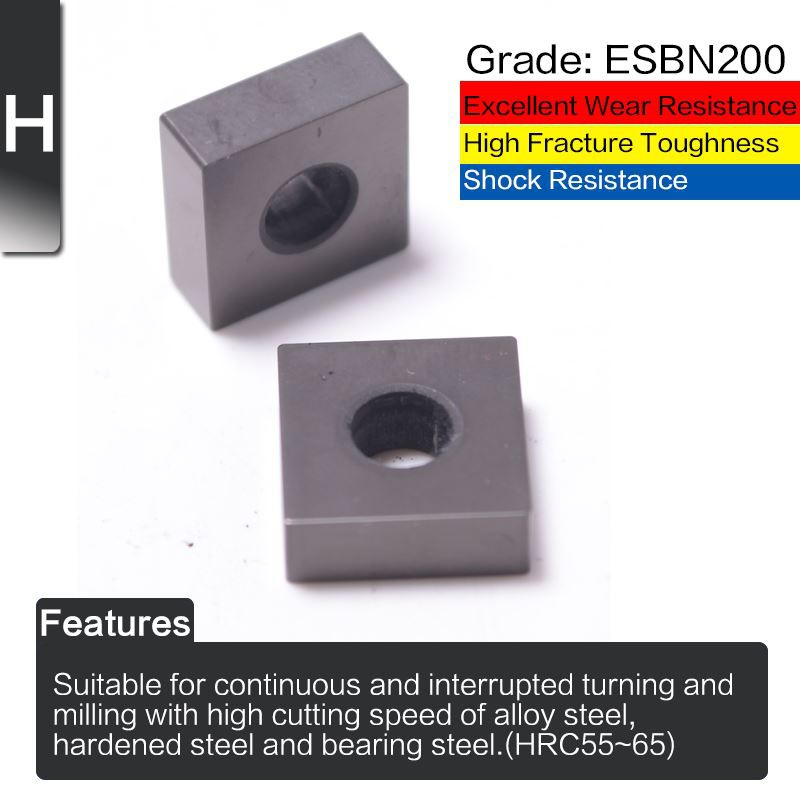

ESBN200: 60% CBN Content, Excellent wear resistance, suitable for high speed cutting continuous of hardened steel, alloy material. Precision processing of hardened bearings
ESBN350: 80% CBN Content, It’s the outstanding common material of balance wear resistance and shock resistance and economy. Low speed cutting of high hardness High-Ni-Cr, high-chromium steel, high-speed steel, harden steel. high speed cutting of gray cast iron, nodular cast iron, low-speed cutting of the carbide tungsten roll ring.

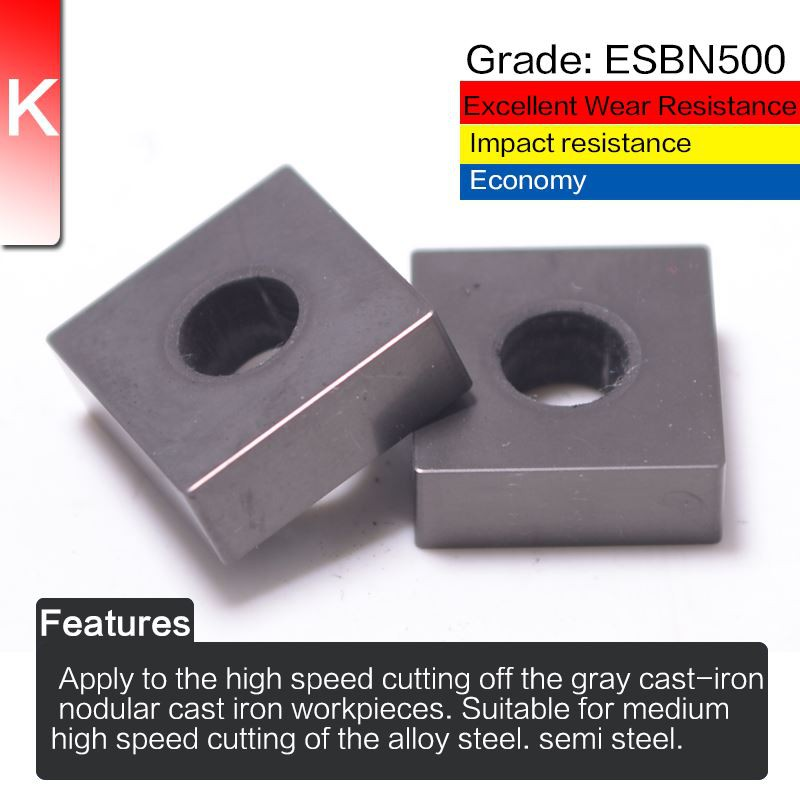

ESBN500: 90% CBN Content, High Wear resistance, impact resistance. Apply to the high-speed cutting of the gray cast-iron work pieces.
How to Identify Edge Preparation?
Symbol: F, That means is Sharper Edge, applied for Finishing
Symbol: T, That means is Chamfered Edge, applied for finishing to semi-finishing, for example:T00520(0.05mm*20 degree)
Symbol: S, That means is Chamfered and honed Edge, applied for roughing to semi-finishing, for example:S01020(0.1mm*20 degree)
There are many experts who have lots of experience in machining tools in Edgev Hardmetal Tools, meanwhile; high technology is also widely used in our company. In order to make sure that our products among the first level quality, we make good use of the world famous equipment and the measuring facility. At the same time, our products are under the strict quality management system of ISO9001:2008. To ensure the stable quality of tools, we use the strict management for our supplier.
Technical Guidance
Edgev Hardmetal Tools provide you with the basic tool production, meanwhile; we also provide the necessary technical support and consultation to product use to solve problems for customers.
F.A.Q.-Frequently Asked Questions
Question: Compared with other competitors, what advantages do we have?
Answer: With the rapid development of industry and the machine work piece materials, people have higher requirements for cutting tools and machining strategies. Edgev Hardmetal Tools puts forward a higher standard to adapt to this change. Our company is devoted to provide the customers with satisfactory productions.
In order to improve enterprise competitiveness and reduce the cost of production, our company has a cost reduction plan implementation in each fiscal year for the customers, as a result, Edgev Hardmetal Tools for our customer's products purchasing. Our customers can to save 1 to 3% of the total cost.
Edgev Hardmetal Tools has large categories of production and wide application scope, so the customers could get what they want in the shortest time, and this can greatly saves the time and cost of purchasing. At the same time, we have more advantages in products like ND, PCD, PCBN, Solid CBN ceramic, cemented carbide and HSS. We have close cooperation with different professional tool factories to explore new products and production, meanwhile, we also try hard to the explore development, design and production of non-standard products. In this way, we can improve product quality, flexibility, the technical aspects of the cognitive in order adapt to the market need of short delivery.
Question: Can you provide the free samples?
Answer: Our Company has a perfect policy about the sample for the first purchase of our products. Because of the high cost of sample and relevant freight problem, we have the problems to provide you with free samples and the relative shipping expense. As for this, we are appreciated your understanding and supports. In addition, when we are sure of your confirmation of samples, the amount of your first order should not be less than $5,000. The expense of the first samples will be deducted in your money which you give us for the formal order.
Question: How to guarantee the stable quality of products?
Answer: EDGEV represent the current level of manufacturing of cutting tools in China, in some ways, our products can replace the cutting tools of world-renowned brands, such as Sandvik, Mitsubishi, Sumitomo Electric, Kyocera and others products. Whatever the quality or price of tools, we have the perfect advantages. We would like to give you a satisfactory answer if you would like to test.
About Delivery Time
Answer: As for the products which meet ISO international standard, we have plenty of products. Without special reasons, we can ship out the items in 48 hours after the order is confirmed. For those non-standard with special needs, you can get the samples in 25-35 days, the formal order can be delivered in the 5~ 15 workdays.
About Service & Support
Our English language support staff work 24 hours a day to provide you with assistance on questions that you do not find answered in our FAQ section.
Packaging Details
Sometimes, we often meet with the bad weather or careless dealing with the goods by the logistics company in transportation process. Some unnecessary damage may happen. To prevent accidents caused by these reasons, our company adapts first-class product packaging from the Chinese product suppliers. The transportation of goods can be a process which is shockproof, waterproof, anti-rust and anti-corrosion.
