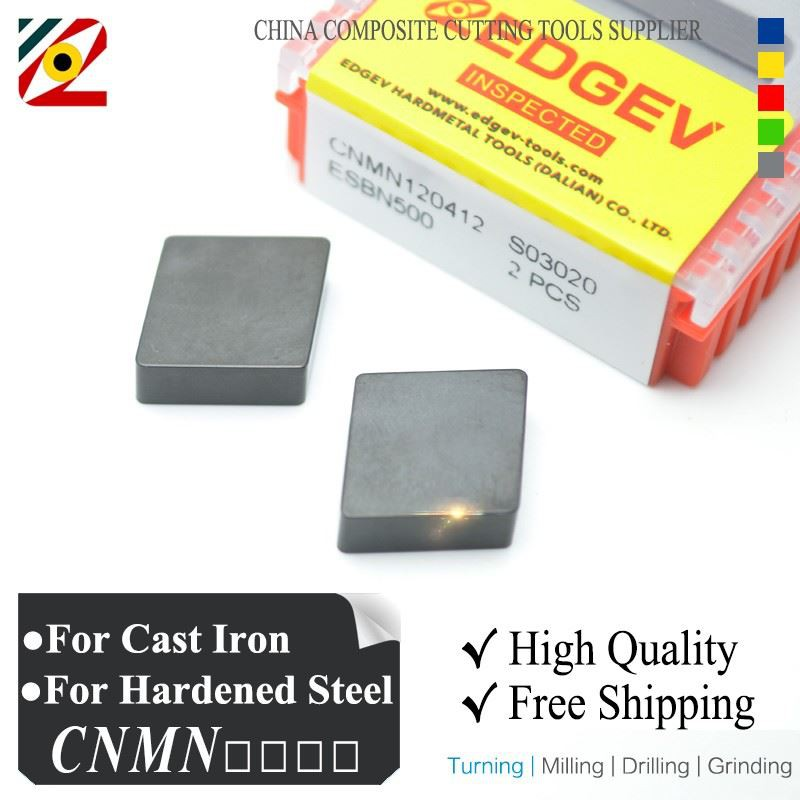

EDGEV 2 Pieces Boron Nitride CBN Insert TNGA160404 TNMG160408 or TNGA331 Blade for cutting Hardened Steel or Cast iron Factory
| Quantity: | |
|---|---|
Products Details:
01.Brand Name: EDGEV
02.Description: Solid CBN Inserts
03.ISO Specification:
CNMN120404 S01020(IC:12.7mm*Thickness4.76mm)
CNMN120408 S02020(IC:12.7mm*Thickness4.76mm)
CNMN120412 S02020(IC:12.7mm*Thickness4.76mm)
CNMN120416 S02020(IC:12.7mm*Thickness4.76mm)
CNMN120704 S01020(IC:12.7mm*Thickness7.94mm)
CNMN120708 S02020(IC:12.7mm*Thickness7.94mm)
CNMN120712 S02020(IC:12.7mm*Thickness7.94mm)
CNMN120716 S02020(IC:12.7mm*Thickness7.94mm)
05.Material: Cubic Boron Nitride(CBN)
06.Chamfer Land: S01020/S02020
07.CBN Grade:
ESBN200(For H-hardened steel)
ESBN350(For K-Cast iron)
ESBN500(For K-Cast iron)
08.Features: Excellent wear resistance and excellent impact and shock resistance.
09.Application: Suitable for continuous and interrupted turning and milling with high cutting speed of alloy steel, hardened steel and bearing steel.
10.Work Piece Hardness: HRC50~65

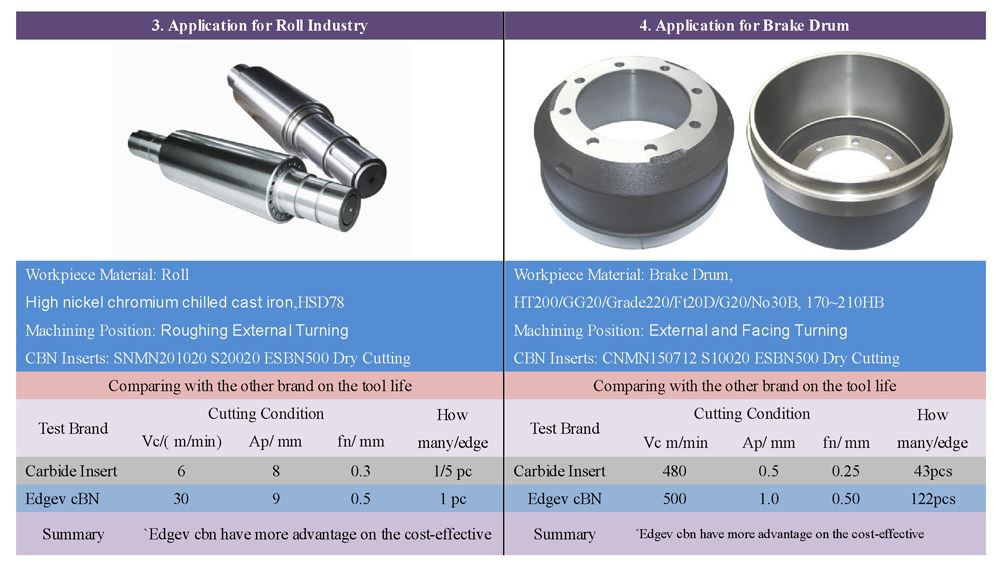

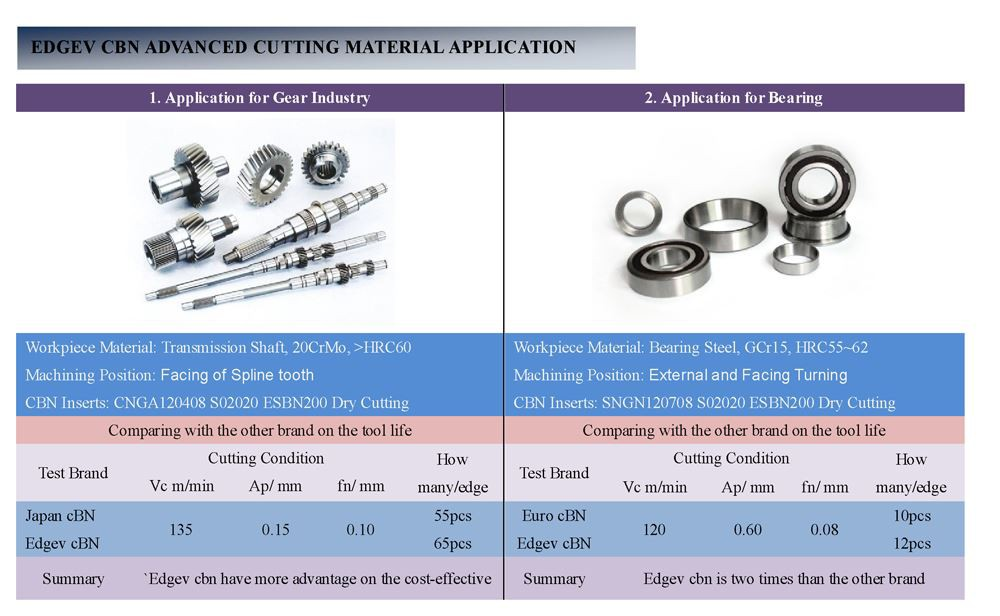

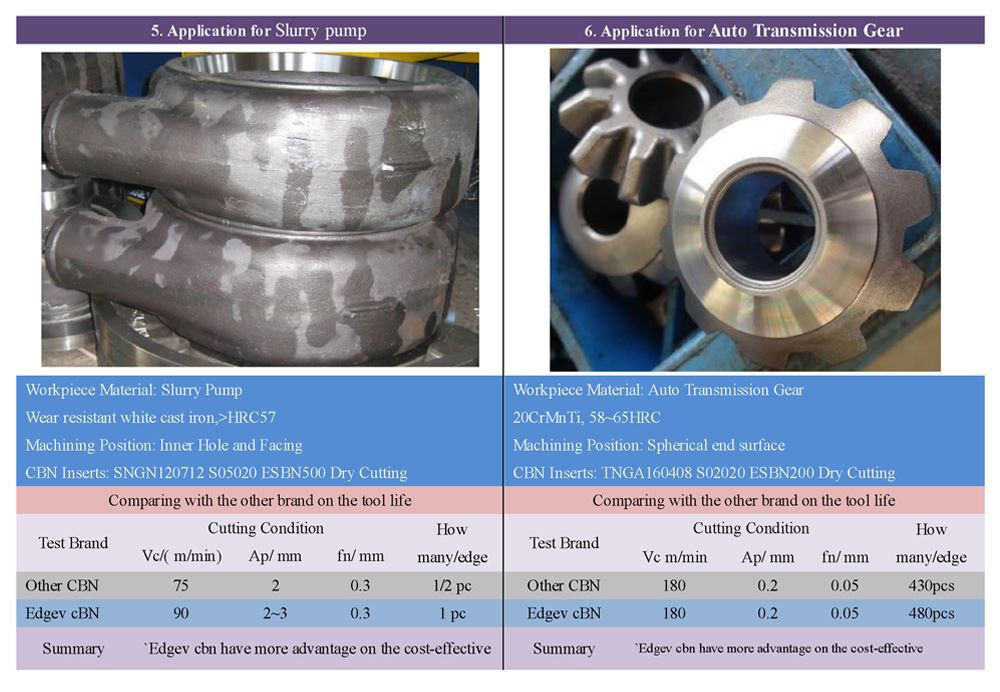

11.Work Piece:Break disc,Belt pulley,Gear,Bear,Metallurgical roll,Pump,Mining machinery,Brake drum,Brake disc,Metallurgical roll,Big gear,Slewing bearing industry,Gearingindustry,bearing industry
12.Color: Black
13.Application Range: For Finishing to Semi-finishing Roughing
14.Available Tool Holder:
15.Place of Origin: China
16.Mini Order: 2 pcs/Box
17.Net Weight: 10/15g/Piece
18.Gross Weight: 120g

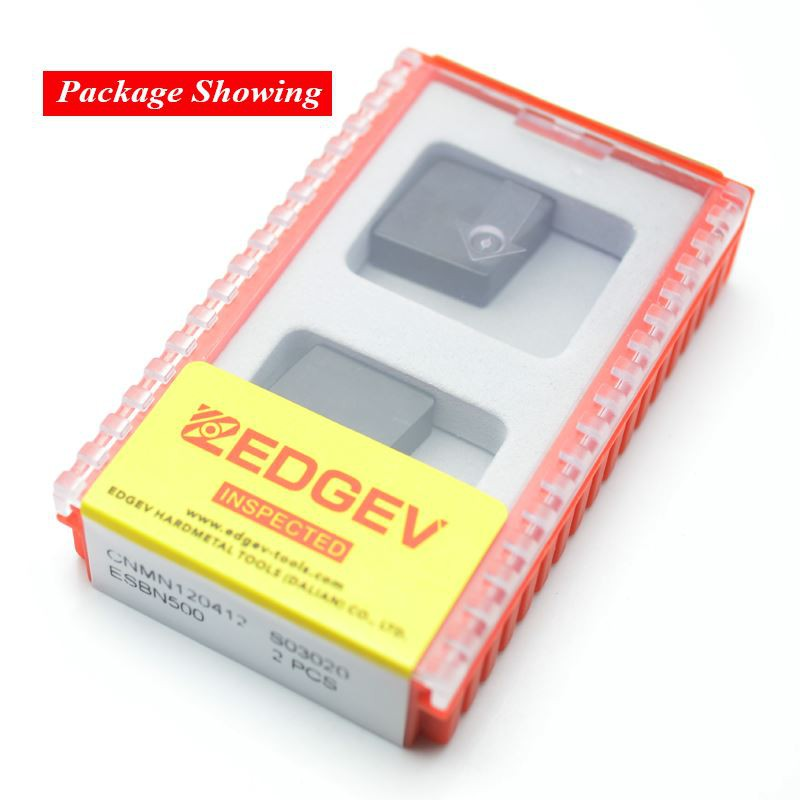

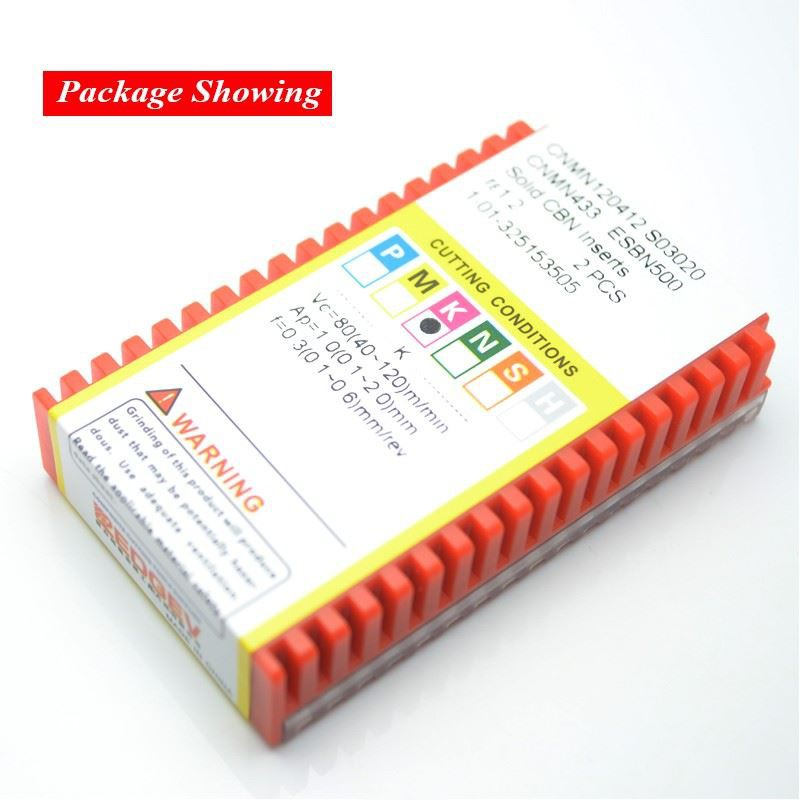

19.Packing: 2 Pieces Packed In One Plastic Box /lot
EDGEV CBN Inserts:
EDGEV Solid CBN is polycrystalline cubic boron nitride; Solid CBN is made from HBN sintered under the process of supper high temperature and supper high press, the hardness approach the PCD cutting tools. these are chemistry and hot stability and high wear resistant than others cutting tool.
Advantages
1.Good wear resistance for high speed cutting of Hardened steel and grey cast iron.
2.Achieves superior economic efficiency in the machining of hardened materials.
Application
1.Roughing and finishing of Cast Iron, Hardened steel(HRC45~ HRC65)
2.Used be for Mould, Rolls and Auto Industries
3.Longer Tool Life and High Speed Machining
Our CBN Grade:
1.ESBN200: 60% CBN Content, Excellent wear resistance, suitable for high speed cutting continuous of hardened steel, alloy material. Precision processing of hardened bearings
2.ESBN350: 80% CBN Content, It’s the outstanding common material of balance wear resistance and shock resistance and economy. Low speed cutting of high hardness High-Ni-Cr, high-chromium steel, high-speed steel, harden steel. high speed cutting of gray cast iron, nodular cast iron, low-speed cutting of the carbide tungsten roll ring.
3.ESBN500: 90% CBN Content, High Wear resistance, impact resistance. Apply to the high-speed cutting of the gray cast-iron, Nodular cast iron work pieces. Suitable for medium-high-speed cutting of the alloy steel.
How to Identify Edge Preparation?
1.Symbol:F, That means is Sharper Edge, applied for finishing
2.Symbol:T, That means is Chamfered Edge, applied for finishing to semi-finishing, for example:T00520(0.05mm*20 degree)
3.Symbol:S, That means is Chamfered and honed Edge, applied for roughing to semi-finishing, for example:S01020(0.1mm*20 degree)
