MCLNR1616H12 Tool Holder

EDGEV MCLNR1616H12 MCLNL1616H12 MCMNN1616H12 MCGNR MCGNL CNC Tool Holder Turning Tools CNMG120408 Insert

Quantity:
facebook sharing button
wechat sharing button
linkedin sharing button
sharethis sharing button

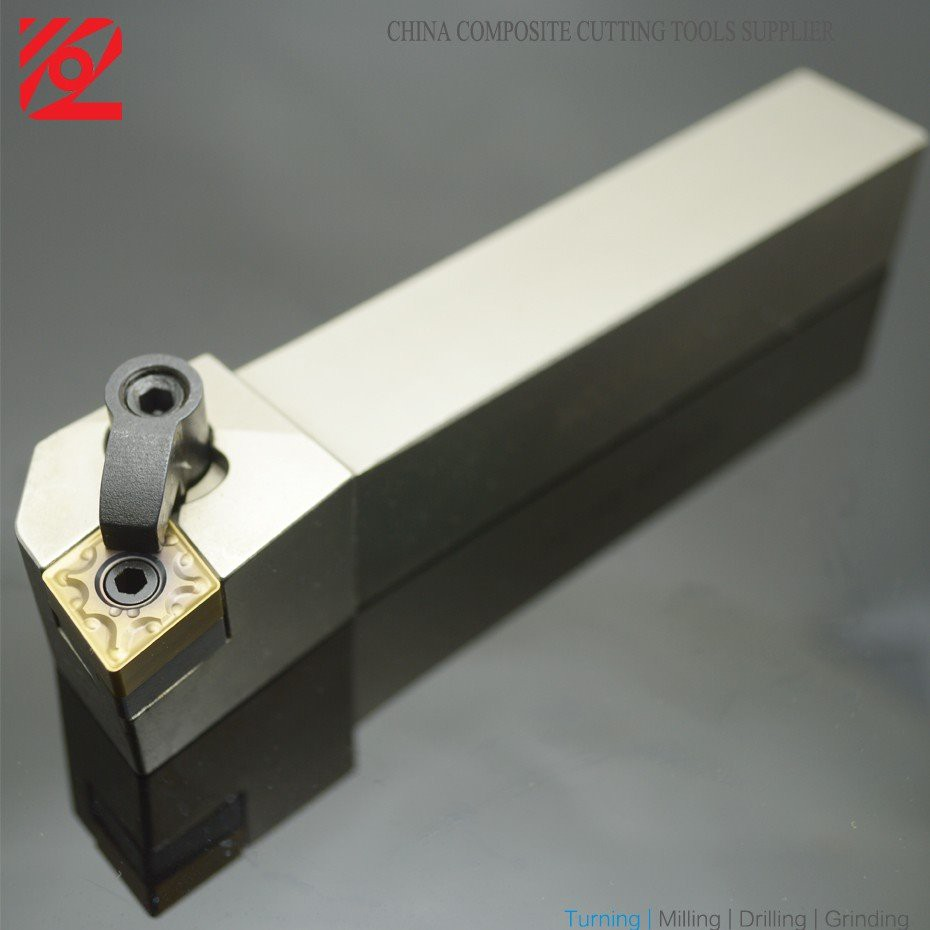

EDGEV MCLNR1616H12 MCLNL1616H12 MCMNN1616H12 MCGNR MCGNL CNC Tool Holder Turning Tools CNMG120408 Insert

HTB1bDu6jeuSBuNjSsplq6ze8pXa1

External Tool Holder Code System (ISO Standard)

01. Application: External Turning Tools
02. ISO Designation:

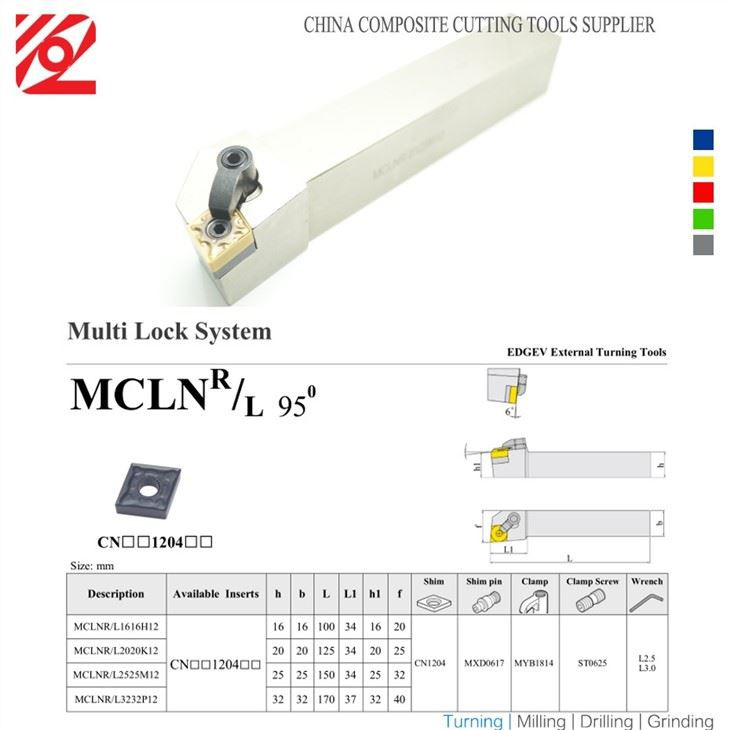

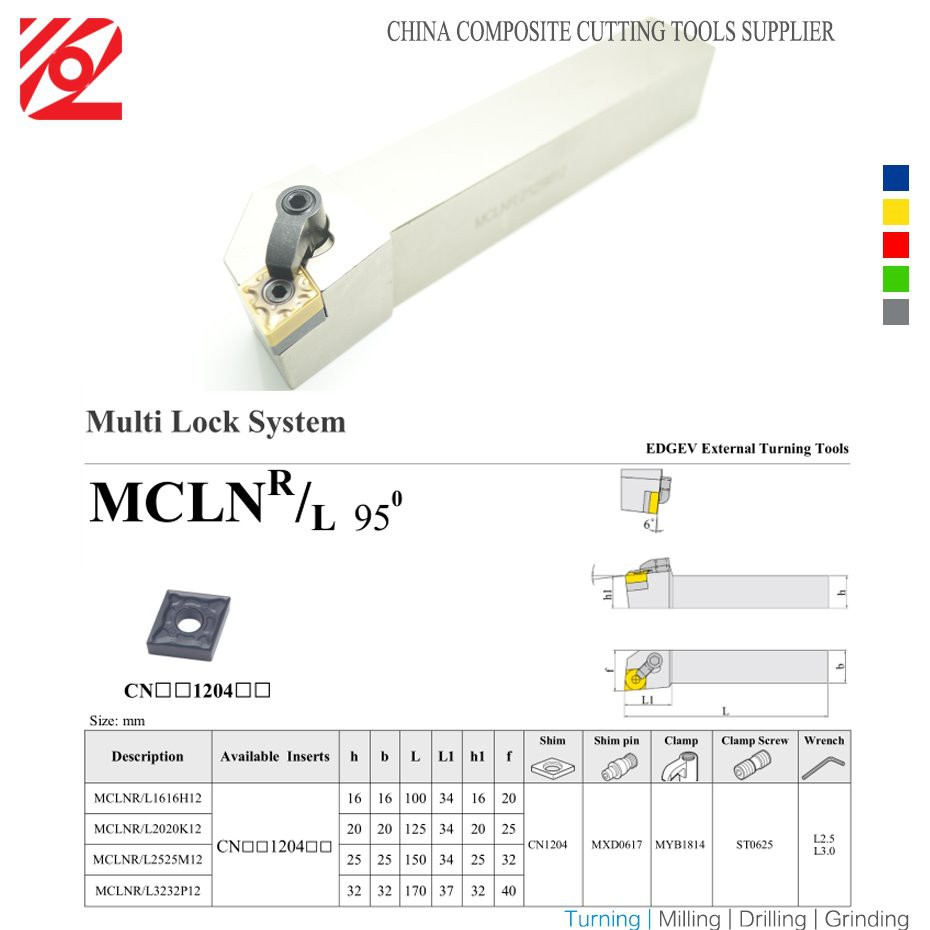

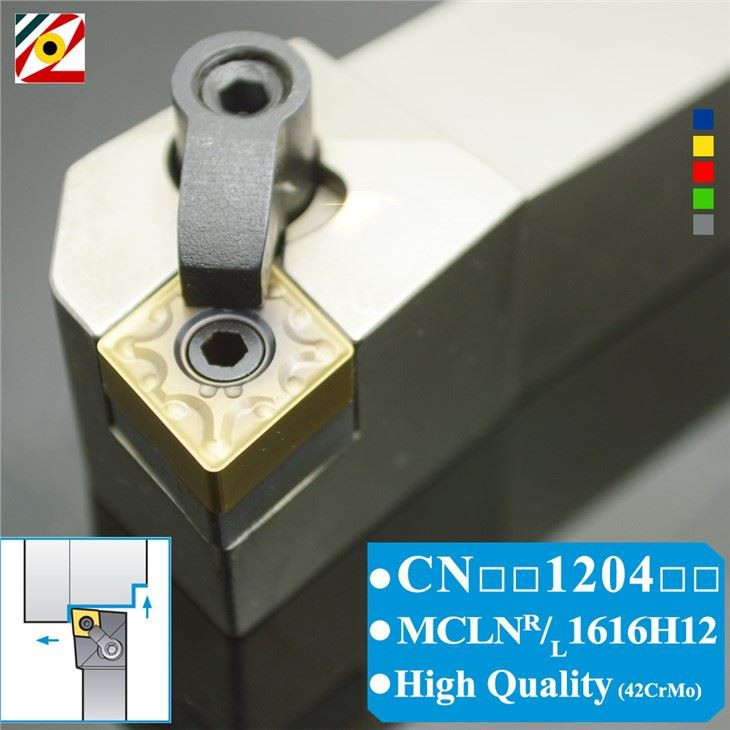

MCLNR/L1616H12
MCMNN1616H12
MCGNR/L1616H12
03. Clamping Method: Screw on
04. Available Inserts:CNMG120404/08/12
05. Size of Shank:H16mm*W16mm*L100mm
06. Material: 42CrMo(Alloy Spring Steel)/Hardness: HRC45-50
07. Color: Grey/Black
08. Heat Treatment Support: NIHON TECHNO TECHNOLOGY(JAPAN)
09.Net Weight:230g

10.Gross Weight:260g

Hfd9c2c1a4b504a3ca1f72267c7ac1f308

Hc253af661bc146249554e30bd2f6099an

HTB116pfoBcHL1JjSZJiq6AKcpXa2

HTB1mxK0XbPx2eJjSZFBq6zmZVXaW

HTB1NNSyf6uhSKJjSspaq6xFgFXaC
