MTQNR2020K16 MTQNL2020K16 Tool Holders

EDGEV MTQNR2020K16 MTQNL 2020K16 MTQNR Indexable TurningTool Holders For Indexable Carbide Insert TNMG1604 External Tool Holder Code System (ISO Standard) 01. Application: External Turning Tools Shank, Indexable TurningTool Holders 02. ISO Designation:MTQNR2020K16/ MTQNL2020K16 03. Clamping...

Quantity:
Inquire Add to Basket

facebook sharing button
wechat sharing button
linkedin sharing button
sharethis sharing button

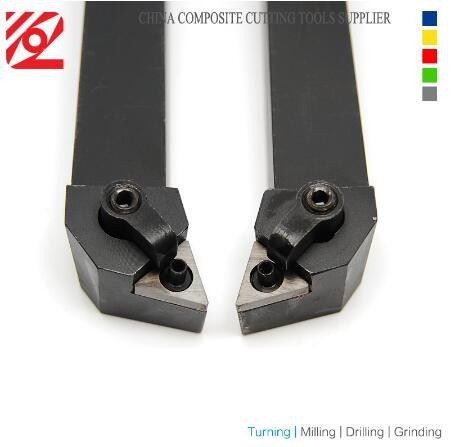

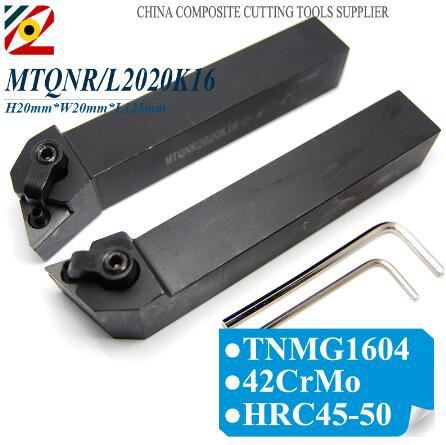

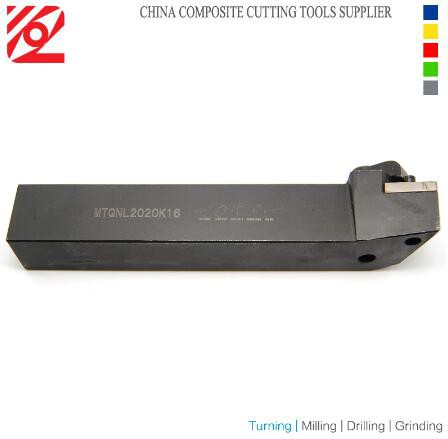

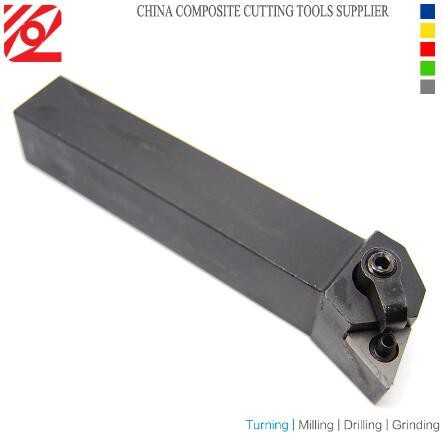

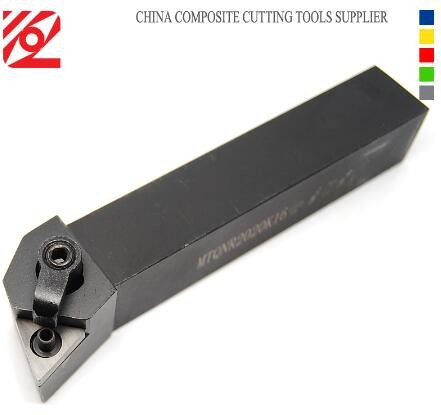

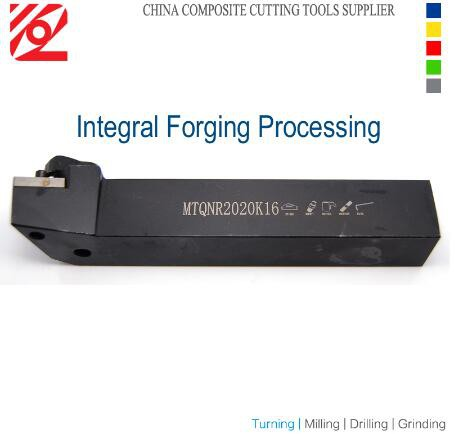

EDGEV MTQNR2020K16 MTQNL2020K16 MTQNR Indexable TurningTool Holders For Indexable Carbide Insert TNMG1604202003191002473631641

  • External Tool Holder Code System (ISO Standard)

01. Application: External Turning Tools Shank, Indexable TurningTool Holders
02. ISO Designation:MTQNR2020K16/ MTQNL2020K16
03. Clamping Method: Top and hole clamping
04. Available Inserts: TNMG160404/08/12
05. Approach Angle: 105 Degree
06. Clearance Angle of Inserts: 0 Degree
07. Size of Sh ank: H20mm*W20mm*L125mm
08. Material: 42CrMo(Alloy Spring Steel)
09. Hardness: HRC45-50
10. Color: Black

11. Heat Treatment Support: NIHON TECHNO TECHNOLOGY(JAPAN)

Indexable TurningTool HoldersQQ20210126144601QQ20210126144552QQ20210126144612

1 (2)
