CNC lathes have become the cornerstone of modern machining, enabling manufacturers to achieve high precision, efficiency, and versatility in producing complex components. Among these, CNC Heavy Duty Lathes stand out for their capability to handle large, heavy workpieces, which makes them indispensable in industries such as aerospace, automotive, and heavy machinery manufacturing. This article delves into the technology behind CNC Heavy Duty Lathes, highlighting their types, specifications, and applications, providing an in-depth guide to understanding how these powerful machines are revolutionizing the world of machining.
A CNC (Computer Numerical Control) Heavy Duty Lathe is a robust machine designed for high-performance turning operations, specifically engineered to handle larger, heavier workpieces with precision. Unlike standard CNC lathes, which are typically used for smaller parts, CNC Heavy Duty Lathes are built to endure the stresses and demands of larger-scale operations. These machines can process a wide range of materials, including metals, plastics, and even wood, making them versatile tools in advanced manufacturing.
Key features that set CNC Heavy Duty Lathes apart include high torque motors, heavy-duty spindle bearings, and rigid frames designed to minimize vibrations during operation. These elements allow the lathe to perform precision turning, boring, and threading on heavy, bulky workpieces, often in industries requiring stringent accuracy.
The history of CNC lathes dates back to the mid-20th century, when the first automated machines began to replace manual lathes. The transition from manual to CNC technology was driven by the need for greater efficiency, precision, and consistency in manufacturing processes. Pioneers like John T. Parsons were instrumental in advancing CNC technology, particularly in the aerospace industry, where the demand for highly accurate parts was paramount.
The early 1940s and 1950s marked a significant shift in machining, with the development of CNC machines capable of controlling the toolpath through G-code programming. Over the decades, CNC technology has continued to evolve, and CNC Heavy Duty Lathes have become an essential tool in the production of large and complex components.
A CNC Heavy Duty Lathe operates based on a series of precise steps that begin in the design phase. Using CAD (Computer-Aided Design) software like AutoCAD or SolidWorks, engineers create detailed models of the parts to be machined. These models are then translated into machine-readable G-code using CAM (Computer-Aided Manufacturing) software like Mastercam or Fusion 360.
Once the design is finalized, the setup process begins. The heavy workpiece is securely clamped onto the chuck or tailstock, ensuring stability during high-speed rotation. The CNC controller guides the lathe's movements with extreme accuracy, directing the cutting tool to remove material at precise points on the workpiece. Throughout the machining process, quality control mechanisms ensure that every component meets the required tolerance levels.
· Main Spindle: This is the core component responsible for holding and rotating the workpiece. It is designed to withstand high torque, making it ideal for heavy-duty applications.
· Chuck and Tailstock: These components provide extra stability for larger parts, ensuring that they remain firmly secured during machining operations.
· Tool Turret: This allows for quick tool changes, essential for multi-process machining and reducing downtime.
· CNC Controller: The heart of the lathe, which directs all operations and ensures precision throughout the machining process.
· Bed, Carriage, and Headstock: These provide the foundational support necessary for heavy-duty workloads.
· Coolant System and Chip Conveyor: These systems manage the temperature and remove debris, preventing overheating and maintaining optimal machining conditions.
1. 2-Axis CNC Heavy Duty Lathe: This machine is ideal for simple, symmetrical parts and general manufacturing operations such as cylindrical turning and facing.
2. 3-Axis CNC Heavy Duty Lathe: With an additional Y-axis, this machine is capable of creating more intricate shapes and performing off-center operations, often used in aerospace for precision components.
3. 4-Axis CNC Heavy Duty Lathe: Featuring a C-axis for rotational movement, this lathe excels at producing complex contours and is commonly used in automotive and aerospace industries.
4. 5-Axis CNC Heavy Duty Lathe: This machine can perform multi-directional cutting, allowing for high-precision parts used in aerospace, medical devices, and custom prototyping.
5. 6 or More Axis CNC Heavy Duty Lathe: The pinnacle of precision, these lathes offer maximum flexibility and are used in advanced engineering and research sectors for ultra-precise components.
· Horizontal CNC Heavy Duty Lathe: Ideal for large, cylindrical parts, horizontal lathes offer superior chip evacuation and are perfect for long, heavy workpieces requiring high stability during machining.

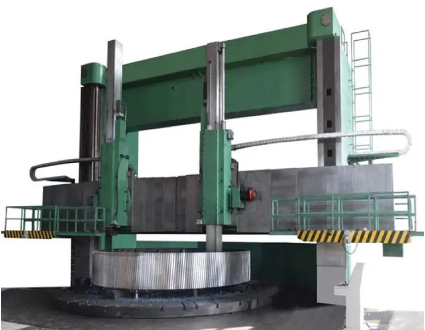

· Vertical CNC Heavy Duty Lathe: With a vertical orientation, these machines provide better access for securing larger diameter parts. They are best suited for short, heavy workpieces that require efficient clamping.
CNC Heavy Duty Lathes are capable of performing a wide range of operations, including:
· Turning, facing, drilling, boring, and reaming
· Threading, knurling, grooving, and parting
· Cutoff and eccentric turning for complex geometries
· Multi-axis operations for simultaneous cutting and intricate designs
These machines are also adept at CNC milling and chamfering, ensuring that off-center machining and precision features are achieved with ease.
To ensure the precision and efficiency of operations, various software tools are used in CNC Heavy Duty Lathe programming:
· CAD Software (e.g., AutoCAD, SolidWorks) for detailed design creation
· CAM Software (e.g., Mastercam, Fusion 360) to convert designs into G-code
· CNC Simulation Software (e.g., VERICUT) for previewing operations and detecting errors before actual machining
· Toolpath Generation Software to optimize cutting paths for efficiency
· Machine Monitoring Software to track machine performance and schedule maintenance
CNC Heavy Duty Lathes are known for their impressive accuracy, achieving precision tolerance levels of up to ±0.0005 inches (±0.0127 mm). These machines also offer high repeatability, making them ideal for large-scale production runs where consistency and quality are paramount.
With proper maintenance, the average lifespan of a CNC Heavy Duty Lathe is around 10-15 years. Regular maintenance, such as proper lubrication and software updates, can significantly extend the machine's operational life and maintain its productivity.
To get the most out of a CNC Heavy Duty Lathe, operators should:
· Understand the machine's capabilities and limitations
· Select the appropriate tools for heavy-duty materials
· Optimize toolpaths to improve machining efficiency
· Implement regular maintenance and software updates
· Follow safety protocols and troubleshoot common issues as they arise
The primary differences between CNC Heavy Duty Lathes and regular lathes lie in their control systems, precision, and complexity. CNC Heavy Duty Lathes are automated and offer significantly higher precision and repeatability, making them suitable for mass production of large, complex parts. In contrast, regular lathes are manual and typically used for smaller, simpler tasks.
CNC Heavy Duty Lathes play a critical role in modern manufacturing, particularly in industries that require the production of large and complex parts with high precision. These machines offer unparalleled efficiency, accuracy, and versatility, making them indispensable for applications ranging from aerospace to automotive manufacturing. Choosing the right CNC Heavy Duty Lathe for specific applications can dramatically improve production quality and reduce costs, ensuring long-term success in today’s competitive manufacturing landscape.
