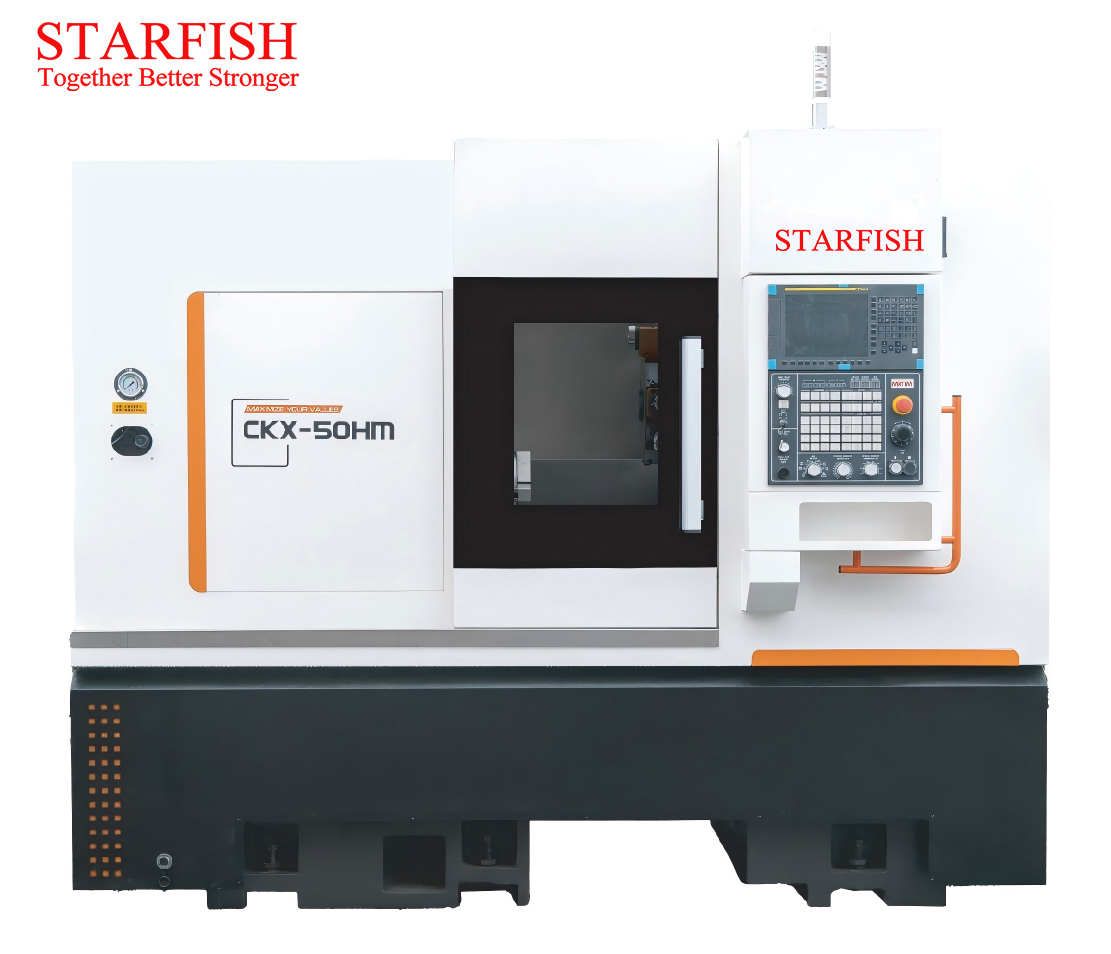

Introduction of CNC Slant Bed Turning Milling Center
1. The slant-bed Turning Milling Lathe with three-axis linkage and semi-closed loop. High precision and good thermal stability. Modular design, fully enclosed protection, computer-aided optimised structure. Long-term aging treatment of key parts, advanced equipment processing. The bed and related important parts are made of high-quality cast iron material, scientific and reasonable structural design to ensure the high precision requirement of the whole machine.
2. Slant bed turning center bed: cast from high-quality high-strength cast iron material, 30°tilted layout, strong rigidity and good shock resistance, smooth chip removal to ensure the high rigidity requirements of the whole machine;
3. Slant bed lathe with Y axis spindle: high-precision and high-quality bearings, optimal span design, high-precision double-row cylindrical roller bearings with strong rigidity, the maximum speed of up to 4000rpm; The components meet the requirements of high rigidity, high precision and high speed; the spindle is equipped with servo main motor as standard, which can achieve precise positioning.

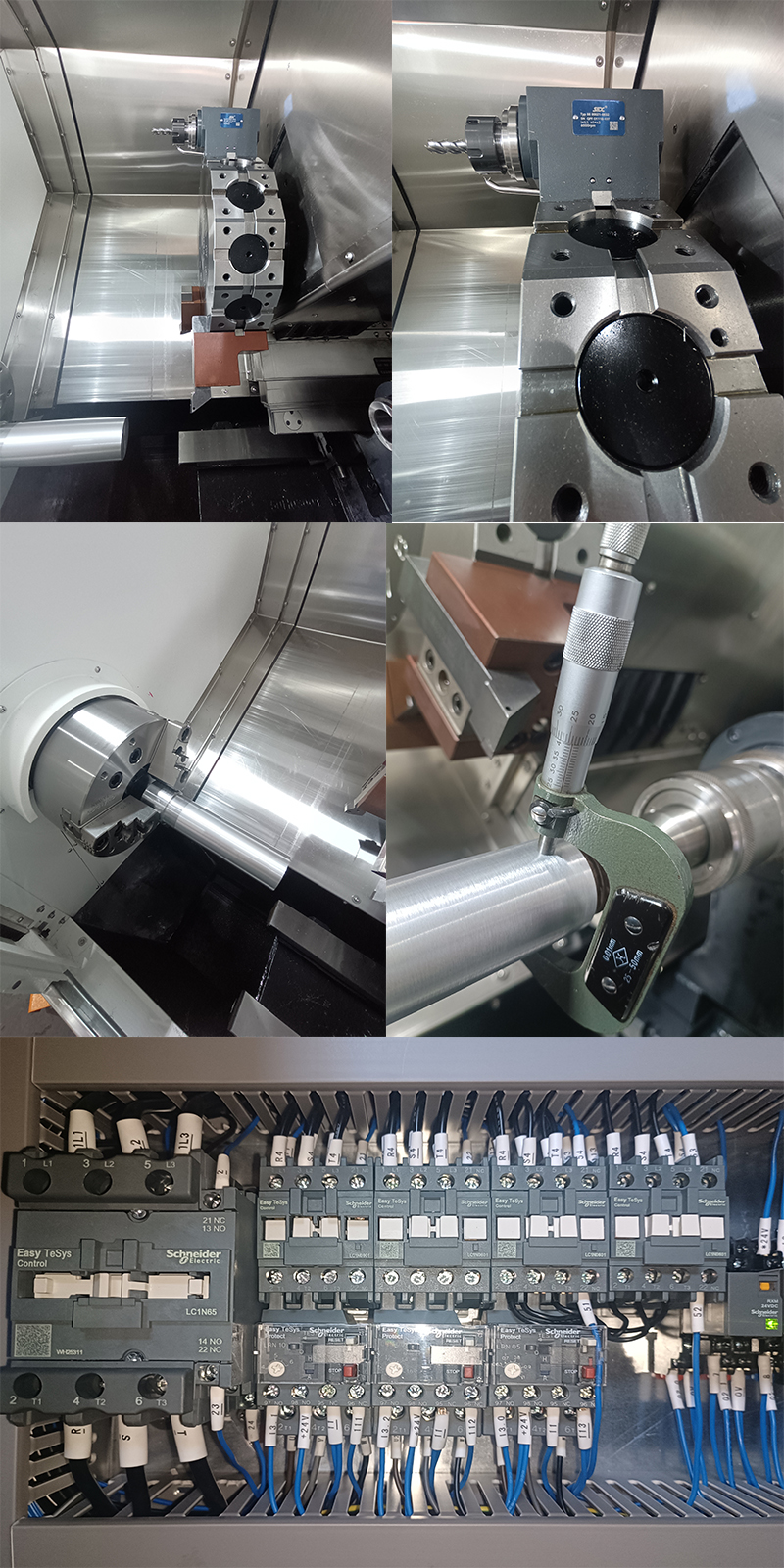

Details of CNC Turning Milling Center
Parameter
Item | Unit | CKX40HM | CKX50HM | CKX60HM |
Max. sweing over bed | mm | Ф460 | Ф560 | Ф700 |
Max.swing over carriage | mm | Ф230 | Ф280 | Ф320 |
Max.Turning diameter: dics/shaft | mm | Ф280(dics)/Ф220(shaft) | Ф310(dics)/Ф260(shaft) | Ф400(dics)/Ф300(shaft) |
Max. turning length | mm | 250 | 400 | 630 |
Hollow hydraulic chuck | inch | 6''/8'' | 8''/10'' | 10'' |
Spindle head type | mm | A2-5 | A2-5 | A2-8 |
Spindle bore diameter | mm | Ф56 | Ф66 | Ф93 |
Max. Bar diameter | mm | Ф45 | Ф51 | Ф74 |
Spindle motor power | kW | 7.5/11(servo) | 11/15(servo) | 15/18.5(servo) |
Spindle speed range | RPM | 30-4000 | 30-4000 | 50-2500 |
Axis travel X/Z/Y | mm | 230/470/±35 | 235/480/±50 | 250/720/±50 |
Rapid feed rate X/Z/Y | mm | 18/20/10 | 18/20/10 | 16/20/10 |
Motor torque X/Z/Y | Nm | 10N/10N/10N((GSK) 11N/11N/11N(FANUC) | 5N/15N/15N(GSK) 11N/11N/11N(FANUC) | 15N/15N/15N((GSK) 11N/11N/11N(FANUC) |
Ball screw mode X/Z/Y | mm | Ф32/Ф32/Ф25 | Ф32/Ф40/Ф40 | Ф40/Ф40/Ф40 |
Linear guideway rail width X/Z/Y | mm | 35/35/hard rail | 45/45/hard rail | 45/45(roller/hard rail |
Tool acount | 12 | 12 | 12 | |
Tool size(external diameter/boring tool/powertool) | mm | 16*16/Ф25/BMT40ER20 | 25*25/Ф32/BMT55 ER32 | 25*25/Ф32/BMT55 ER32 |
Power tool motor | rpm | 4000 | 4000 | 4000 |
Position accuracy (X axis) | mm | 0.005 | 0.006 | 0.008 |
Position accuracy (Z axis) | mm | 0.006 | 0.007 | 0.008 |
Position accuracy (Y axis) | mm | 0.01 | 0.01 | 0.01 |
Repeatability position accuracy (X axis) | mm | 0.003 | 0.003 | 0.004 |
Repeatability position accuracy (Z axis) | mm | 0.004 | 0.004 | 0.006 |
Repeatability position accuracy (Y axis) | mm | 0.008 | 0.008 | 0.008 |
Tailstock sleeve diameter | mm | Ф65 | Ф80 | Ф110 |
Tailstock sleeve travel | mm | 80 | 80 | 150 |
Tailstock sleeve tapered hole | MT No. | MT4 | MT5 | MT5 |
Bed form and slope | Integral/30° | Integral/30° | Integral/30° | |
Machine tool size(LXWXH) | mm | 2260x1850x2050 (not include conveyor) | 2280x1910x2320 (not include conveyor) | 3060x1900x2400 (not include conveyor) |
Machine tool weight | kg | Approx. 3000 | Approx. 4000 | Approx. 5700 |
