Feature of Vertical automatic balancing machine Vertical automatic balancing machine, specificaly developed for the balancing of assembled cutches, pulley, drum, flywheel, Differential, Damper etcon one plane (static) The unbalance is automatically corrected by dilling(horizontal and/or...
Providing notable merchandise that humans can actually believe and purchase is one of our obligations as a main transportation manufacturing facility in China, such as We feel that a passionate, ground breaking and well-trained workforce can create fantastic and mutually useful business associations with you quickly. Be sure to really feel totally free to contact us for more particulars.

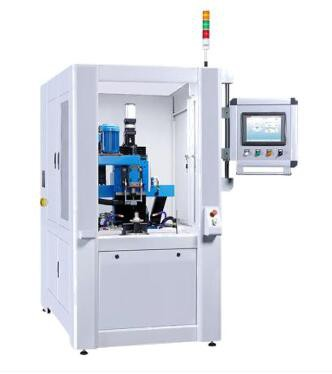

Feature of Water pump Impeller Vertical Balancer
1.Manual loading or unloading
2.12 inch touch screen
3.Advanced balancing software
4.Automatic measuringdrilling and retesting
5.Twice correction or more can be excuted by removing-weight
6.Rigid bed-structure design ensures long service life
7.It is widely used to balance clutch flywheel pulley pump impeller etc
Advantages of Water pump Impeller Vertical Balancer
High balancing precision
User friendly
Quick return on investment
Parmeter of Water pump Impeller Vertical Balancer
Single-Station Water pump Impeller Vertical Balancer
Item | PHLZ1-5 | PHLZ1-35 | PHLZ1-150 |
Mass of Workpiece(kg) | 5(clamp included) | 35(clamp included) | 150(clamp included) |
Max Height of Workpiece (mm) | 200 | 200 | 200 |
Max Diameter of Workpiece (mm) | 40-400 | 100-400 | 200-600 |
Balancing Speed（r/min) | 800 | 800 | 800 |
Motor Power（kw） | 0.75 | 1.5 | 7.5 |
Min Achievable Residual Unbalance Amount (g.mm/kg) | 3 | 3 | 3 |
Drilling Speed（r/min） | 1500 frequency conversion | 1500 frequency conversion | 1500 frequency conversion |
Cutting Spindle Motor Power(kw) | 0.75 | 0.75 | 1.5 |
Max Allowed Correct Times | 2 | 2 | 2 |
Machine Weight(ton) | 1.5 | 1.5 | 2 |
Dimensions(mm) | 950*1700*2000 | 950*1700*2000 | 950*1700*2000 |
Pressure(Mpa) | 0.4-0.6 | 0.4-0.6 | 0.4-0.6 |
Processing Period(s) | 8-12 | 8-12 | 15-20 |
Total Power（kw） | 7.5 | 8 | 15 |
Rotor thickness (mm) | 150 | 150 | 200 |
Operating Voltage（v） | AC:380External | AC:380External | AC:380External |
Drilling Method | Standard drill | Standard drill | Standard drill |
Balancing Machine Type | Hard bearig bracket | Hard bearig bracket | Hard bearig bracket |
Average Gas Consumption | 6 L/min | 6 L/min | 6 L/min |
Unbalance Reduction Rate | ≥95% | ≥95% | ≥95% |
Protection | Phase sequence protection. Overload protection. Pressure detection | ||
Strict Product Quality Control
After sales service:
Operating
1. Machine match with English version manual instruction and operation CD (easy to learn )
2. Provide online support, like whatsapp,video conference and phone call (guide step by step)
Training
1. Training in Manufacturer workshops (for free)
2. Training in buyers company (for charge,normally two or three days needed )
1st day: inspection cable connection,the finished foundation is qualified guide customer know each components name and functions as well
2nd day: demo and teach user do calibration(vetical+honrizontal+Mathematical+ Physical mode) use customer workpieces do dynamic balance See the buyer operating the machine separately
3rd day: review all operation step and learn each parts maintenance method.
Troubleshooting
1. Before delivery :Special QC department check carefully ensure all is qualified with high quality
2. Through see customer actual photos or short video, using discussed group or email or video meeting or phone call give solutions immediately
3. Use remote monitor to inspection
4. Dispatch engineer go to customer workshops onsite
Maintenance
1. During the warranty: free replace the Damaged or broke part by non-human causes
2. Over warranty :just pay components cost price, we have safety stock for all parts
3. Software updated lifetime for free when Manufacturer have new vesion
4. For simple operation issue, through whatsapp/video/phone call deal with directly
5. For difficult issue, invite engineer to help you repair or debugging onsite
6. We also can provide 365 days 24 hours online technical support
