CKX series has the capacity to handle large milling and large heavy turning needs more efficiently than any other source available. Operating two shifts per day allows us to be more responsive and do the necessary upfront planning to get the job done right the first time. We’re known for providing reliable experienced emergency onsite support and getting you up and running quickly.
The products are affordable and perfect for everyday use. Many years of work experience, we have realized the importance of providing good quality products and the best before-sales and after-sales services.

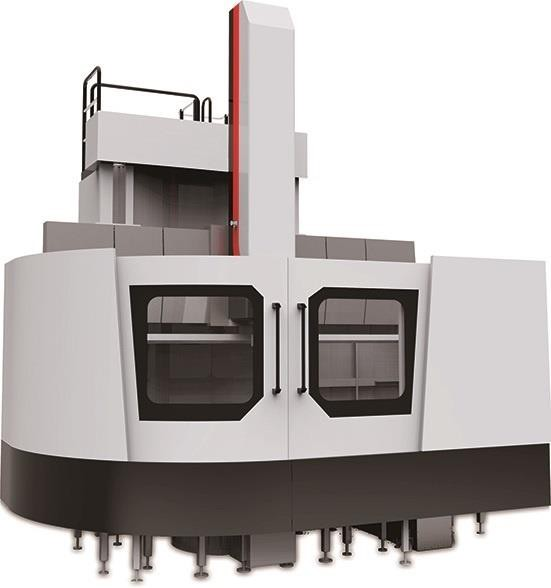

1.Product Introduction of Vertical Turn Mill Center
CKX series has the capacity to handle large milling and large heavy turning needs more efficiently than any other source available. Operating two shifts per day allows us to be more responsive and do the necessary upfront planning to get the job done right the first time. We’re known for providing reliable experienced emergency onsite support and getting you up and running quickly.
2. Advantage:
Our company adopts the international advanced resin sand casting process. The castings of CNC Vertical Lathe Machine are made of HT300 and HT250 and then tempered twice. The castings are tempered once before processing. The castings are subjected to secondary tempering after rough machining. The tempering is tempered to the greatest extent in the tempering kiln. Reduce the internal stress of the casting, and perform vibration aging before finishing to prevent the casting from deforming, thereby improving the accuracy of the machine tool.
3.Products Specification of Vertical Turn Mill Center
Item | Unit | SVTM1250 | SVTM160 | SVTM200 |
Max.machining diameter | mm | 1250 | 1600 | 2000 |
Max.machining height | mm | 1000/1200 | 1000/1200/1400 | 1000/1200/1400 |
Max. loading weight | kg | 5000 | 8000 | 12000 |
Table diameter | mm | 1000 | 1400 | 1800 |
Worktable speed range | r/min | 300 | 250 | 250 |
Max. table torque | Nm | 10550 | 12000 | 20000 |
Milling spindle max speed | r/min | 1800 | 2400 | 2400 |
Max workpiece weight | kg | 5000 | 8000 | 12000 |
X axis travel | mm | -400~ +1170 | -20~1110 | -20~1550 |
Z axis travel | mm
| 800 | 1000 | 1000 |
4.Glance of workshop of Vertical Turn Mill Center
5. Customers

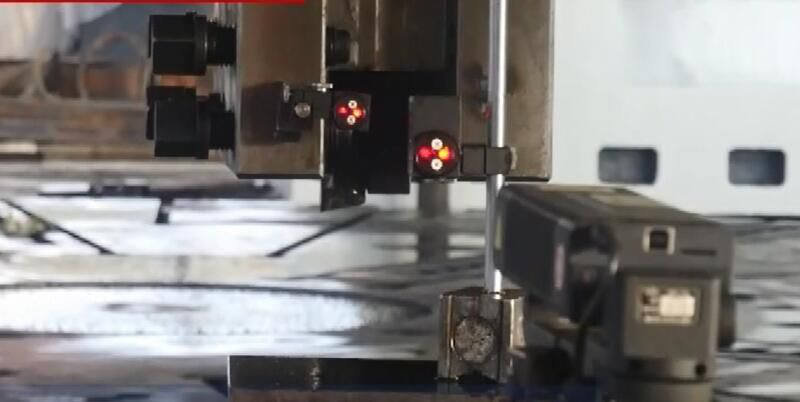

Serious testing
We believe in: Innovation is our soul and spirit. Quality is our life. Customer need is our God for turn mill center, The product will supply to all over the world, such as: Birmingham, Mozambique, Bahamas, Botswana, We guarantee that our company will try our best to reduce customer purchase cost , shorten the period of purchase , stable products quality , increase customers' satisfaction and achieve win-win situation .
