Basic components and main drive adopt thermal symmetrical structure to improve thermal stability.A two-stage planetary gear drive structure is used for the main drive which is driven by a wide field control DC motor or AC spindle motor.
abide by the contract", conforms on the market requirement, joins from the market competition by its good quality likewise as provides more comprehensive and superb support for customers to let them become large winner. The pursue of the company, is definitely the clients' pleasure for We have been additionally the appointed OEM manufacturing unit for a number of worlds' well-known merchandise brands. Welcome to contact us for greater negotiation and cooperation.
1.Product Introduction of Single Column Vertical Lathe With Drilling and Milling function
Single Column Vertical Lathe With Drilling and Milling offer the following advantages: Hand scraped heavy duty cast iron construction Large crossed roller table bearings with proprietary preload and lubrication techniques for high speeds, high payload capacity and increased rigidity and accuracy Hydrostatic table bearings Combination box ways for superior dampening, rigidity and long life Proprietary crossrail positioning and clamping for rigidity and accuracy Heavy duty ballscrews and supports for increased rigidity and life A proprietary tool adaption system providing extremely rigid coupling between ram and tool Performance enhancing options include: C axis and live spindle Larger capacity tool storage Increased traverse rates Part and tool probes Extended height and ram travel Special table sizes, speeds and power Special manual and hydraulic chucks.
2. Advantage:
Our company adopts the international advanced resin sand casting process. The castings of CNC Vertical Lathe Machine are made of HT300 and HT250 and then tempered twice. The castings are tempered once before processing. The castings are subjected to secondary tempering after rough machining. The tempering is tempered to the greatest extent in the tempering kiln. Reduce the internal stress of the casting, and perform vibration aging before finishing to prevent the casting from deforming, thereby improving the accuracy of the machine tool.
3.Products Specification of Single Column Vertical Lathe With Drilling and Milling funtion
The vertical lathe has C axis for milling, drilling, boring, tapping
Item | Unit | SVTM1250 | SVTM160 | SVTM200 |
Max.machining diameter | mm | 1250 | 1600 | 2000 |
Max.machining height | mm | 1000/1200 | 1000/1200/1400 | 1000/1200/1400 |
Max. loading weight | kg | 5000 | 8000 | 12000 |
Table diameter | mm | 1000 | 1400 | 1800 |
Worktable speed range | r/min | 300 | 250 | 250 |
Max. table torque | Nm | 10550 | 12000 | 20000 |
Milling spindle max speed | r/min | 1800 | 2400 | 2400 |
Max workpiece weight | kg | 5000 | 8000 | 12000 |
X axis travel | mm | -400~ +1170 | -20~1110 | -20~1550 |
Z axis travel | mm
| 800 | 1000 | 1000 |

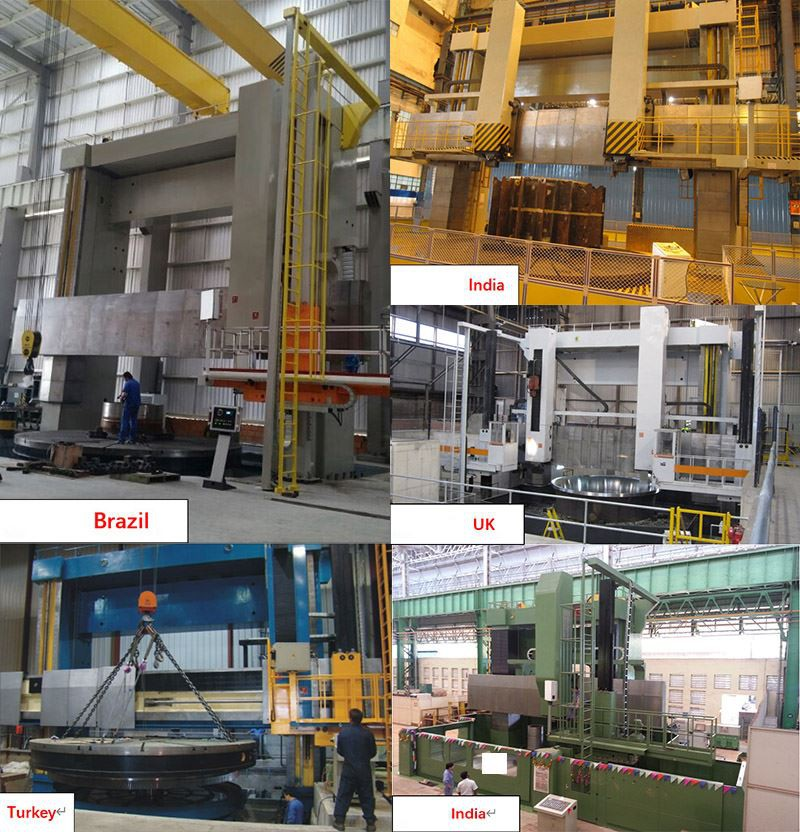

4. Customers
Our aim is to be honest and efficient, serve users, unite and enterprising, and strive for efficiency. single column vertical lathe with drilling and milling, The product will supply to all over the world, such as: Botswana, El Salvador, USA, Burundi, Our company always concentrate on the development of the international market. We have a lot of customers in Russia , European countries, the USA, the Middle East countries and Africa countries. We always follow that quality is foundation while service is guarantee to meet all customers.
