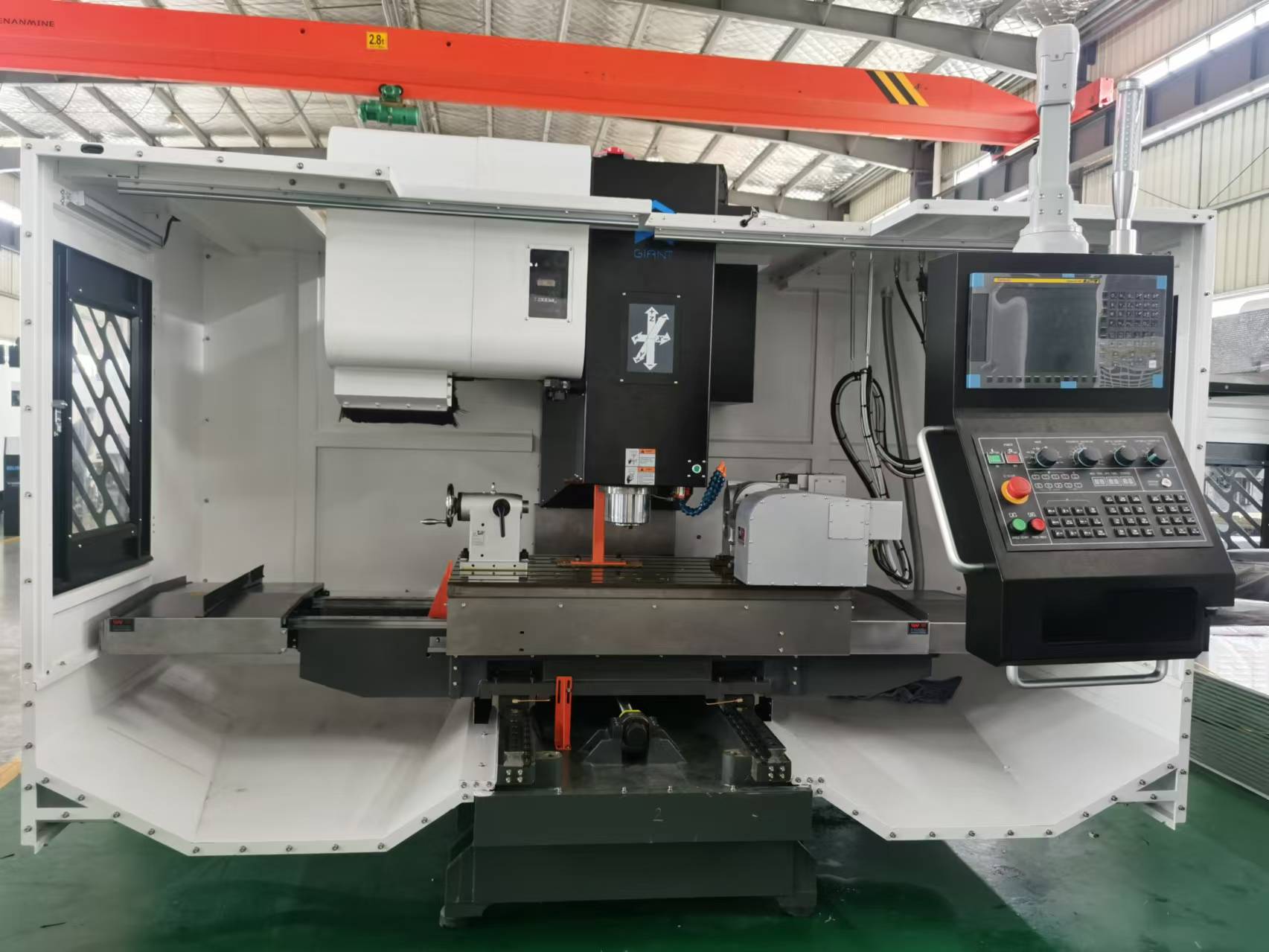

Vertical Machining Centers with 5th Axis

Feature of 5 axis vertical machining center

1. The machine bed, column, spindle box and other key components are used in high-precision castings, stable organization, permanent quality. The castings are analyzed by finite element analysis computer calculation, reasonable structural strength and reinforcing rib collocation, to provide high rigidity of the machinery. The casting structure adopts one-piece molding technology, box structure, and the processing adopts large pentahedral machining machine, which is completed by one-time clamping processing, and the machine tool has high rigidity, high strength, and excellent geometrical precision. The machine has high rigidity, high strength and excellent geometrical precision, and can guarantee the long-term stability and high precision of the machine. In order to prevent deformation after machining, the castings are thoroughly annealed to eliminate internal stress.

2. The base is wide, the column is triangular box structure, heavy load full support design, solid structure, can ensure the heavy load capacity during machining, high speed cutting vibration is small, low noise.

3. The symmetrical design of the left and right sides of the column balances the weight of both sides, which can maintain the stability of the machine accuracy.

4. The spindle box is reinforced with ribs, and the contact length ratio between the spindle box and column is appropriate to provide stable support for the spindle.
