Super Casting for CNC vertical lathe

Bed of CNC Vertical lathe

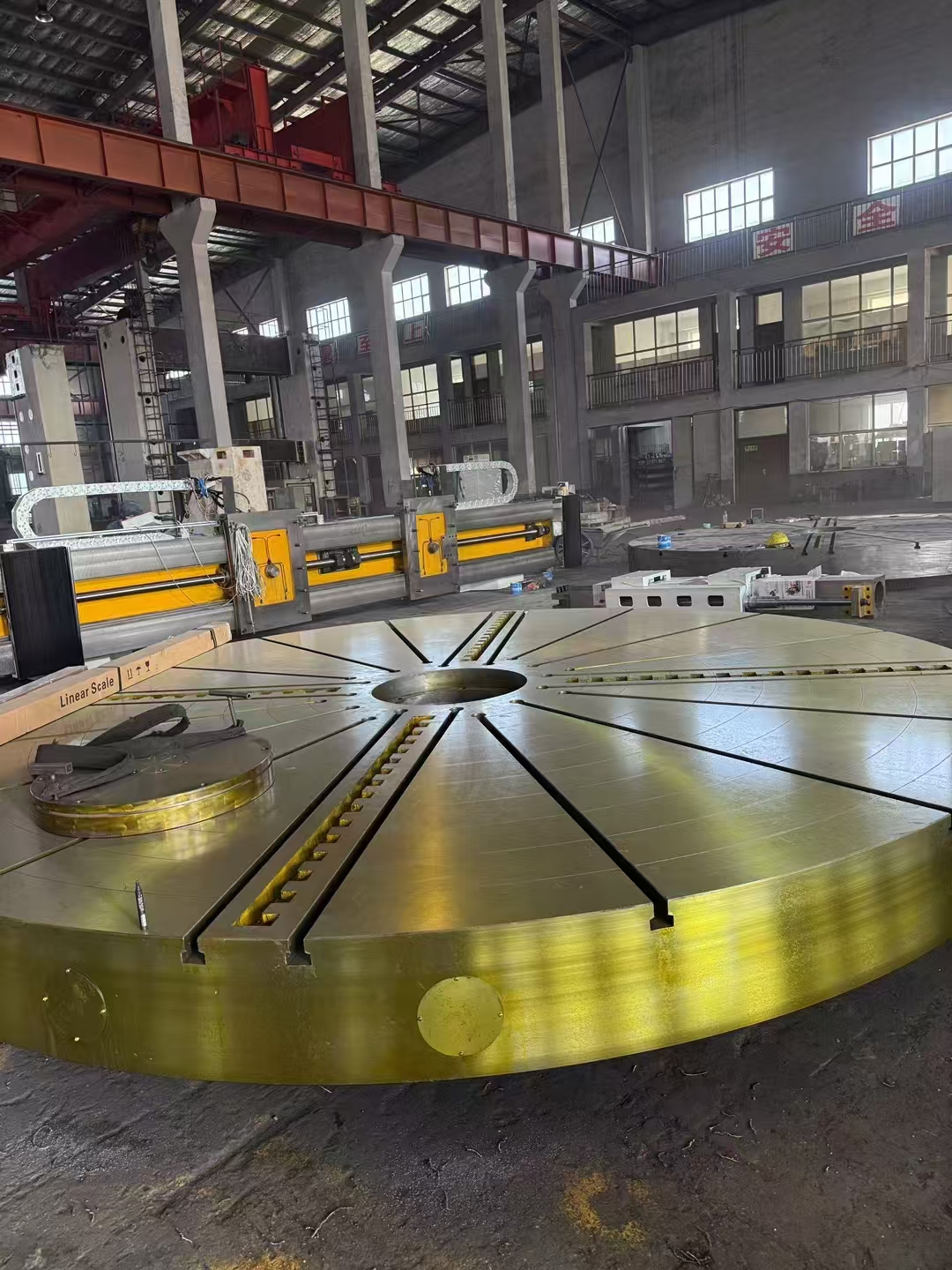

The worktable is adopt Hydrostatic guides. The entire component of the table is thermally symmetrical, and the main gear mechanism is mounted on the base of the table and the bed. The radial direction of the table adopts high-precision double row short cylindrical roller bearing centering, which not only ensures the rotation accuracy of the table, but also improves the bearing capacity of the machine tool. The table transmission gear and all bearing lubricants are specially supplied by the hydraulic system.

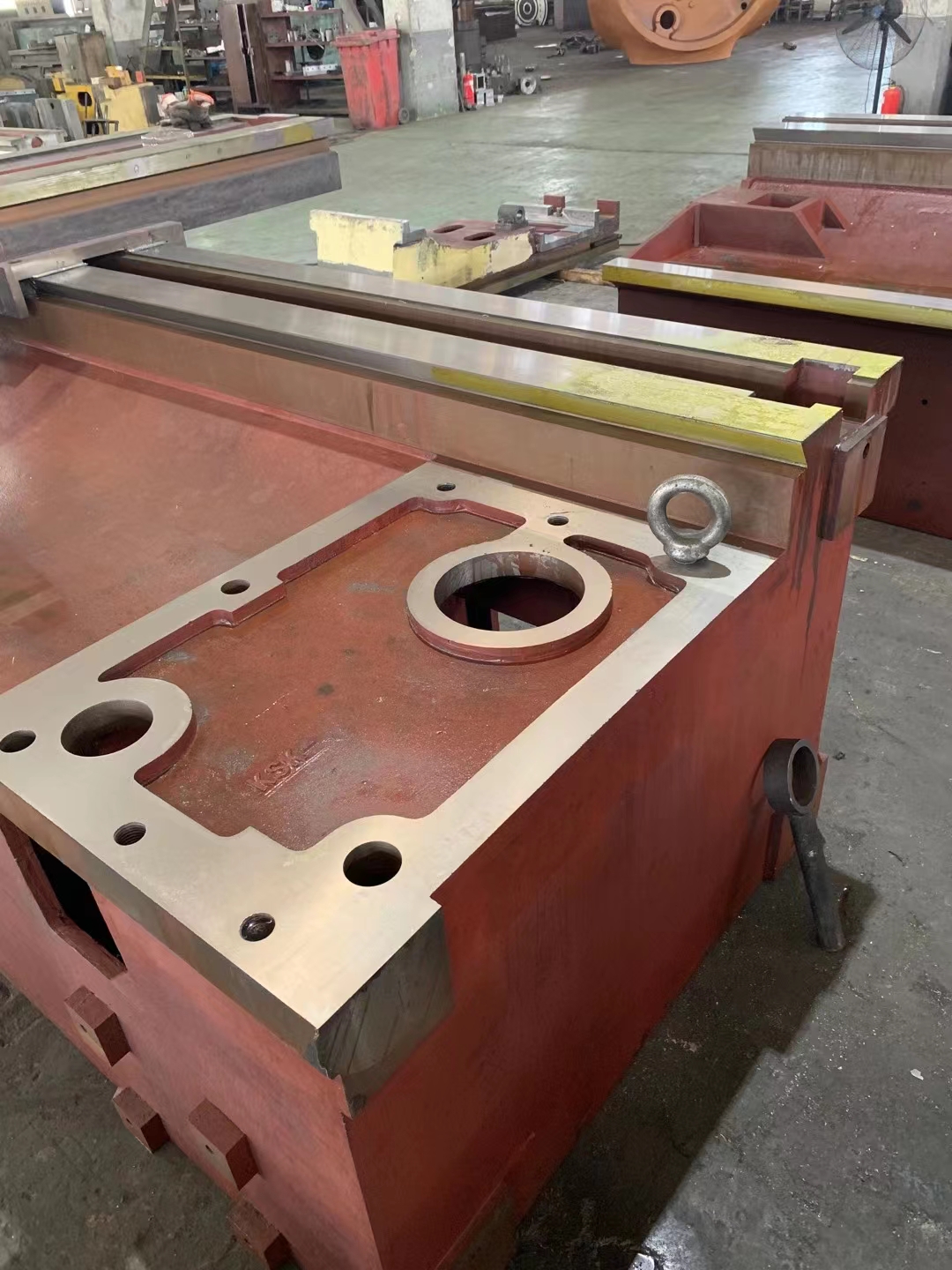

The  bed  is  an  integral   structure,  and  the  material  is  made  of  high-strength  and low-stress  iron  castings,  and  effective  vibration   damping  measures   are  adopted.  The combination of the bed and the table base greatly improves the reliability of the overall rigidity of the machine tool.
