Feature of worktable of double column CNC vertical turret lathe

Feature of worktable of double column CNC vertical turret lathe

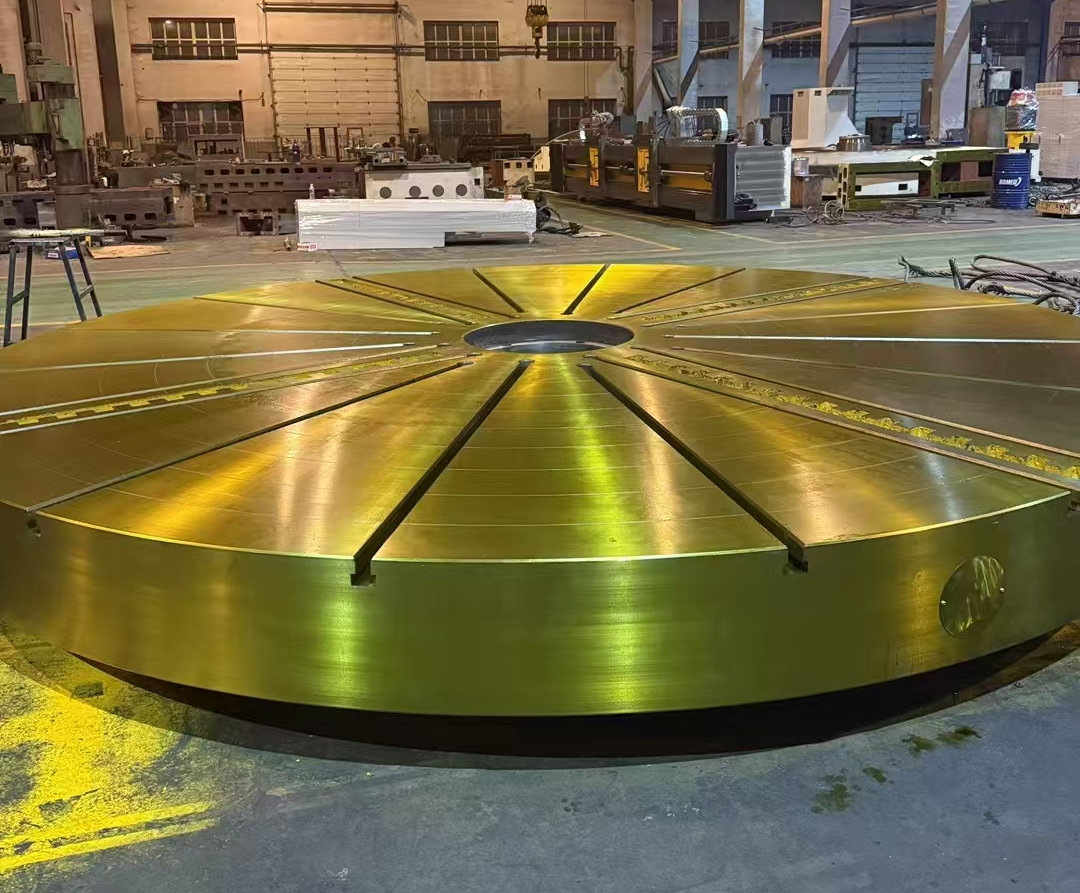

The worktable is adopt Hydrostatic guides. The entire component of the table is thermally symmetrical, and the main gear mechanism is mounted on the base of the table and the bed. The radial direction of the table adopts high-precision double row short cylindrical roller bearing centering, which not only ensures the rotation accuracy of the table, but also improves the bearing capacity of the machine tool. The table transmission gear and all bearing lubricants are specially supplied by the hydraulic system.

The table adopts cast iron, and the geometry is symmetrically arranged to ensure the smooth movement of the table within the rated speed.
