Feature of China Vertical Lathe

Feature of China Vertical Lathe Machine

1. Structural characteristics

Vertical layout: the spindle is vertical to the table, and the workpiece is clamped on the horizontal table, which utilizes gravity to enhance stability and is suitable for machining large-diameter, bulky or asymmetrical workpieces (e.g., large gears, flanges).

Strong worktable load: the horizontal worktable is usually round or rectangular with T-slot or fixture interface, which can carry heavy workpieces from several tons to tens of tons.

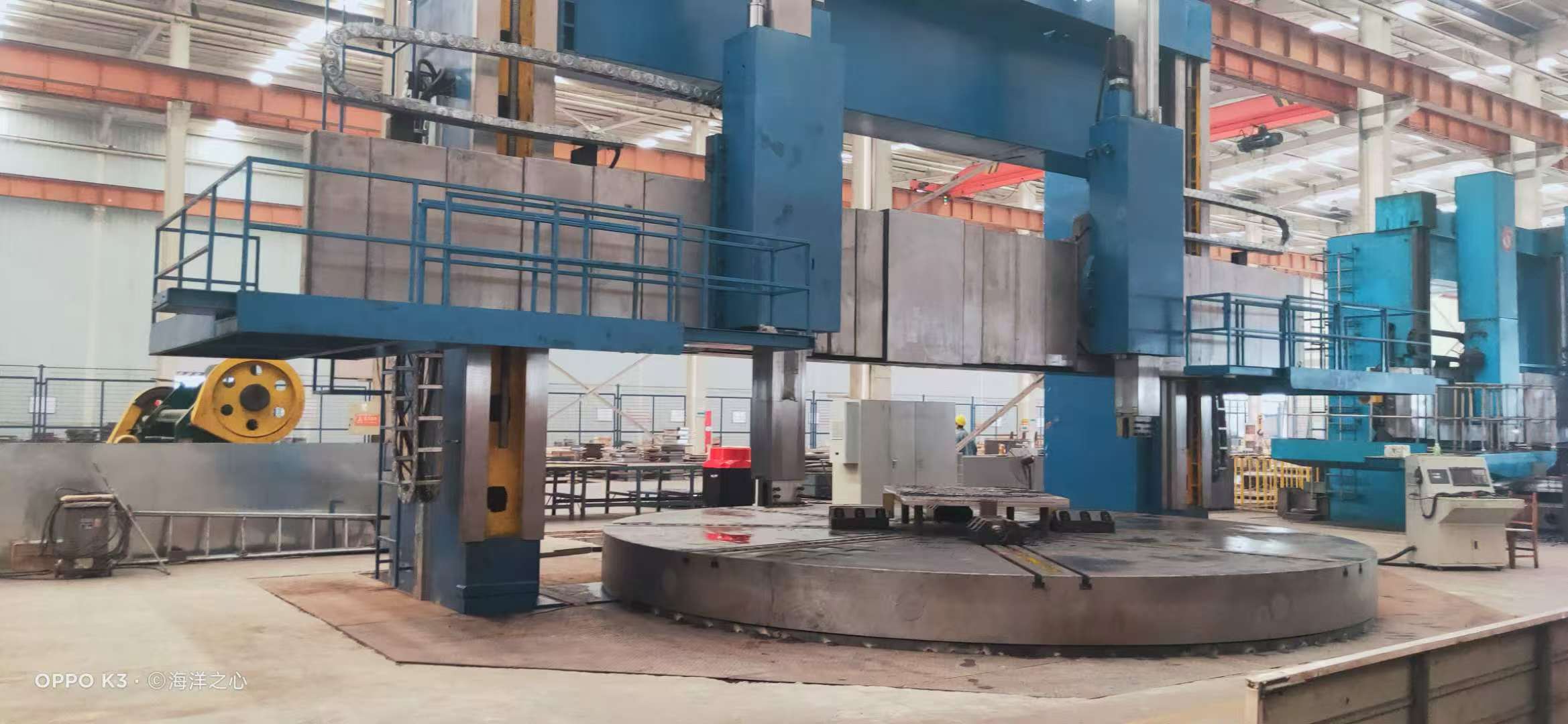

High column rigidity: single or double column structure (double column type is suitable for oversized workpieces) is adopted to ensure vibration resistance and precision during cutting.

2. Machining Advantages

Suitable for large-sized workpieces: parts with diameters of several meters can be machined, such as wind power bearings and hydraulic turbine runners.

Convenient clamping: workpieces are placed flat on the table for easy lifting and positioning, reducing the need for complex fixtures.

High-efficiency heavy cutting: Vertical layout reduces workpiece deformation, suitable for rough machining and powerful cutting (such as rough turning of casting blanks).

Multi-process integration: some models are equipped with milling and grinding attachments to realize mill-turn compound processing.

3. Typical application scenarios

Energy and heavy machinery: processing nuclear power rotor, turbine shell.

Aerospace: manufacturing large ring parts for airplane landing gear.

Rail transportation: processing and repairing of wheels and wheelsets
