CNC Horizontal lathe with hydraulic tailstock and spindle
URL: https://www.starfishmachine.com/Horizontal-CNC-Lathe-Machine-pd783716188.html
This series adopts a horizontal flat bed monoblock casting structure. The bed, headstock, saddle, and bed legs are all resin sand castings that undergo artificial aging treatment, ensuring excellent overall machine stability.
The bed guideways feature a large span. The saddle employs plastic bonding treatment, enabling micro-feed movement of components to prevent crawling.
The feed system employs servo motors, precision ball screws, and high-rigidity precision bearings for accurate positioning and high transmission efficiency.
The spindle bore diameter is 105mm, offering high rotational speeds, a wide speed adjustment range, and low overall machine noise.

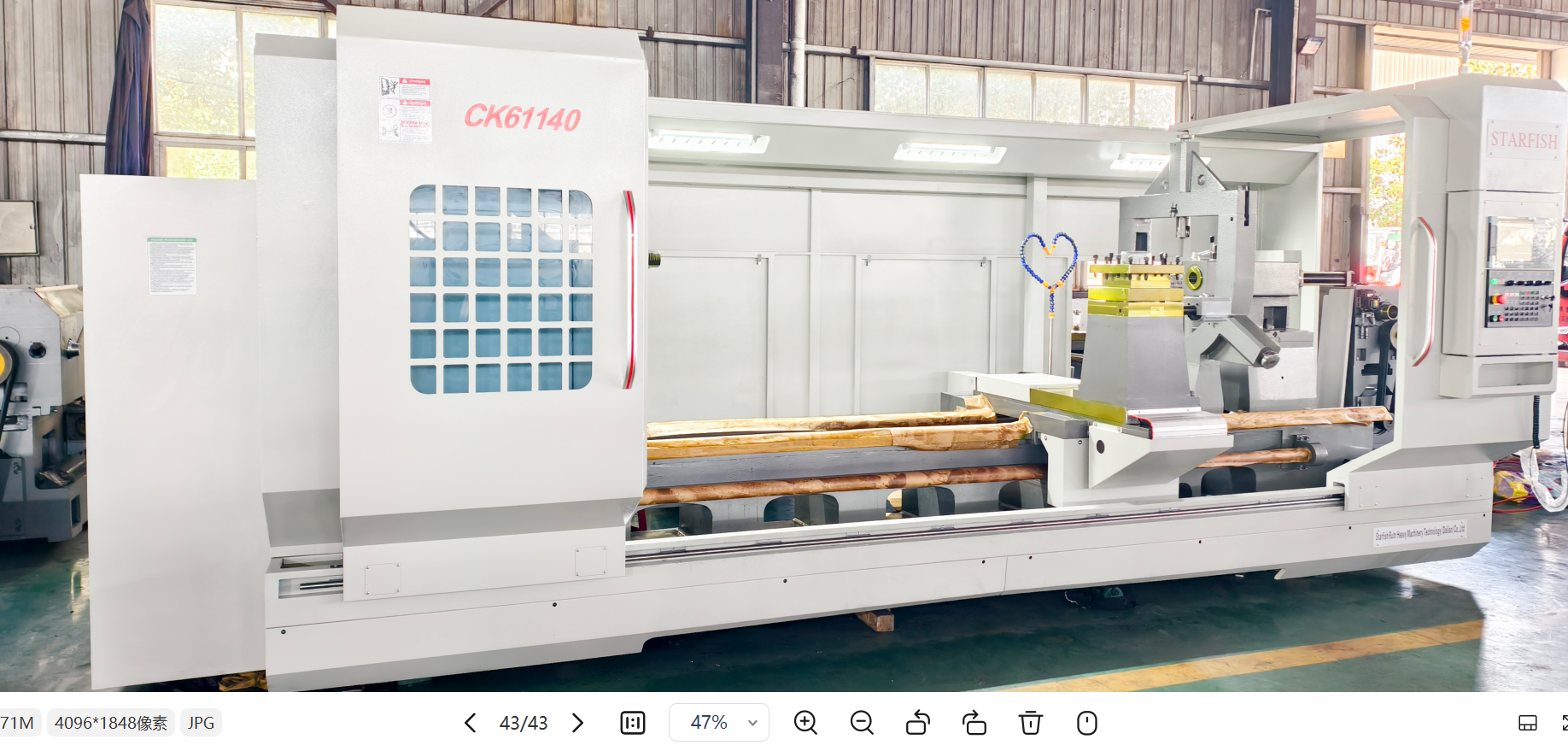

The CK61140 CNC lathe is a versatile CNC lathe with semi-closed-loop control functionality developed by our company based on the latest trends in CNC lathes on the international market. This versatile machine offers flexible operation and is suitable for machining various complex-shaped shaft, sleeve, and disc components. It excels at turning inner and outer cylindrical surfaces, conical surfaces, curved surfaces, end faces, grooving, chamfering, and threading. Particularly well-suited for multi-variety, small-to-medium batch production, it demonstrates strong process adaptability, high machining efficiency, low scrap rates, and consistent finished product quality. It reduces the reliance on highly skilled operators. With straightforward programming and simple operation, it serves as an ideal large-scale machining solution.

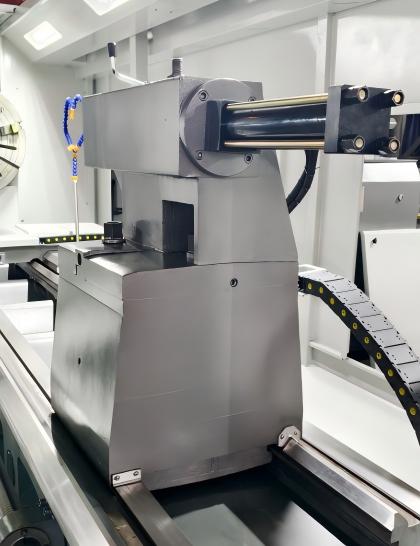

Hydraulic tailstock
