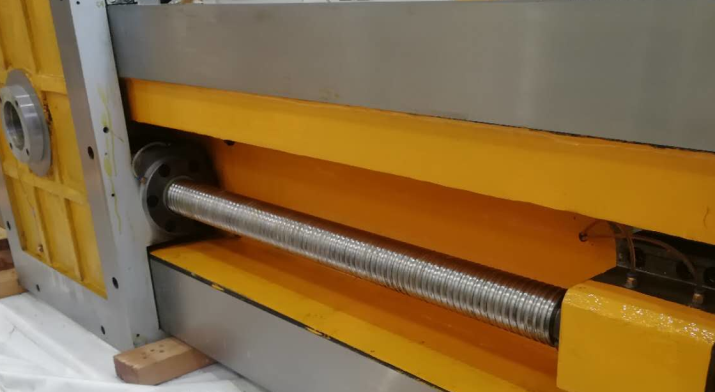

Cross Beam of CNC Single Column Vertical Lathe Machine

Cross Beam of CNC Single Column Vertical Lathe Machine

The contact surface between the beam and the column guide rail is glued with PTFE wear-resistant guide rail soft belt, which has a small friction coefficient, which greatly prolongs the service life of the machine tool. The beam can be moved along the Z-axis on the column guide. The use of lead screw lifting has the advantages of stable transmission, small friction, low noise and high reliability. The horizontal rail (X-axis) of the cross member is equipped with a telescopic guard. The beam clamping adopts lever mechanism clamping, and the clamping is safe and reliable.
