CNC Lathe Turning Tool Hold

CNC Lathe Turning Tools Internal Thread Toolholder SNR SNL SNR0013M16 SNR0016M16 SNR0016Q16 Carbide Inserts 16NR 16NL AG60 AG5

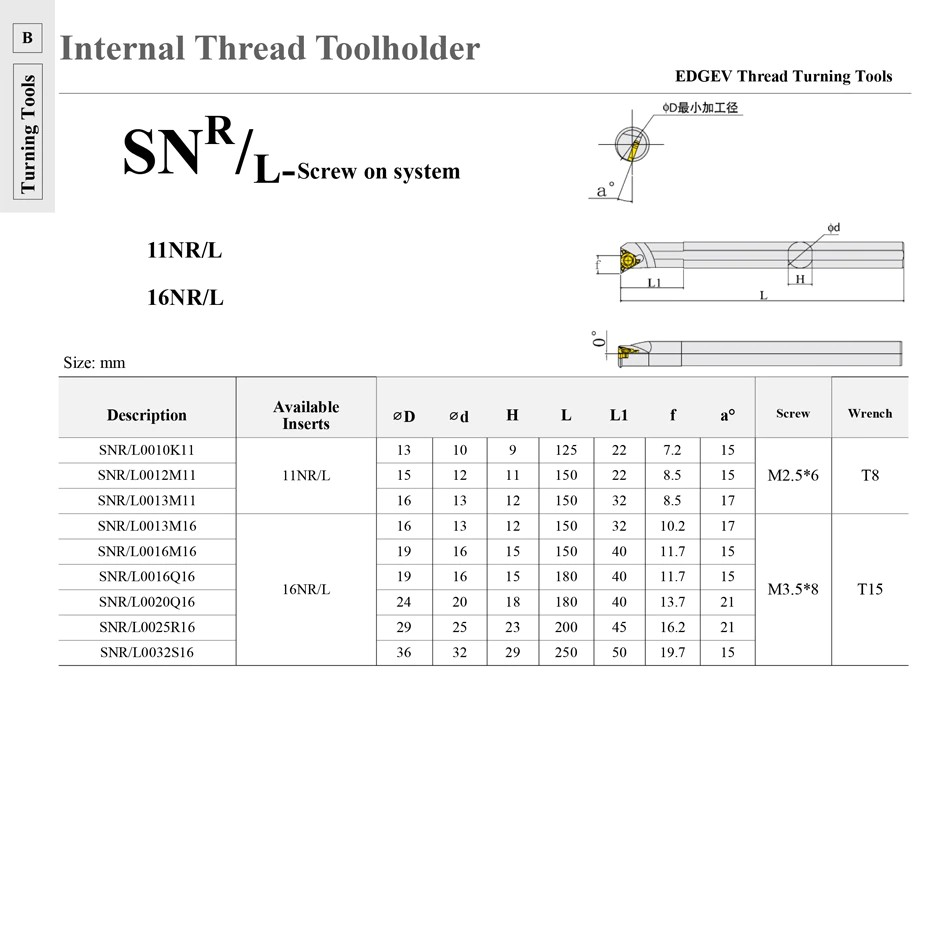

Internal Tool Holder Code System (ISO Standard)

01. Application: Internal Threading Turning Tools

02. ISO Designation:

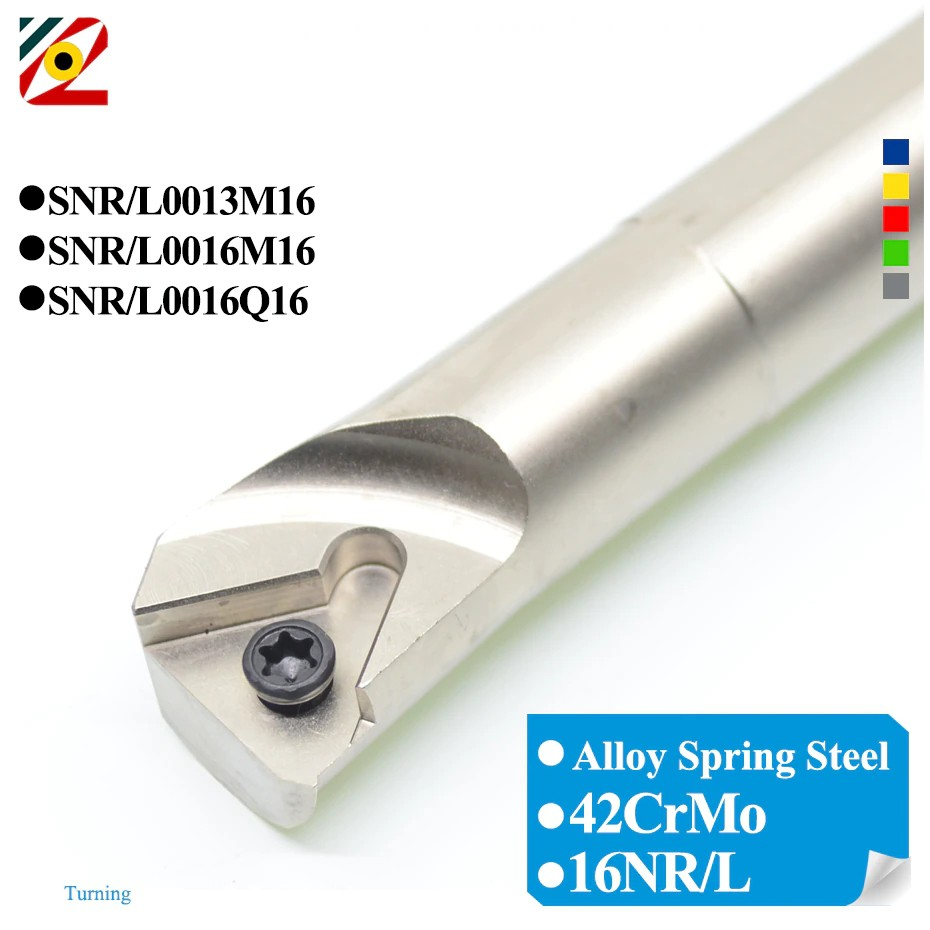

SNR/L0013M16

SNR/L0016M16

SNR/L0016Q16

03. Clamping Method: Screw on clamping

04. Available Inserts: 16NR/L

05. Approach Angle:

06. Clearance Angle of Inserts:

07. Material: 42CrMo(Alloy Spring Steel)

08. Hardness: HRC45-50

09. Color: Grey

10.Invoice: Yes

Features:

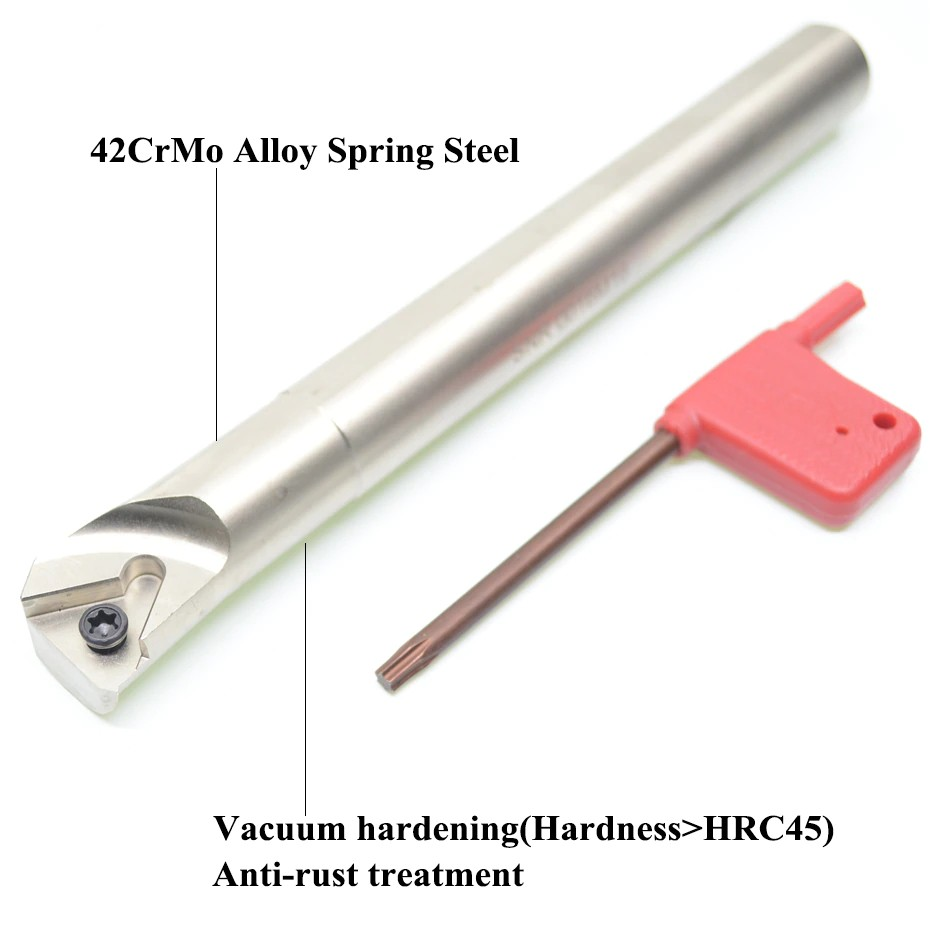

01. The tool holder is made from the good alloy spring steel (42CrMo). Favorable shock resistance and improves the surface roughness of work-piece.

02. Integral forging processing, excellent tensile strength and rigidity. To achieve the steady machining and the long service life of tools.

03. To be manufactured by High-precision CNC machine center and MAZAK equipment

04. Strictly implement the total quality management system, 100% inspection; we use the feeler blade (0.01mm) to inspect the slot of inserts, to make sure the inserts and tool holder are closely attached.

05. Advanced NIHON Heat Treatment from Japan, to make sure the hardness uniformity of the tool holder.

06. Antirust and corrosion resistance, the surface of tools are planted with nickel, it is beautiful and durable.

07. Good quality Accessories, it is not easily damaged in the bad cutting condition.

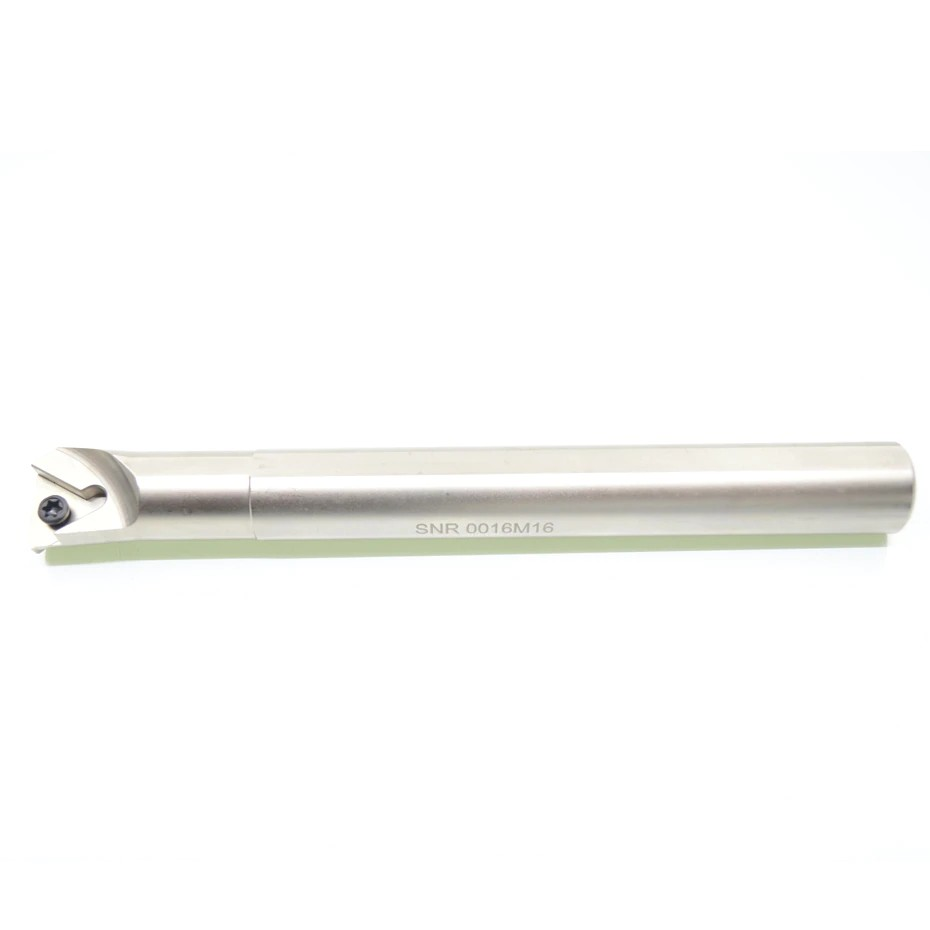

Products Showing
