CNC Vertical Turning Milling lathe are an integral part of the manufacturing process in any shop.
Product Introduction of CNC Vertical Turning Milling lathe
1. All castings are treated with artificial thermal aging and vibration aging to ensure the rigidity and stability of the vertical lathe machine.
2. The automatic and centralized lubrication system can ensure continuous and effective lubrication of guide rails and ball screws, ensuring effective extension of life.
3. All electrical parts, bearings, key parts and hydraulic parts are selected from international famous brand manufacturers.
4. With complete accessory configuration, users only need to prepare tools and measuring tools and immediately put into production; perfect after-sales service, one-year warranty service.
5. The hydraulic device of the static pressure guideway oil of the worktable and the lubricating oil of the transmission parts is equipped with an oil temperature control device to ensure a small oil temperature rise and thermal deformation of the worktable.
The worktable is equipped with an encoder to realize closed-loop control. Realize the feed rate per revolution, thread and constant speed cutting and table indexing.
The worktable is equipped with a locking device to facilitate milling; the worktable has the functions of arbitrary indexing and exact stop.
Advantage of CNC Vertical Turning Milling lathe
Our company adopts the international advanced resin sand casting process. The castings of CNC Vertical Lathe Machine are made of HT300 and HT250 and then tempered twice. The castings are tempered once before processing. The castings are subjected to secondary tempering after rough machining. The tempering is tempered to the greatest extent in the tempering kiln. Reduce the internal stress of the casting, and perform vibration aging before finishing to prevent the casting from deforming, thereby improving the accuracy of the machine tool.
Products Specification of CNC Vertical Turning Milling lathe
The vertical lathe has C axis for milling, drilling, boring, tapping
Item | Unit | SVTM1250 | SVTM160 | SVTM200 |
Max.machining diameter | mm | 1250 | 1600 | 2000 |
Max.machining height | mm | 1000/1200 | 1000/1200/1400 | 1000/1200/1400 |
Max. loading weight | kg | 5000 | 8000 | 12000 |
Table diameter | mm | 1000 | 1400 | 1800 |
Worktable speed range | r/min | 300 | 250 | 250 |
Max. table torque | Nm | 10550 | 12000 | 20000 |
Milling spindle max speed | r/min | 1800 | 2400 | 2400 |
Max workpiece weight | kg | 5000 | 8000 | 12000 |
X axis travel | mm | -400~ +1170 | -20~1110 | -20~1550 |
Z axis travel | mm
| 800 | 1000 | 1000 |

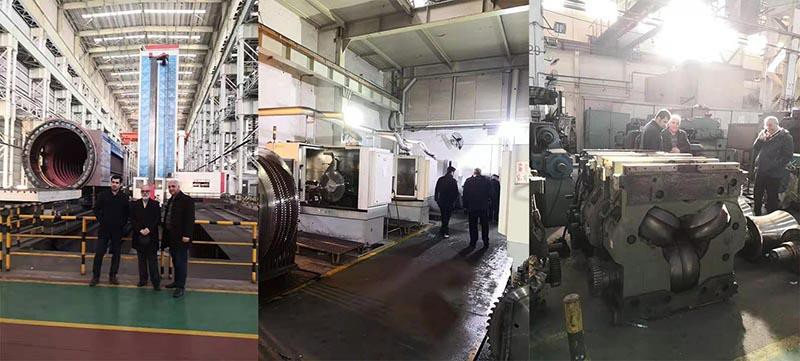

Glance of workshop of Single Column turning Lathes

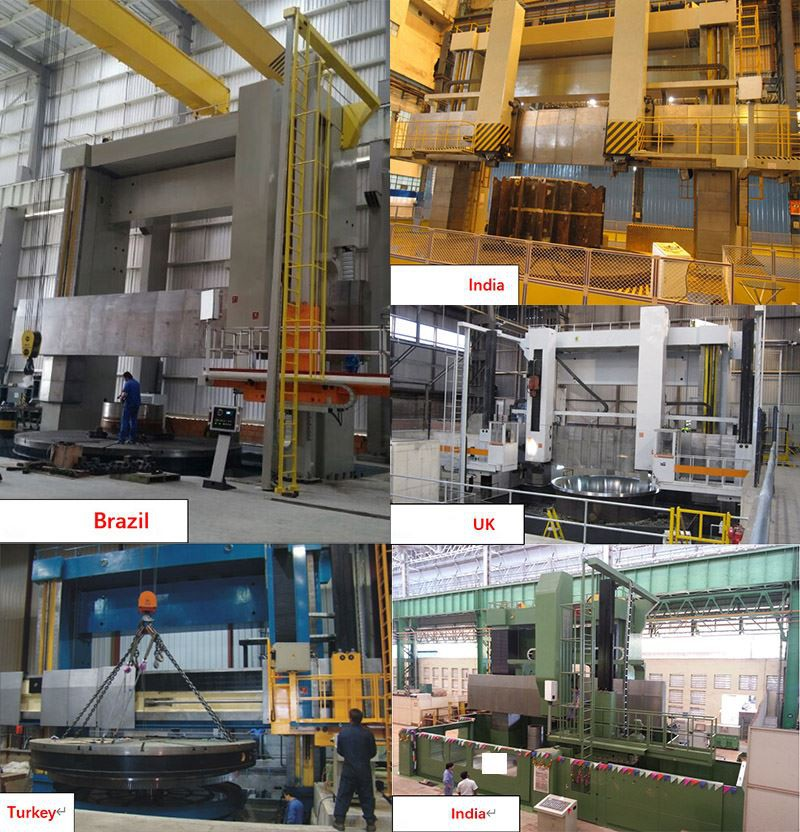

Customers
