Basic components and main drive adopt thermal symmetrical structure to improve thermal stability.A two-stage planetary gear drive structure is used for the main drive which is driven by a wide field control DC motor or AC spindle motor. Realhead
With a positive and progressive attitude to customer's curiosity, our organization repeatedly improves our products top quality to meet the wants of consumers and further focuses on safety, reliability, environmental necessities, and innovation of Currently, we are looking forward to even greater cooperation with overseas customers based on mutual benefits. Please feel free to contact us for more details.

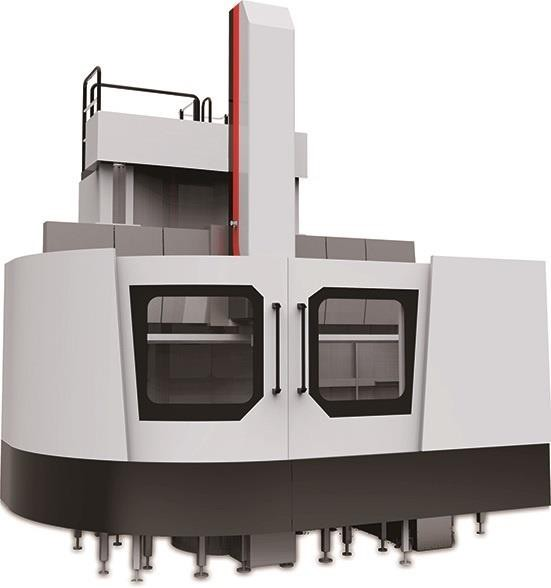

1.Product Introduction of Single Column CNC Vertical Turning And Milling Machines
(1) The turning-milling composite machining center [1] uses a high-precision built-in spindle;
(2) Freely movable operation panel improves work efficiency;
(3) The models are mainly used for mass production of various small parts and complex parts, high-speed processing and diversified processing;
(4) Especially slender and complicated processes can be processed and formed at one time. Automatic feeding device can be configured to improve efficiency;
(5) Material details: cutting copper, iron, aluminum alloy, stainless steel, Teflon and other materials.
2.Products Specification of Single Column CNC Vertical Turning And Milling Machines
Item | Unit | SVTM1250 | SVTM160 | SVTM200 |
Max.machining diameter | mm | 1250 | 1600 | 2000 |
Max.machining height | mm | 1000/1200 | 1000/1200/1400 | 1000/1200/1400 |
Max. loading weight | kg | 5000 | 8000 | 12000 |
Table diameter | mm | 1000 | 1400 | 1800 |
Worktable speed range | r/min | 300 | 250 | 250 |
Max. table torque | Nm | 10550 | 12000 | 20000 |
Milling spindle max speed | r/min | 1800 | 2400 | 2400 |
Max workpiece weight | kg | 5000 | 8000 | 12000 |
X axis travel | mm | -400~ +1170 | -20~1110 | -20~1550 |
Z axis travel | mm
| 800 | 1000 | 1000 |

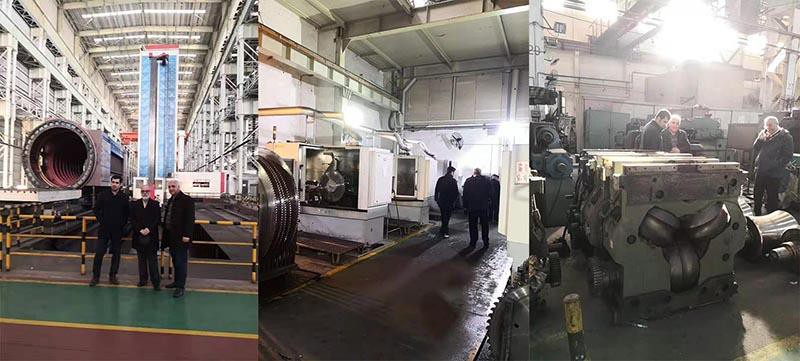

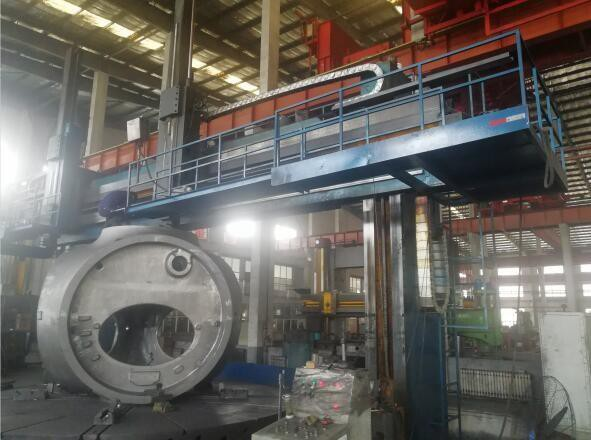

4.Glance of workshop of Vertical Turning Milling

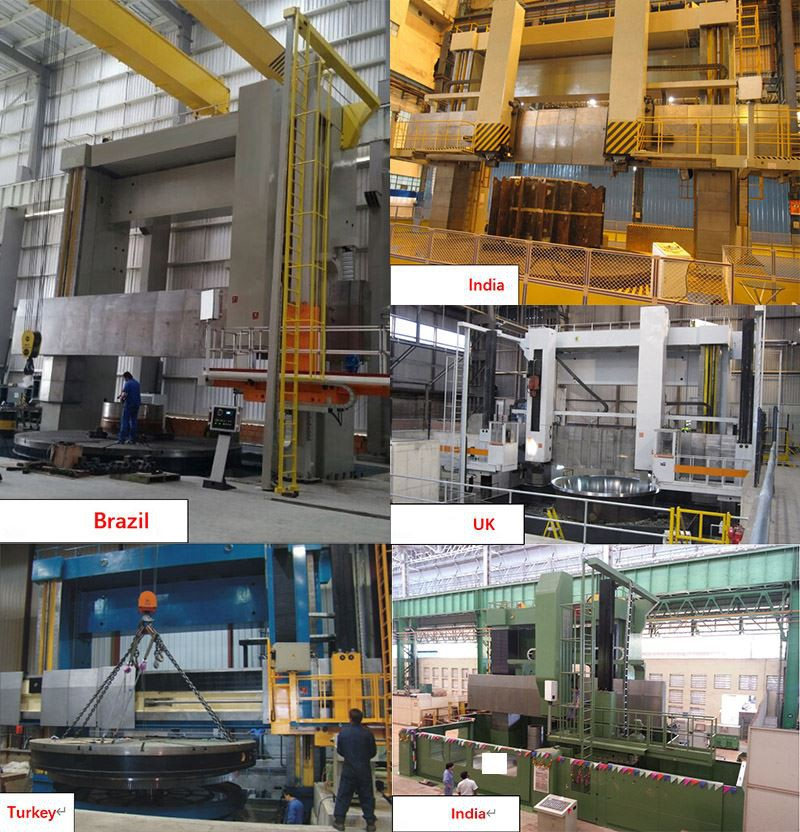

5. Customers
General Introduction:
Edgev Hardmetal Tools (Dalian) Co., Ltd originally has two originators and started with Lathe inserts and lathe machine as small operation.
As developing for these years, thanks to supports by various customers all around world, nowadays we are developing faster and become professional machine tool solution supplier.
We own two bright brands:
Edgev Metal Tools for Lathe inserts and Starfish Machine Tool for Machine tools.
We are one of the top supplier of lathe inserts and machine tools in China.
The machine tools and lathe inserts can meet various compound needs including turning, milling, drilling, grinding and also processing more complex parts.
The machine tools and lathe inserts have been used in field of Aerospace, Traffic, Auto industry, Valve industry, Pump industry, Marine industry etc.. The features of our machine are energy saving, faster operation, High precision etc.
Not only does it provide a wide selection of machines and equipment, but it also provides the best options, tools and tool sets for each specific situation, as well as a single integrated solution in the field of production process automation.
Leveraging our vast knowledge, Years of experience in the supply of metal processing equipment allows our experts to choose the necessary industrial equipment to meet your requirements. Evenif you do not know the manufacturer, you can only choose the technical parameters or the parameters of the finished product to be produced on the machine.
Our company is also a platform that offers quality equipment, dependable service, and competitive prices.
Starfish Machine tool meets customer's requirements more

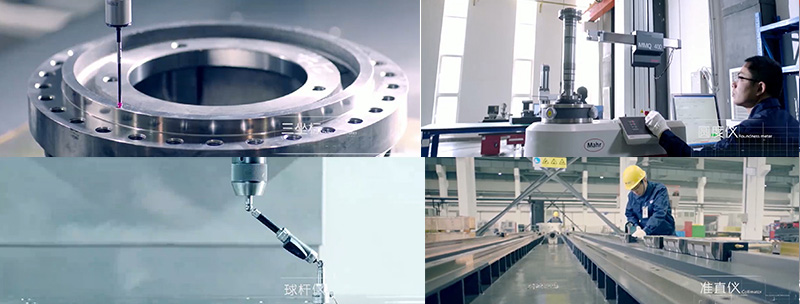

Quality Guarantee:
We always feel that all successes of our company is directly related to the quality of the products, we offer and are trusted by world-wide customers.
They meet the highest quality requirements as stipulated in ISO9001, ISO14001, CE standard
Our primary target will be to provide our clients a serious and responsible small business relationship, supplying personalized attention to all of them for single coumn cnc vertical turning and milling machines, The product will supply to all over the world, such as: Suriname, Roman, Auckland, Barcelona, Our merchandise have been acquired extra and extra attention from overseas clients, and hooked up lengthy time period and cooperative relationship with them. We`ll furnish the great carrier for each and every client and in reality welcome pals to work with us and set up the mutual gain together.
