Products Specification of Conventional Boring and Milling Machine

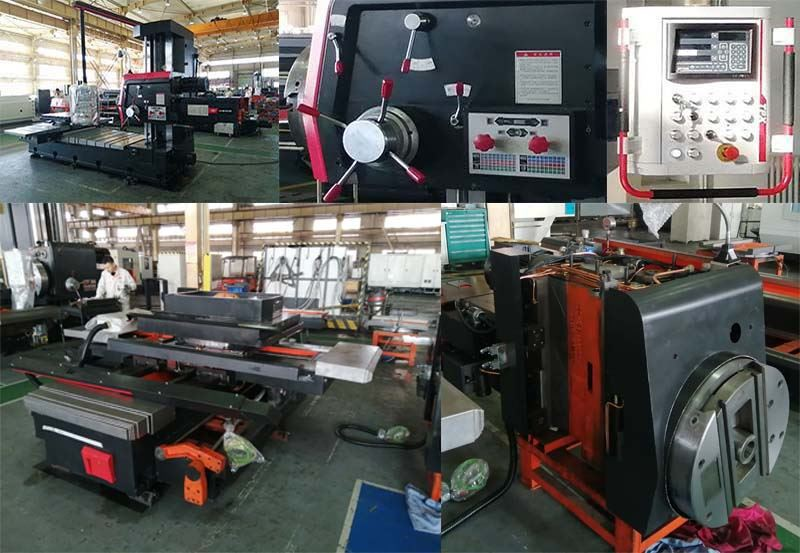

The TPX series horizontal milling and boring machines are based on a classic design, suitable for rough and finished boring, capable of milling large and box type components. They excel at inner hold boring, cylindrical turning and grooving by radial feed of facing plate. A 4*90 optical positioning device allows for machining accuracy when turning large pieces. The precision digital read out measurement systems ensure accuracy of coordinates and lineation.
1. Bed: Our high quality castings feature polished and hardened guideways. The castings are internally reinforced to maximize rigidity and stability.
2. Control Panel: Available in hanging or swing-arm arrangements, the control panel is easy to use and reduce operator fatigue.
3. Internal Design: Easy to install, steady, and precise with a fully-enclosed structure to prevent oil, coolant, and chip intrusion.
4. Control System: PLC
5. Column: Made of high quality castings with ground and hardened guideways, the optimized structural design easily supports the assembly.
6. Protective Enclosure: Welded high quality steel plates form an excellent protective cover.
7. Hydraulic System: Pressure adjusted via relief value. Variable speed achieved via a rotary value.
8. Headstock: Primary speed is controlled via switches on the headstock itself, a variety of rotational speeds are possible.
Parameter of Conventional Boring and Milling Machine
Model | Unit | TPX6111B | TPX6111B/2 | TPX6111B/3 |
Spindle diameter | mm | 110 | 110 | 110 |
Spindle taper | - | Morse 6 # | Morse 6 # | Morse 6 # |
Max. Torque of spindle | Nm | 1225 | 1225 | 1225 |
Max. Axial thrust of spindle | N | 12250 | 12250 | 12250 |
Speed steps of spindle | - | 22 | 22 | 22 |
Speed range of spindle | r/min | 8-1000 | 8-1000 | 8-1000 |
Main motor power | kW | 7.5 | 7.5 | 7.5 |
Facing head | ||||
Max. torque of facing head | Nm | 1960 | 1960 | 1960 |
Diameter of facing head | mm | 600 | 600 | 600 |
Speed range of facing head | r/min | 18 | 18 | 18 |
Workable | ||||
Workable dimenstion(LxW) | mm | 1100x960 | 1100x960 | 1250x110 |
Max. loading weight | kg | 5000 | 5000 | 5000 |
Dimension of T-shots | mm | 22 | 22 | 22 |
Number of T-shots | - | 7 | 7 | 7 |
Working range | ||||
X-axis travel | mm | 900 | 1250 | 1600 |
Y-axis travel | 900 | 900 | 1200 | |
Z-axis travel | 1400 | 1400 | 1400 | |
W-axis travel(spindle travel) | mm | 600 | 600 | 600 |
U-axis travel(facing head slide travel) | mm | 180 | 180 | 180 |
B-axis workable rotary | - | 360 | 360 | 360 |
Min.diastance from spindle center lineto workable surface | mm | 0 | 0 | 0 |
Rapid travel | mm/mn | X/Y/Z/W:2500 | X/Y/Z/W:2500 | X/Y/Z/W:2500 |

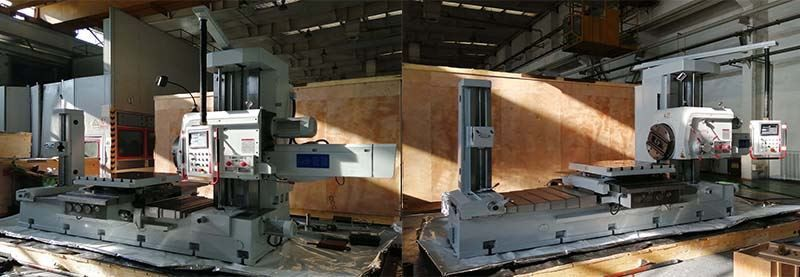

Package:
