1.We use introduce and absorb original Japan SNK drawings and technology
2.All transmission parts of this machine have forced lubrication and automatic lubrication.
Using a complete scientific top quality management program, great high-quality and fantastic religion, we win great track record and occupied this area for Quality is factory' life , Focus on customer' demand is the source of company survival and development, We adhere to honesty and good faith working attitude, looking forward to your coming !
Size and parts can be customized of CNC Gantry Machine Tool
1. We introduce and absorb original Japan NSK drawings and technology.
2. We own laser straightener, laser interferometer, laser cue meter and other related tester for guaranteeing quality.
3. Our High speed Gantry Type Milling Machine’s quality and accuracy is strictly guaranteed by CMM and our experienced workers.
4. The X-axis is driven by a high-precision imported gear rack, which eliminates the gap between the two motors to ensure transmission accuracy and rigidity.
5. The Y-axis is driven by a high-precision ball screw. The AC servo motor is decelerated to increase the torque through the planetary reducer. The eight-disc precision bearing is used on the left and right to ensure the transmission accuracy. The lead screw is pre-tensioned and preloaded.
6. The Z-axis ram gets fast movement and feed movement. The six-disc precision bearing is used up and down to ensure the transmission accuracy, and the lead screw is pre-tensioned and preloaded.
7.We have reference customer in over 40 nations, Such as Siemens, ITT, Hanwha, CRRC, Bombardier ....
8. The beam adopts a highly deformation-resistant arch structure and adopts an optimized step design to achieve a large span of the guideway. The height and weight of the beam are increased, which not only improves the resistance to deformation and deformation, but also greatly improves the vibration absorption capacity of the beam, making the heavy cutting more stable and perfect.
9. The column design adopts honeycomb ribs and rice ribs, which increases the sitting area and weight of the column, reduces the height of the column, and improves the vibration absorbing capacity and deformation resistance of the column.
10. The ram has a 65-type heavy-duty roller line structure, which not only ensures the accuracy of the guideway but also ensures the rigidity of the guideway.
11. The ram sliders are all equipped with large sliders and are preloaded, which greatly improves the impact resistance and rigidity of the ram.
The distance from the center line of the ram to the beam line is reduced, and the subversion torque is greatly reduced.
Products details of CNC Gantry Machine Tool

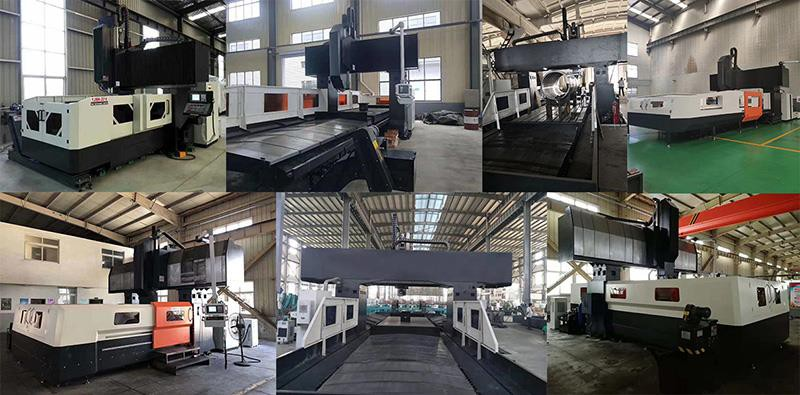

Various equipment

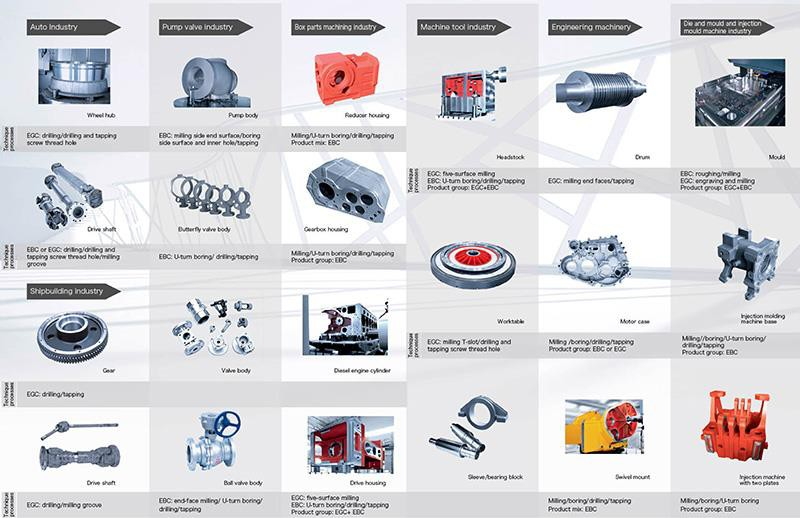

Parts

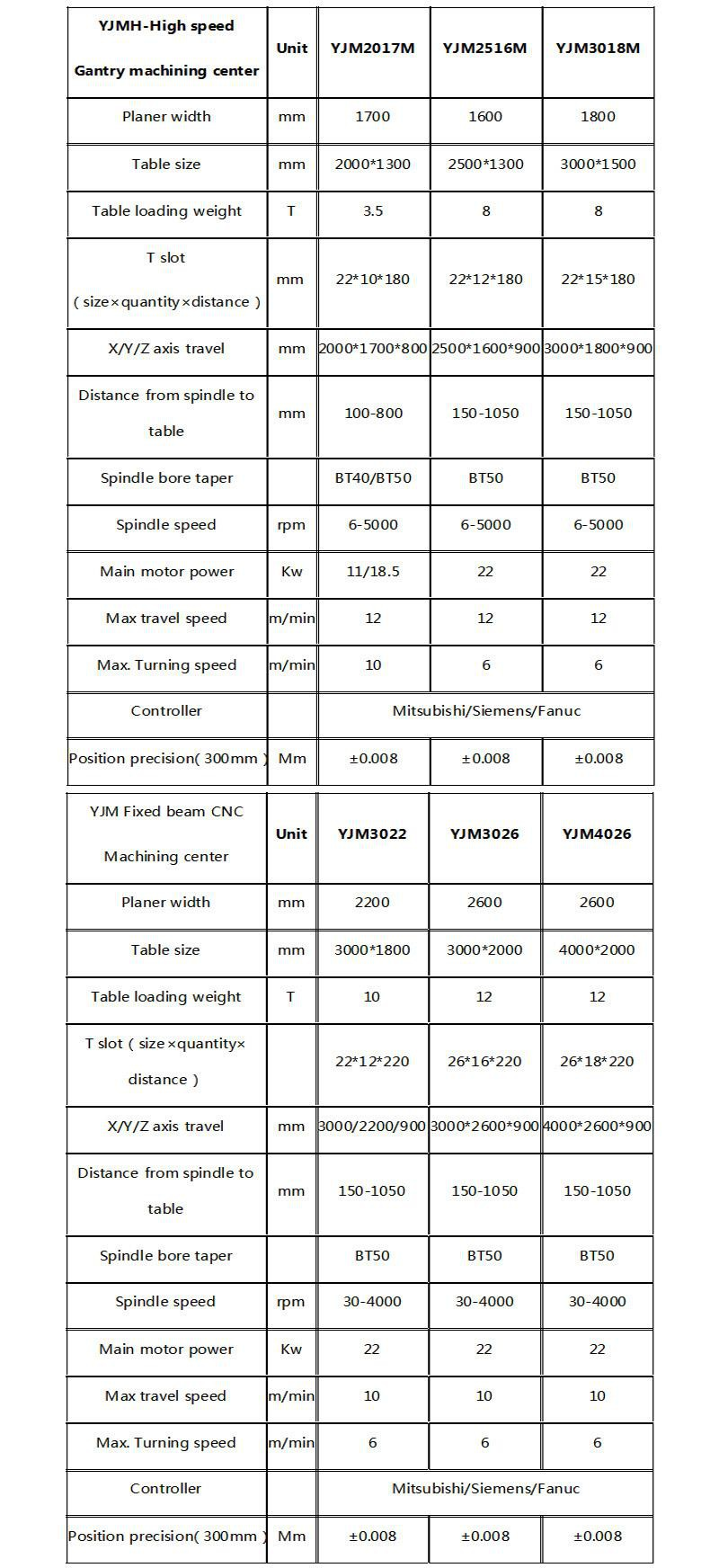

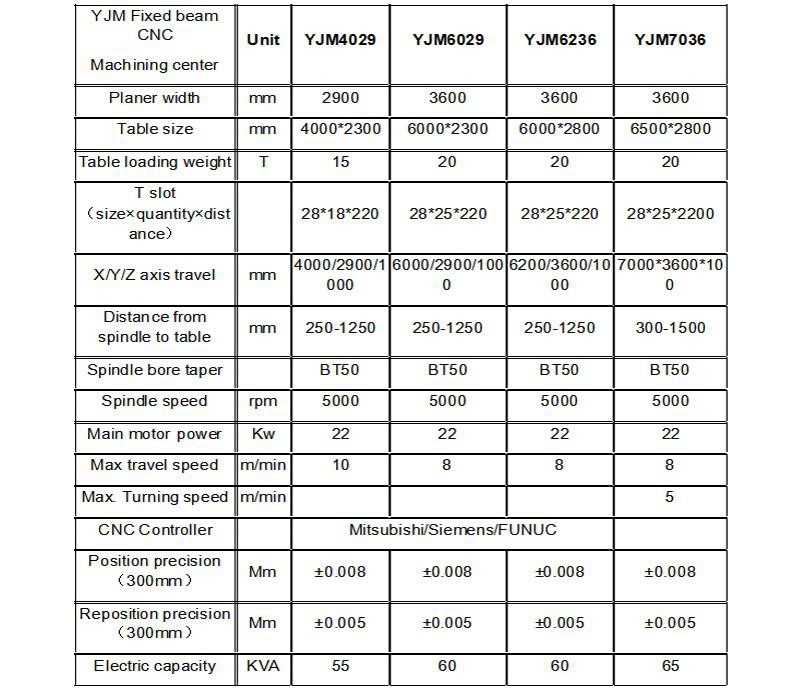

Products Specification
Our development depends on the advanced equipment, excellent talents and continuously strengthened technology forces for cnc gantry machine tool, The product will supply to all over the world, such as: Zurich, Hongkong, Doha, New Delhi, Ought to any of these products be of curiosity to you, remember to allow us to know. We are going to be satisfied to give you a quotation on receipt of one's in depth specs. We've our private experienced R&D enginners to meet any of one's requriements, We appear forward to receiving your enquires soon'and hope to have the opportunity to work together with you in the future. Welcome to check out our company.
