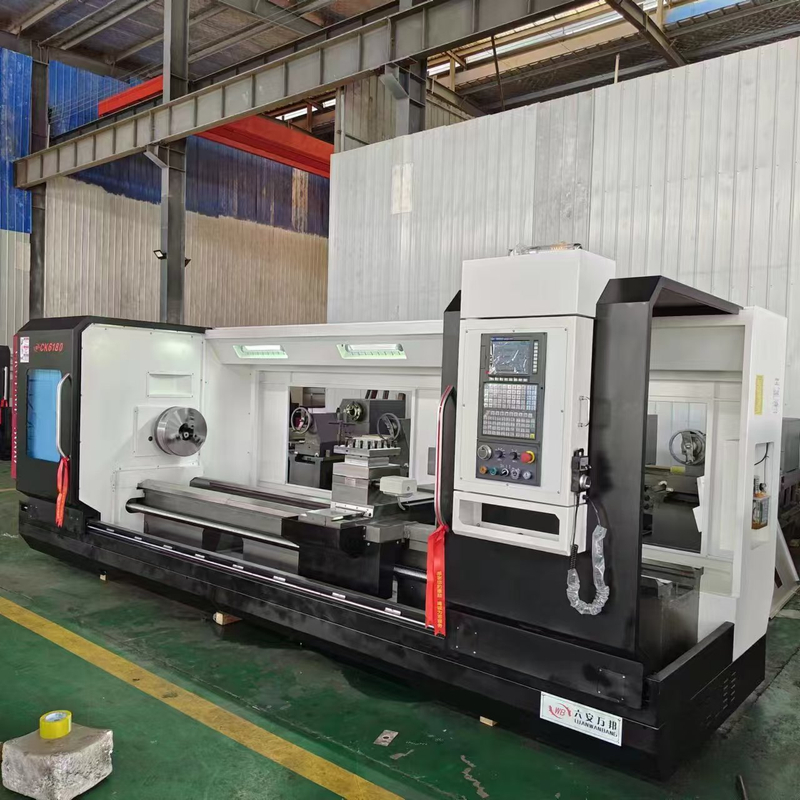

CNC Pipe Thread Lathe / CNC Oil Lathe Application
This series of CNC pipe thread lathes adopts a full servo bed structure and composite electric chuck, which is suitable for high-efficiency machining and thread repairing of drilling rods, joints, casing and other workpieces in the petroleum industry, at the same time it has the functions of ordinary CNC lathe, which can process the outer circle, inner hole and end face of shafts, disks and other workpieces; this series of machine tools are widely used in the petroleum industry for machining and repairing the workpieces of drilling rods, joints, casing and other workpieces, and can also be used in geological exploration. This series of machine tools are widely used in the petroleum industry for machining and repairing workpieces such as drill pipes, joints, casing, etc. They can also be applied in geological exploration, mineral mining, chemical smelting, pipeline construction, machinery manufacturing and shipbuilding.
Parameter:
| SPECIFICATION | UNIT | QK1325 | QK1327 | QKD1325 | QKD1330 | QKD1335 | QK1327 | Q1332 | QK1338 |
| Swing over bed | mm | 800 | 800 | 800 | 900 | 900 | 1000 | 1000 | 1000 |
| Swing over cross slide | mm | 480 | 480 | 435 | 535 | 535 | 610 | 610 | 610 |
| Distance between centers | mm | 1000/1500/3000 | 1000/1500/3000 | 1000/1500 | 1000/1500 | 1000/1500 | 1500/3000 | 1500/3000 | 1500/3000 |
| Pip threading range | mm | 50-255 | 50-270 | 50-220 | 110-129 | 110-340 | 130-270 | 190-320 | 190-380 |
| Guideway width | mm | 600 | 600 | 705/755 | 705/755 | 705/755 | 755 | 755 | 755 |
| Max. load capacity | mm | 4 | 4 | 5 | 5 | 5 | 6 | 6 | 6 |
| Spindle bore | T | 255 | 280 | 240 | 240 | 240 | 280 | 330 | 390 |
| Spindle nose type | VF.4 steps | VF.4 steps | Stepless | Stepless | Stepless | VF.4 steps | VF.3 steps | VF.3 steps | |
| Spindle speed range | rpm | 20-420 | 20-420 | 90-450 | 90-350 | 90-350 | 10-320 | 10-280 | 8-205 |
| Chuck | mm | φ630 3-jaw manual | φ630 3-jaw manual | φ630 3-jaw manual | φ780 3-jaw manual | φ780 3-jaw manual | φ800 3-jaw manual | φ780 3-jaw electric | φ800 3-jaw electric |
| Turret tool post | NC turret 4 position | NC turret 4 position | NC turret 4 position | NC turret 4 position | NC turret 4 position | NC turret 4 position | NC turret 4 position | NC turret 4 position | |
| Tool shank size | mm | 32 × 32 | 32 × 32 | 32× 32 | 40×40 | 40×40 | 40×40 | 40×40 | 40×40 |
| X axis travel | mm | 420 | 420 | 480 | 480 | 480 | 520 | 520 | 520 |
| Z axis travel | mm | 750/1250/2750 | 750/1250/2750 | 1000 | 1000 | 1000 | 1250/2750 | 1250/2750 | 1250/2750 |
| X axis rapid traverse | mm/min | 4000 | 4000 | 4000 | 4000 | 4000 | 4000 | 4000 | 4000 |
| Z axis rapid traverse | mmvmin | 6000 | 6000 | 6000 | 6000 | 6000 | 4000 | 4000 | 4000 |
| Tailstock quill diameter | mm | φ 120 | φ120 | φ120 | φ120 | φ120 | φ160 | φ160 | φ160 |
| Tailstock quill taper | MT6 | MT6 | MT6 | MT6 | MT6 | MT6 | MT6 | MT6 | |
| Tailstock quill travel | mm | 250 | 250 | 250 | 250 | 250 | 300 | 300 | 300 |
| Main spindle motor | kW | 15 | 15 | 22 | 22 | 22 | 22 | 22 | 22 |
| Coolant pump motor | kW | 0.125/0.37 | 0.125/0.37 | 0.125 | 0.125 | 0.125 | 0.125 | 0.125 | 0.125 |
| Width x Height | mm | 1930×1900 | 1930×1900 | 2050×2050 | 2050×2050 | 2050x2050 | 2050x2050 | 2050x2050 | 2050x2050 |
| Length | mm | 3600/4100/5600 | 3600/4100/5600 | 3950/4450 | 3950/4450 | 3950/4450 | 4950/6450 | 4950/6450 | 4950/6450 |
| Net weight | T | 6.0/6.5/7.5 | 6.2/6.7/7.7 | 8.1/8.3 | 8.9/9.1 | 8.9/9.1 | 10.5/12.2 | 12/12.5 | 11.5/13 |
Standard Configuration of CNC Oil Lathe
Siemens system
Optional Configurations
Fanuc, Guangji and KAENTI CNC systems, horizontal turret, fully enclosed protective cover
Products advantage
CNC pipe thread machining has the following advantages over traditional machining methods:
High precision: CNC machining can realize high-precision thread machining to ensure product quality and precision requirements.
High degree of automation: CNC machining can realize automatic production, reduce manual intervention and improve production efficiency.
High production efficiency: CNC machining is fast and stable, which can significantly improve production efficiency.
Repeatability: CNC machining can accurately control the processing parameters to ensure the consistency and stability of the processing results.
Strong adaptability: CNC machining can be adapted to different materials, different shapes of thread processing needs, flexibility.
Cost saving: Although the investment in CNC machining equipment is high, the overall production cost can be saved by improving production efficiency and reducing labor cost.
Products use
CNC pipe thread lathe is widely used in industrial production, mainly reflected in the following aspects:
Batch production: CNC pipe thread lathe is suitable for batch production demand, which can realize efficient and precise thread processing.
Diversified processing: CNC pipe thread lathe can process various types of threads, including internal threads, external threads, threads of different specifications and pitches.
High-precision requirements: For thread processing needs that require high precision, CNC pipe threading lathe can realize precise control to ensure product quality.
Automatic production: CNC pipe threading lathe is characterized by high degree of automation, which can reduce manual intervention and improve production efficiency.
Complex structure processing: CNC pipe threading lathe can cope with the demand of complex structure thread processing and realize multi-axis linkage and multi-function processing.
FAQ
Q: How to guarantee machine quality?
A: (1)The key parts of the machine comes from China top or world well known manufacturer, such bearing, hydraulic system, lead screws.
(2)Processing equipment imported from USA, Europe or China top manufacturer
(3)Testing device imported from Germany, USA.
(4)We own a professional design team using 2D and 3D design methods.
(5)We own a professional production team
Q: Can we do OEM for you?
A: Yes
Q: Can I change the voltage as per the customer’s needs?
A: Yes
Q: Pre-acceptance
A: (1)Welcome your visit for inspection
(2)Taking inspection videos and providing a testing report
Q: Installation and training:
A: Installation:
(1)Have a high-skilled and high-quality installation and commissioning team;
(2)Take the initiative to provide customers with the bill of materials that the customer needs to prepare when the machine tool is installed before the machine tool is shipped;
(3)Engineering will install the machine and do training on site
(4)Installation guide and video are provided for installation if the machine is delivered as a whole machine
(5)Live video can be connected with you to guide customer to install it
(6)Provide timely and professional installation and commissioning services for Starfish machinery Training
(7)After installation, guide the user on correctly using the machine.
(8)User’s manual is supplied.
