Advantages of Double Column Vertical Lathes

Double column vertical lathes are high-precision machine tools used to process large, heavy workpieces. Their structure and design give them significant advantages in specific scenarios, especially in heavy machinery manufacturing, energy, metallurgy, aerospace, and other industries. The following is a detailed analysis of their core advantages:

1. High load-bearing capacity, suitable for heavy-duty workpiece processing

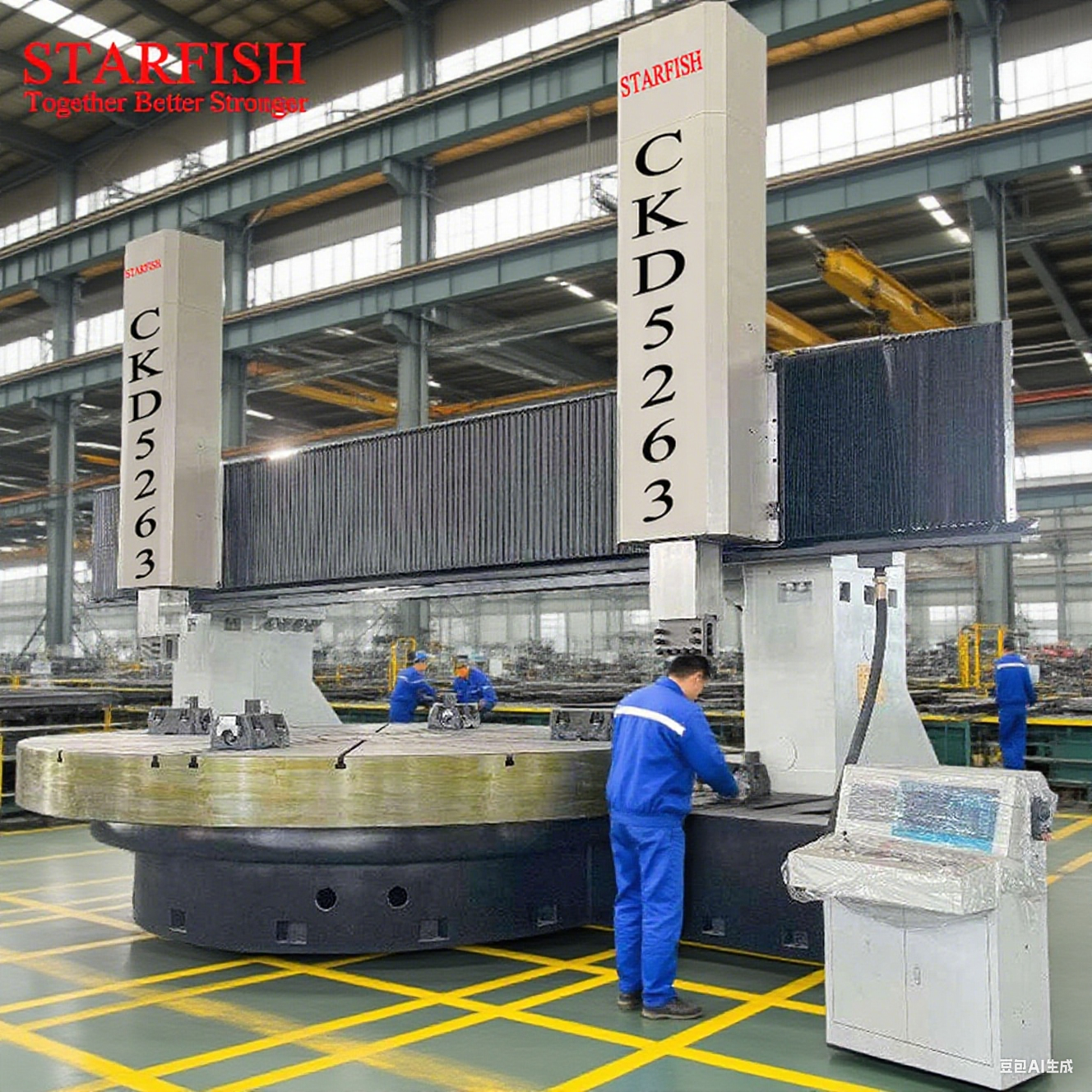

Structural stability: Featuring a double-column frame structure paired with a large circular worktable (diameter typically ranging from 1 meter to several meters), the machine boasts high overall rigidity, enabling it to stably support heavy-duty workpieces weighing several tons or even dozens of tons (such as large flanges, gears, turbine cylinder bodies, etc.).

Deformation resistance: The bed and columns are primarily made of high-strength cast iron or welded structures, undergo stress-relief treatment to eliminate internal stresses, and are unlikely to deform during machining due to workpiece weight or cutting forces, ensuring machining accuracy.

II. Wide processing range, suitable for large workpiece shapes

Large-diameter workpiece processing: The worktable is vertically arranged, with the workpiece placed horizontally, enabling direct processing of large-diameter disk-type, sleeve-type, or housing-type workpieces (such as rollers, generator rotor end covers, etc.) with diameters far exceeding those of horizontal lathes, without requiring additional fixtures for fixation.

Complex surface machining: The CNC-equipped double-column vertical lathe can achieve integrated machining of complex processes such as outer circles, inner holes, end faces, tapered surfaces, and arcs through multi-axis interpolation, reducing the number of workpiece clamping operations.

III. High machining accuracy and strong stability

Guiding accuracy: The dual columns are symmetrically distributed, ensuring uniform force distribution when the crossbeam moves along the column guideways. This minimizes displacement errors caused by unilateral force, guaranteeing the straightness and perpendicularity of the tool's movement trajectory.

Repeat positioning accuracy: Equipped with high-precision ball screws, servo drive systems, and optical encoder feedback devices, it achieves micron-level positioning, meeting the processing requirements for high-precision parts (such as the flatness and perpendicularity requirements for precision flanges).

4. User-friendly operation and high safety

Easy workpiece loading/unloading: Workpieces are directly placed on the worktable and can be loaded/unloaded using a crane or forklift, eliminating the need to pass long workpieces through the spindle as in horizontal lathes, making it particularly suitable for handling large and heavy workpieces.

User-friendly human-machine interface: The control panel is at an appropriate height, allowing operators to visually monitor the machining process and adjust parameters in real time; some models are equipped with safety guards and automatic chip removal devices to enhance operational safety.

5. High production efficiency, suitable for batch or single-piece large workpiece processing

Process concentration: Multiple processes (such as turning, boring, drilling, etc.) can be completed in a single setup, reducing workpiece turnaround time. This is particularly suitable for the production of large workpieces in single-piece or small-batch quantities.

High-power cutting: The spindle delivers high torque, enabling the use of large cutting parameters (such as high feed rates and deep cutting depths) to quickly remove material from the workpiece and shorten the processing cycle.

6. Strong customization capabilities to meet special requirements

Parameters such as worktable diameter, load capacity, and spindle speed range can be customized according to user requirements, and different types of tool holders (such as vertical tool holders, side tool holders, and boring tool holders) can be selected to accommodate diverse machining scenarios (such as irregular parts and large molds).

Summary

The core advantages of the double-column vertical lathe lie in its “high load capacity, wide range, and high precision,” particularly in the machining of large and heavy workpieces, where it holds an irreplaceable position. Its structural design and performance characteristics enable it to balance machining efficiency and precision, making it a critical piece of equipment for achieving precise machining of large parts in heavy manufacturing.
